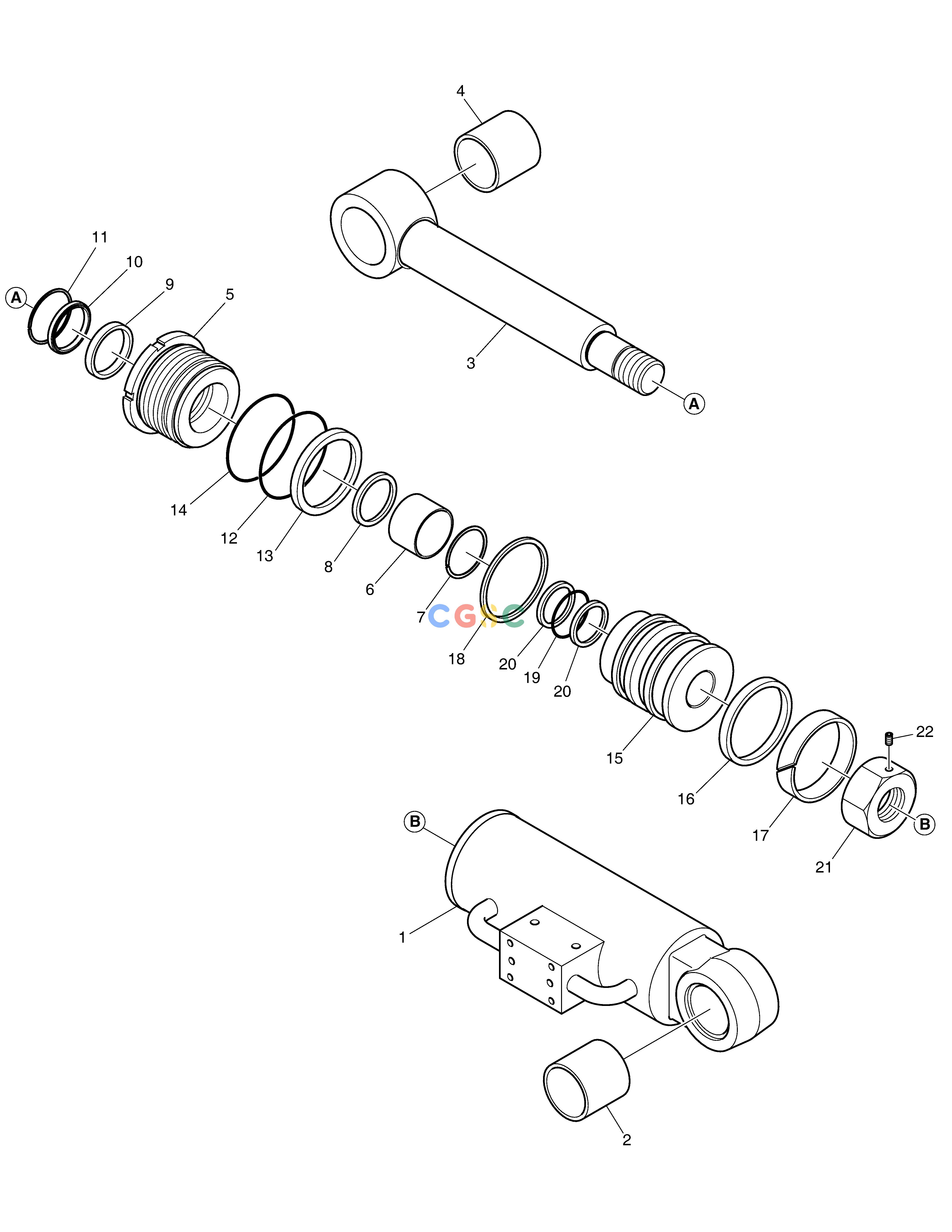

斗山零件查询DOZER CYLINDER E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
143 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01274
|
[1] |
|
|
| -. |
400312-00052
|
[1] |
|
|
| 1. |
K9006327
|
[1] |
TUBE ASS'Y
|
|
| 10. |
115-00107
|
[1] |
WIPER;DUST
|
|
| 11. |
115-00104
|
[1] |
RING,RETAINING
|
|
| 12. |
S8011051
|
[1] |
O-RING
|
|
| 13. |
1.180-00225
|
[1] |
RING;BACK UP
|
|
| 14. |
S8011101
|
[1] |
O-RING
|
|
| 15. |
130602-00949
|
[1] |
PISTON
|
|
| 16. |
180-00255
|
[1] |
SEAL;SLIPPER
|
|
| 17. |
1.180-00383
|
[1] |
RING;WEAR
|
|
| 18. |
1.180-00633
|
[1] |
RING;DUST
|
|
| 19. |
S8010601
|
[1] |
O-RING 1BG-60
|
|
| 2. |
K9006331
|
[1] |
BUSH;STEEL
|
|
| 20. |
111102-00092
|
[2] |
RING,BACK UP
|
|
| 21. |
1.121-00063A
|
[1] |
NUT,PISTON
|
|
| 22. |
S3523738
|
[1] |
SCREW;SET
|
|
| 3. |
400337-00428
|
[1] |
|
|
| 4. |
K9006331
|
[1] |
BUSH;STEEL
|
|
| 5. |
K9006329
|
[1] |
COVER;ROD
|
|
| 6. |
110-00114
|
[1] |
BUSH;DU
|
|
| 7. |
1.115-00059
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00470
|
[1] |
SEAL;BUFFER
|
|
| 9. |
1.180-00221
|
[1] |
U-PACKING
|
|
