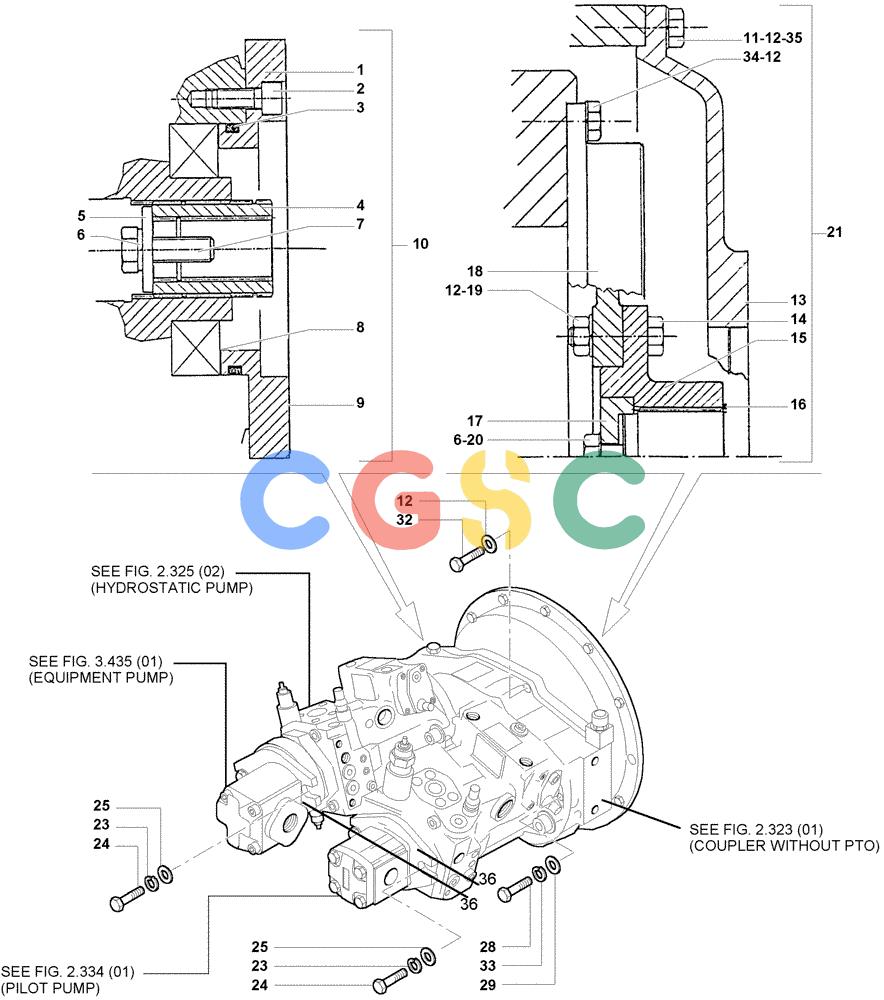

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (2.325[01D]) - HYDROSTATIC DRIVE PUMPS WITHOUT PTO - DC80 STD. FROM S/N 13141002 TO S/N 13141013 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590936 | [1] | SUPPORT | MAC |
| 2. | 76590937 | [4] | SCREW | MAC Superseded by part number: 86625209 |
| 3. | 76590938 | [1] | O-RING | MAC Superseded by part number: 70923601 |
| 4. | 76593669 | [1] | HUB | MAC |
| 5. | 76590940 | [1] | LOCK WASHER | MAC |
| 6. | 76590727 | [2] | WASHER | MAC Superseded by part number: 412123 |
| 7. | 76590942 | [1] | SCREW | MAC Superseded by part number: 9706729 |
| 8. | 76590943 | [3] | ADJUSTER | MAC Superseded by part number: 76591434 |
| 9. | 76590944 | [1] | GASKET | MAC |
| 10. | 76590945 | [2] | ADAPTER | MAC |
| 11. | 76590946 | [10] | SCREW | LEC |
| 12. | 76598283 | [34] | LOCK WASHER | MAC Superseded by part number: 11198374 |
| 13. | 76590948 | [1] | HOUSING | MAC |
| 14. | 76590949 | [8] | SCREW | MAC Superseded by part number: 120112 |
| 15. | 76590950 | [1] | FLANGE | MAC |
| 16. | 76590951 | [1] | SNAP RING | MAC |
| 17. | 76593670 | [1] | RETAINER | MAC |
| 18. | 76590953 | [1] | COUPLING | MAC |
| 19. | 76590954 | [12] | NUT | MAC Superseded by part number: 86500689 |
| 20. | 76590781 | [1] | SCREW | MAC Superseded by part number: 615-12035 |
| 21. | 76590956 | [1] | PTO | MAC |
| 22. | 76590957 | [1] | SMALL PUMP | MAC |
| 23. | 76590958 | [4] | LOCK WASHER | MAC Superseded by part number: 10571873 |
| 24. | 76590959 | [4] | SCREW | MAC Superseded by part number: 615-12035 |
| 25. | 76590728 | [4] | WASHER | MAC Superseded by part number: 895-11012 |
| 26. | 76590961 | [1] | HYDRAULIC PUMP | MACFULE PUMP FROM S/N 13141002 |
| 27. | 76601235 | [2] | HYDRAULIC PUMP | MACPUMP ASSY SEE TAV.2 FROM S/N 13141002 |
| 28. | 76590963 | [4] | SCREW | MAC Superseded by part number: 14426224 |
| 29. | 76606133 | [4] | LOCK WASHER | MAC(ORDER HEAVY DUTY WASHER # 76609827) |
| 32. | 76590835 | [6] | SCREW | MAC Superseded by part number: 120068 |
| 33. | 76605593 | [4] | LOCK WASHER | MAC(DO NOT USE WITH HEAVY DUTY WASHER) Superseded by part number: 10517274 |
| 34. | 76595992 | [8] | SCREW | MAC Superseded by part number: 88206 |
| 35. | 76590719 | [2] | SCREW | MAC Superseded by part number: 9706704 |
| 36. | 70935905 | [2] | SEALING RING,-248, Cl 8, 4.734" ID x .139" Thk | CMI Superseded by part number: 4897111 |
