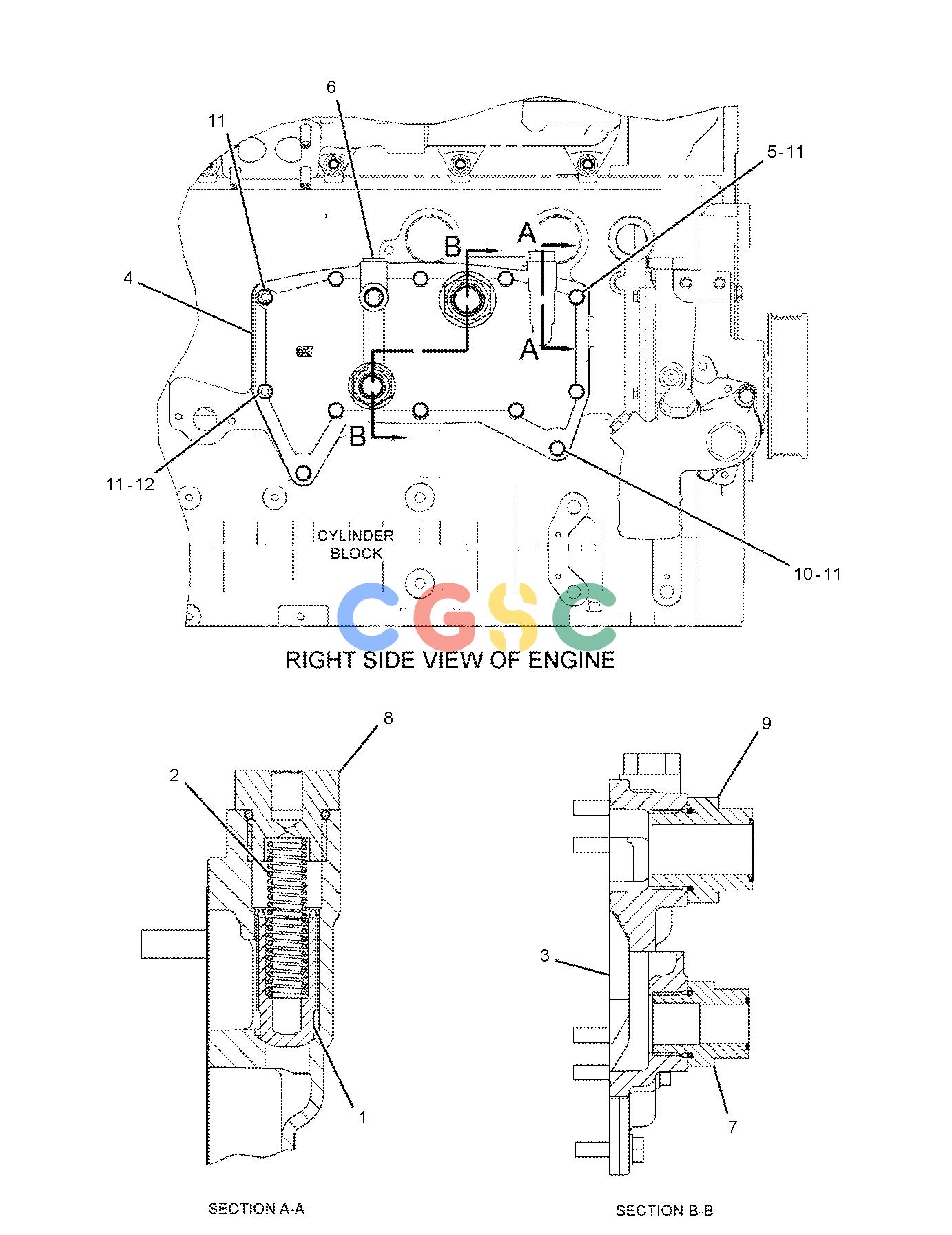

卡特零件查询（725C2） 344-5154: BASE GP-OIL FILTER
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-1493 | [1] | VALVE AS-BYPASS | |
| 2. | 242-3864 | [1] | SPRING | |
| 3. | 209-7290 | [1] | GASKET | |
| 4. | 359-5999 | [1] | BASE | |
| 5. | 8T-0276M | [9] | BOLT(M8X1.25X45-MM) | |
| 6. | 398-5596 | [1] | PLUG AS | |
| | 360-3680 | [1] | PLUG | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 7. | 309-5137 | [1] | CONNECTOR AS | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 228-7093 | [1] | SEAL-O-RING | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 8. | 377-9593 | [1] | PLUG AS | |
| | 9N-6152 | [1] | PLUG | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 9. | 330-9754 | [1] | CONNECTOR AS | |
| | 8T-3611 | [1] | CONNECTOR | |
| | 228-7094 | [1] | SEAL-O-RING | |
| | 228-7096 | [1] | SEAL-O-RING | |
| 10. | 6V-2317M | [2] | BOLT(M8X1.25X30-MM) | |
| 11. | 9M-1974 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 9X-2098M | [1] | STUD-TAPERLOCK(M8X1.25X45-MM) | |
| | M | | METRIC PART |
