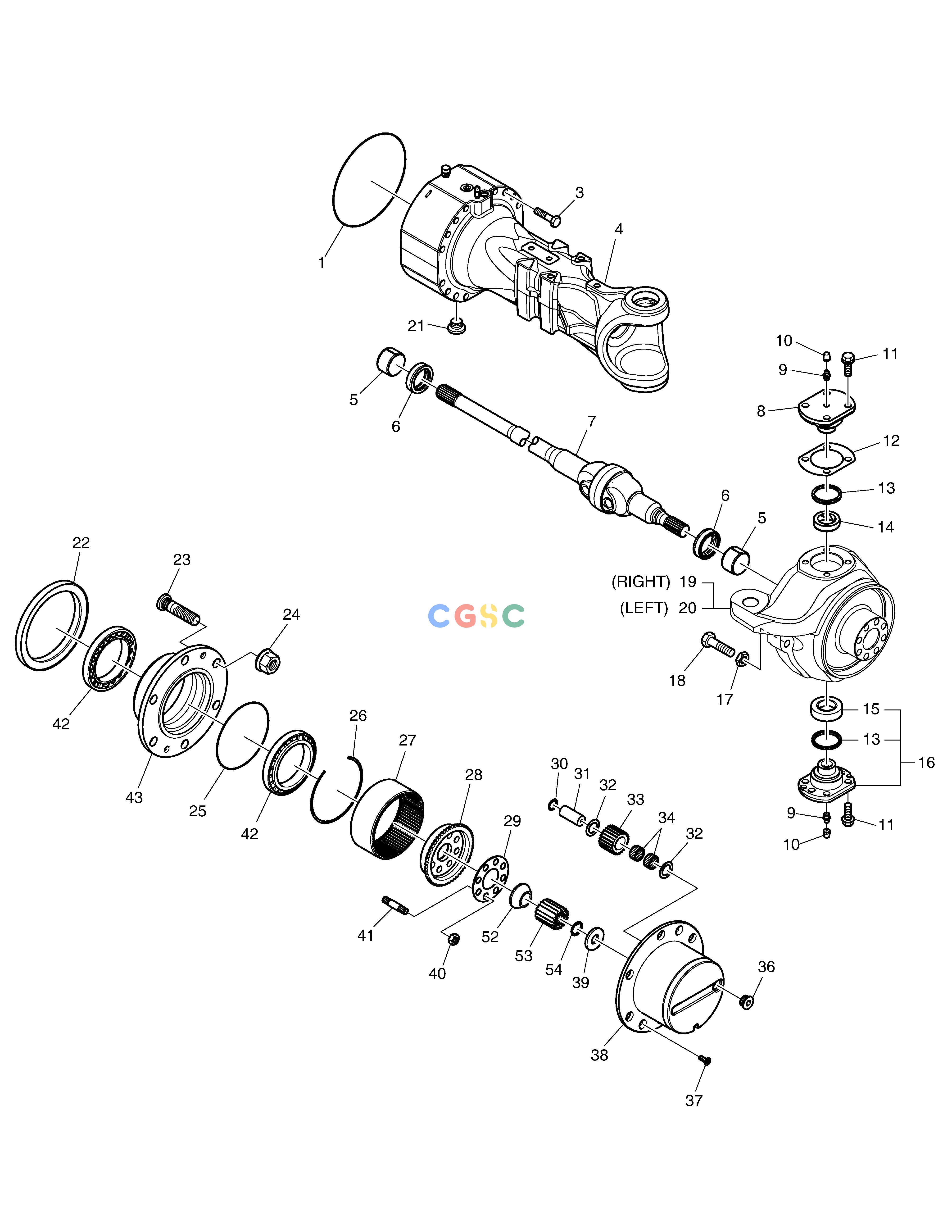

斗山零件查询FRONT AXLE(3) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
401002-00847
|
[2] |
|
|
| 10. |
2.181-00113
|
[4] |
PLUG
|
|
| 11. |
2.120-00106
|
[20] |
|
|
| 12. |
110947-00285
|
[2] |
|
|
| 12. |
110947-00286
|
[2] |
|
|
| 12. |
110947-00287
|
[2] |
|
|
| 13. |
401107-01267
|
[4] |
|
|
| 14. |
131002-00464
|
[2] |
|
|
| 15. |
131002-00465
|
[2] |
|
|
| 16. |
120501-02373
|
[2] |
|
|
| 17. |
2.121-00066
|
[4] |
|
|
| 18. |
2.120-00110
|
[4] |
|
|
| 19. |
110913-00223
|
[1] |
|
|
| 20. |
110913-00224
|
[1] |
|
|
| 21. |
430221-00714
|
[2] |
|
|
| 22. |
K9004352
|
[2] |
SEAL
|
|
| 23. |
2.317-00079
|
[12] |
|
|
| 24. |
2.121-00236
|
[12] |
NUT
|
|
| 25. |
2.180-01083
|
[2] |
RING
|
|
| 26. |
120402-00327
|
[2] |
|
|
| 27. |
130422-00061
|
[2] |
|
|
| 28. |
110958-01757
|
[2] |
|
|
| 29. |
250201-02165
|
[2] |
|
|
| 3. |
120112-01016
|
[32] |
|
|
| 30. |
120402-00328
|
[6] |
|
|
| 31. |
120501-02374
|
[6] |
|
|
| 32. |
120808-00598
|
[12] |
|
|
| 33. |
130413-00034
|
[6] |
|
|
| 34. |
140104-00081
|
[12] |
|
|
| 36. |
430221-00717
|
[2] |
|
|
| 37. |
K9006381
|
[4] |
BOLT;CYLINDER
|
|
| 38. |
100502-00201
|
[2] |
|
|
| 39. |
2.114-00988
|
[2] |
|
|
| 4. |
110913-00222
|
[2] |
|
|
| 40. |
120304-00012
|
[16] |
|
|
| 41. |
120117-00124
|
[16] |
|
|
| 42. |
2.109-00285
|
[4] |
BEARING
|
|
| 43. |
900122-00096
|
[2] |
|
|
| 5. |
131002-00463
|
[2] |
|
|
| 52. |
110951-00835
|
[2] |
|
|
| 53. |
130425-00032
|
[3] |
|
|
| 54. |
120402-00329
|
[2] |
|
|
| 6. |
401107-01266
|
[4] |
|
|
| 7. |
430216-00233
|
[2] |
|
|
| 8. |
120501-02372
|
[2] |
|
|
| 9. |
2.181-00025
|
[4] |
FITTING;GREASE
|
|
