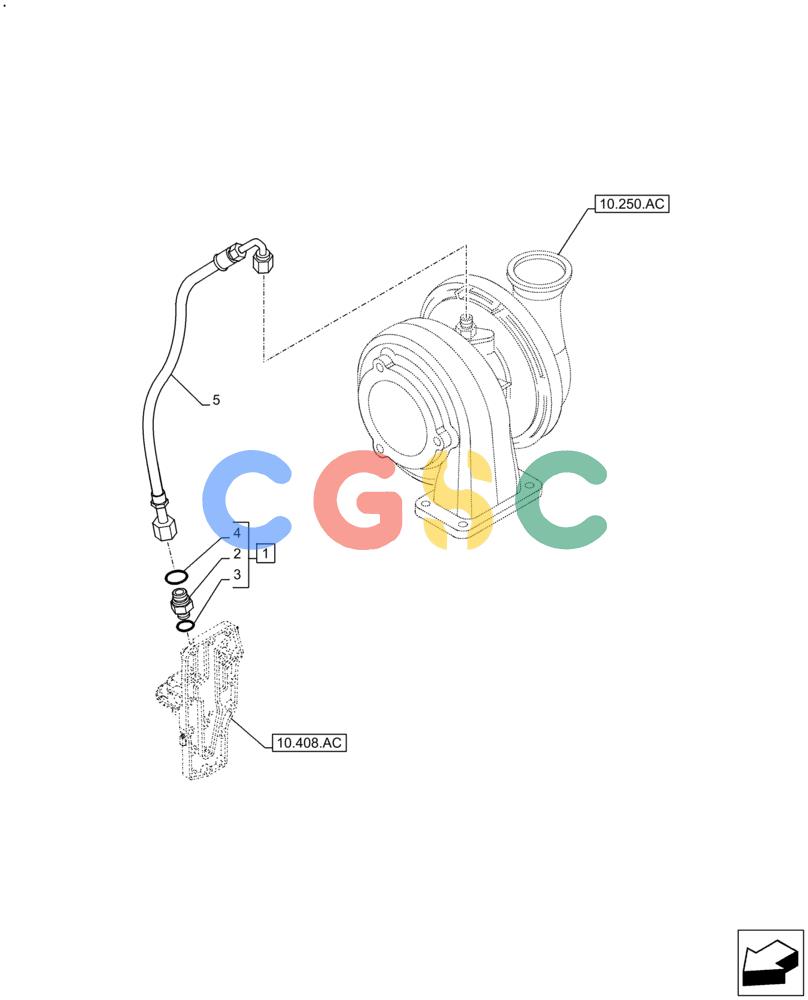

神钢零件查询(F4HFE413X B001) - ENGINE 5801910272 47446986 GRAPE HARVESTER 9050M / 9050 L T4B (10/14-12/15) (10.250.AD) - TURBOCHARGER LUBE LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2857015 | [1] | HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L | TORASSY, Incl 2 - 4 Superseded by part number: |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONUnion, Incl in 1 |
| 3. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 4. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
