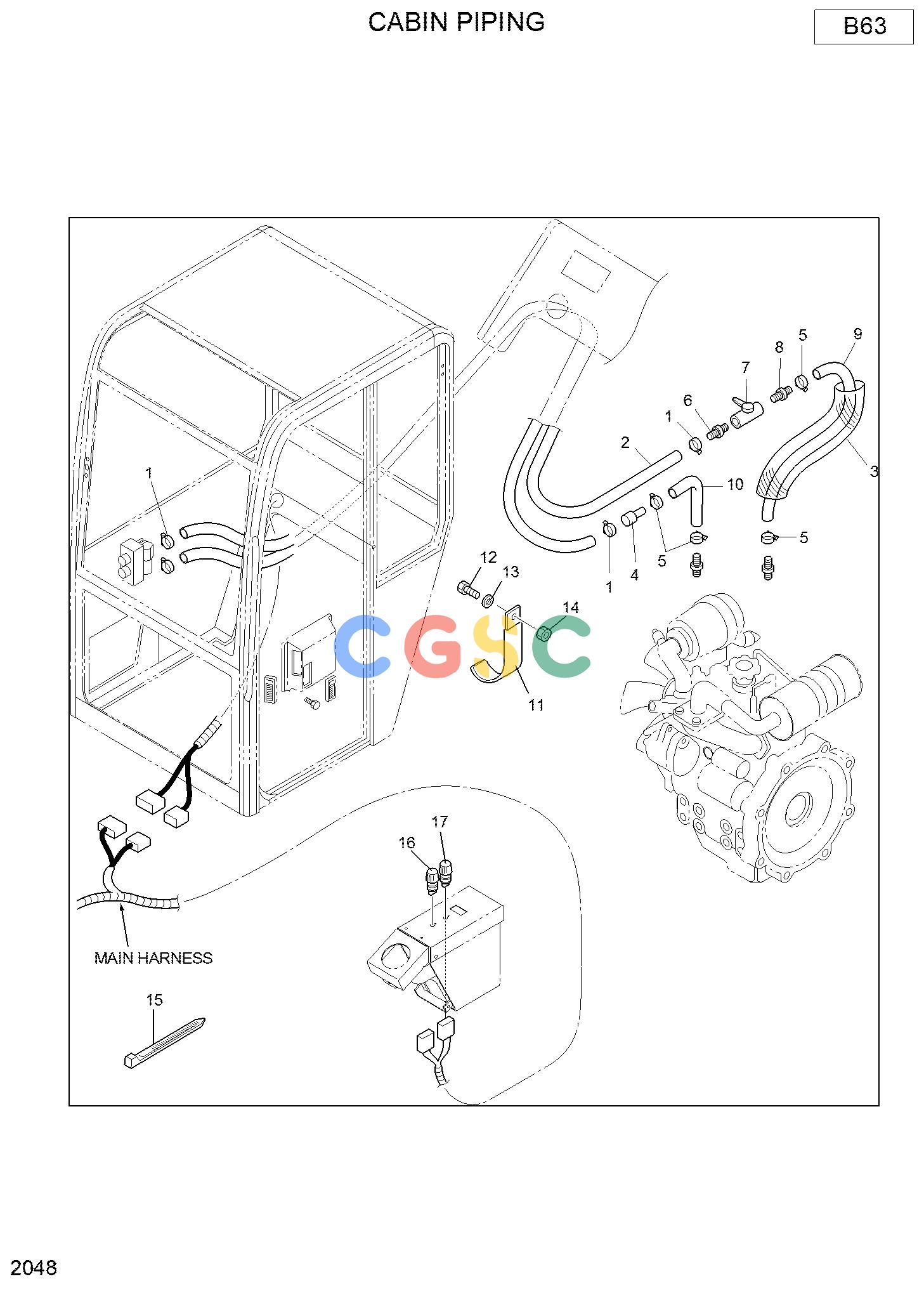

现代零件查询R16-7 CABIN PIPINGEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
681 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-00525
|
[4] |
BAND
|
|
| 2. |
XJDH-03001
|
[1] |
HOSE
|
|
| 3. |
XJDH-03916
|
[1] |
HOSE-VINYL
|
|
| 4. |
XJDH-00975
|
[1] |
NIPPLE-HOSE
|
|
| 5. |
XJDH-02942
|
[4] |
BAND
|
|
| 6. |
XJDH-00974
|
[1] |
NIPPLE-HOSE
|
|
| 7. |
XJDH-01019
|
[1] |
VALVE
|
|
| 8. |
XJDH-00973
|
[1] |
NIPPLE-HOSE
|
|
| 9. |
XJDH-03000
|
[1] |
HOSE
|
|
| 10. |
XJDH-02999
|
[1] |
HOSE
|
|
| 11. |
XJDH-01079
|
[2] |
PLATE-DEPPING
|
|
| 12. |
XJDH-00035
|
[1] |
BOLT
|
|
| 13. |
XJDH-00276
|
[2] |
WASHER
|
|
| 14. |
XJDH-00165
|
[1] |
NUT
|
|
| 15. |
XJDH-00707
|
[4] |
BAND-NYLON
|
|
| 16. |
XJDH-01001
|
[1] |
SWITCH-HEATER
|
|
| 17. |
XJDH-00998
|
[1] |
SWITCH-WIPER
|
|
