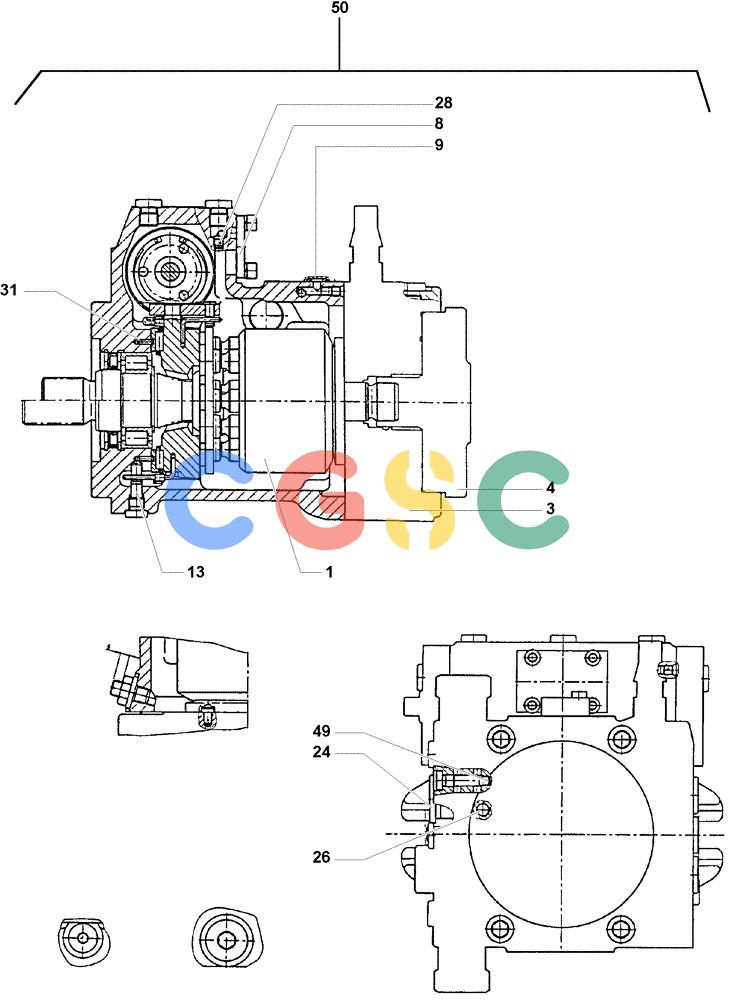

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (2.325[02B]) - HYDROSTATIC DRIVE PUMPS - HYDROSTATIC PUMP DC80 DOWN FROM S/N 13141001 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
518 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76593136 | [1] | HYDRAULIC PUMP | MAC |
| 3. | 76598486 | [1] | COVER | MACASSY. - FOR SERVICE COMPONENTS SEE FIG. 2.325 (03) |
| 3. | 76601236 | [1] | COVER | MACASSY. - FOR SERVICE COMPONENTS SEE FIG. 2.325 (03) |
| 4. | 76593141 | [1] | SUPPORT | MACASSY. - FOR SERVICE COMPONENTS SEE FIG. 2.325 (06) |
| 8. | 76593142 | [1] | COVER | MAC |
| 9. | 76593143 | [1] | COVER | MAC |
| 13. | 76593144 | [1] | PIN | MAC |
| 24. | 76593146 | [1] | SCREW | MAC |
| 26. | 76593147 | [1] | SCREW | MAC |
| 28. | 76593148 | [2] | DIAPHRAGM | MAC Superseded by part number: 87753562 |
| 31. | 76593149 | [2] | PIN | MAC |
| 49. | 76593150 | [1] | DIAPHRAGM | MAC |
| 50. | 76598484 | [1] | HYDRAULIC PUMP | MAC- HYDROSTATIC |
| 50. | 76601235 | [1] | HYDRAULIC PUMP | MACPUMP, HYDRAULIC - HYDROSTATIC |
