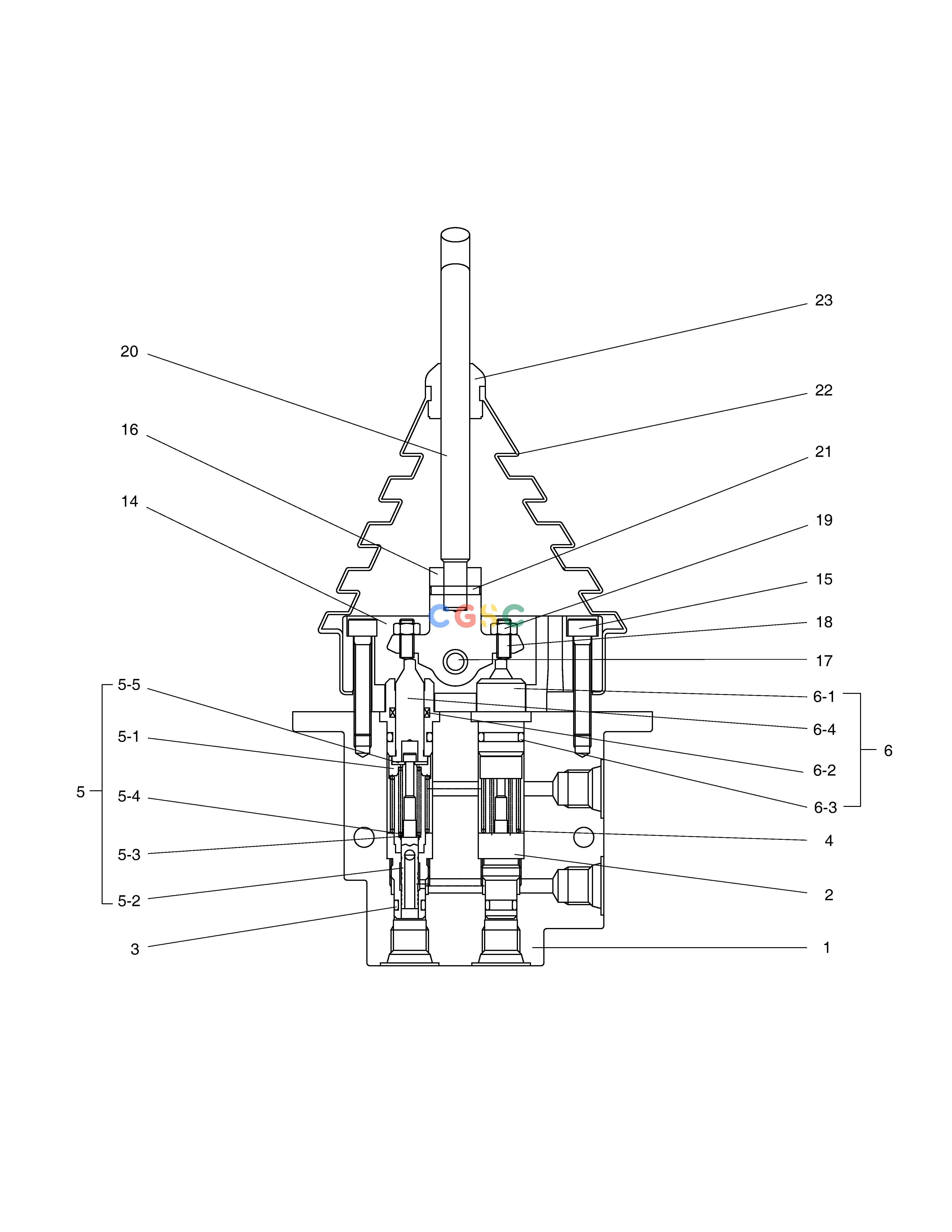

斗山零件查询JOYSTICK VALVE - DOZER E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1001 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001361
|
[1] |
SEAL KIT
|
|
| -. |
K1029454
|
[1] |
DOZER REMOCON VALVE
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 14. |
K9004289
|
[1] |
COVER
|
|
| 15. |
S2205361
|
[2] |
BOLT
|
|
| 16. |
1.429-00003
|
[1] |
GUIDE
|
|
| 17. |
K9004290
|
[1] |
PIN
|
|
| 18. |
1.120-00010
|
[2] |
BOLT
|
|
| 19. |
S4014233
|
[2] |
NUT
|
|
| 2. |
1.181-00055
|
[2] |
PLUG
|
|
| 20. |
1.357-00003
|
[1] |
LEVER
|
|
| 21. |
S5740530
|
[1] |
PIN;SPRING
|
|
| 22. |
K9001360
|
[1] |
BOOT
|
|
| 23. |
1.110-00170
|
[1] |
BUSHING
|
|
| 3. |
S8000081
|
[2] |
O-RING
|
|
| 4. |
K9000457
|
[2] |
SPRING
|
|
| 5. |
K9005899
|
[1] |
SPOOL KIT
|
|
| 5-1. |
NA01111
|
[2] |
. SEAT;SPRING
|
|
| 5-2. |
NA01161
|
[2] |
. SPOOL
|
|
| 5-3. |
429-00017
|
[2] |
SEAT;SPRING
|
|
| 5-4. |
K9000458
|
[2] |
SPRING
|
|
| 5-5. |
416-00008
|
[2] |
STOPPER
|
|
| 6. |
K9005900
|
[1] |
PLUG KIT
|
|
| 6-1. |
1.181-00056
|
[2] |
PLUG
|
|
| 6-2. |
1.180-00528
|
[2] |
SEAL;ROD
|
|
| 6-3. |
S8000141
|
[2] |
O-RING
|
|
| 6-4. |
1.428-00240
|
[2] |
ROD;PUSH
|
|
