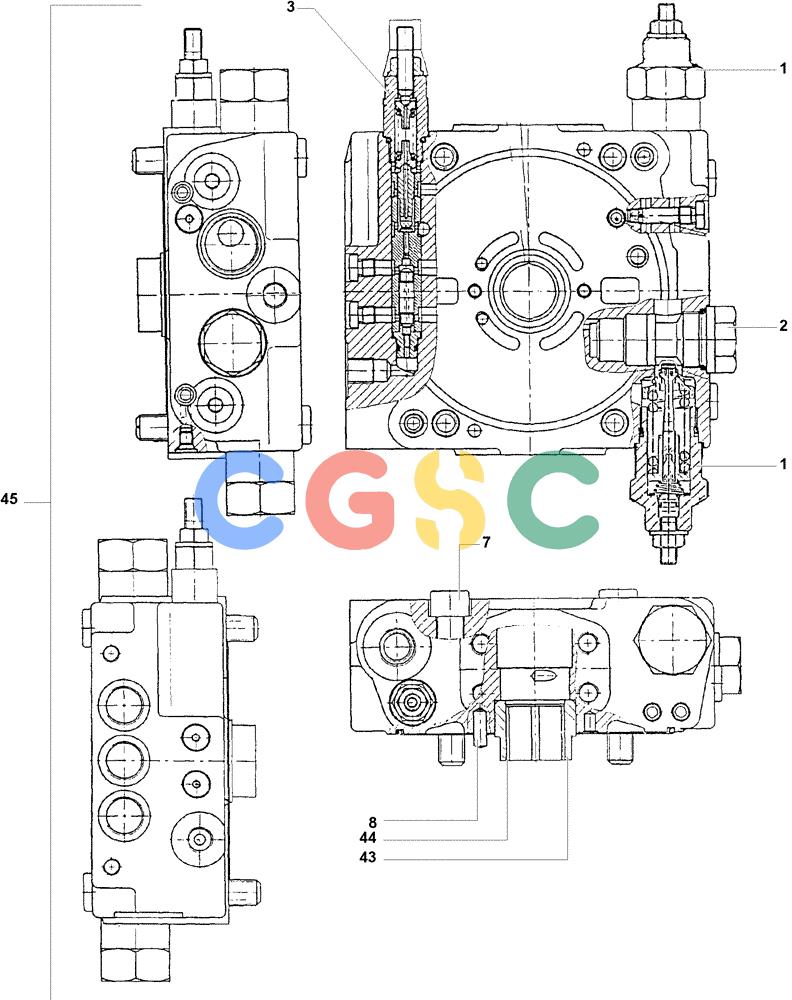

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (2.325[03B]) - HYDROSTATIC DRIVE PUMPS - COVER ASSY. DC80 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76593170 | [2] | HYDRAULIC VALVE | MAC- FOR SERVICE COMPONENTS SEE FIG. 2.325 (04) Superseded by part number: 47628177 |
| 2. | 76598485 | [1] | HYDRAULIC VALVE | MAC |
| 2. | 76601237 | [1] | HYDRAULIC VALVE | MACVALVE, HYDRAULIC |
| 3. | 76593176 | [1] | HYDRAULIC VALVE | MAC Superseded by part number: 47628174 |
| 7. | 76593178 | [4] | SCREW | MAC |
| 8. | 76593181 | [2] | PIN | MAC |
| 43. | 76593185 | [1] | BUSHING | MAC Superseded by part number: 1461943 |
| 44. | 76593188 | [1] | BUSHING | MAC |
| 45. | 76598486 | [1] | COVER | MACASSY. |
| 45. | 76601236 | [1] | COVER | MAC |
