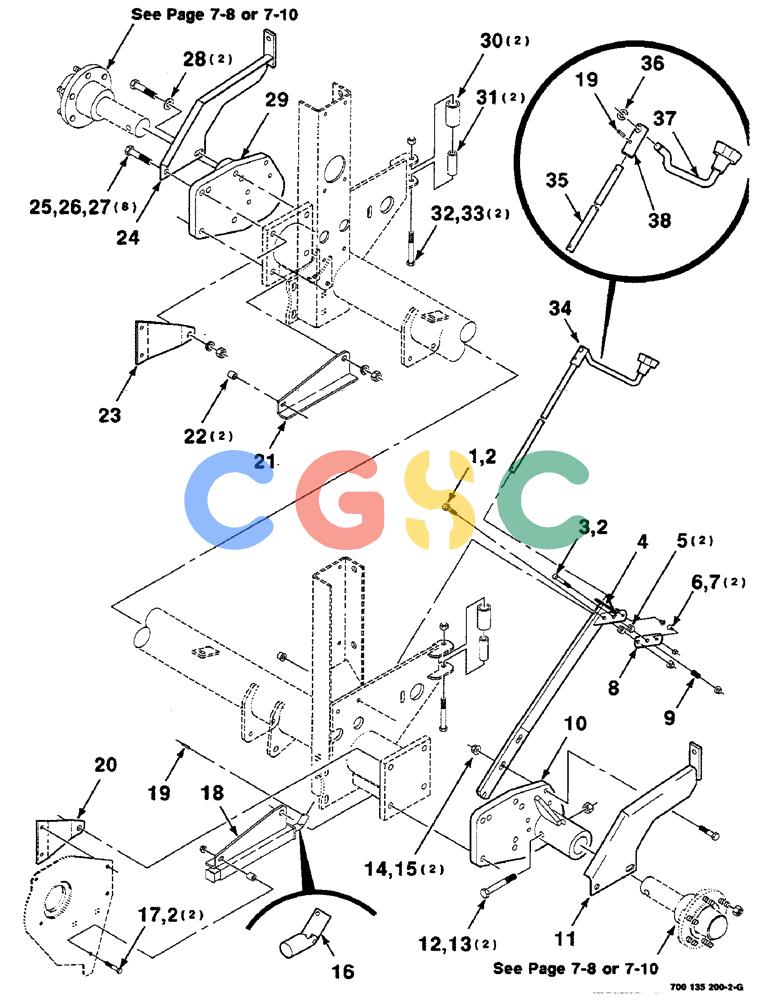

| 1. |
700711084
|
[1] |
BOLT
|
CAS
3/8-16 X 1-1/2 HFS GR8
|
| 2. |
704734
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 3. |
701888
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
|
CAS
3/8-16 X 2-1/4 C Superseded by part number: 87791064, 87791064, 87936
|
| 4. |
700135372
|
[1] |
SUPPORT
|
HFI
WA
|
| 5. |
6553804
|
[2] |
SPACER
|
HFI
|
| 6. |
7770142
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5
|
CAS
1/4-20 X 1/2 RHSNB Superseded by part number: 280700
|
| 7. |
1703354
|
[2] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 8. |
700150891
|
[1] |
PLATE
|
HFI
|
| 9. |
CAS758342
|
[1] |
SPRING
|
CAS
- compression
|
| 10. |
700135359
|
[1] |
PLATE
|
HFI
WA - left (16 Inch)
|
| . . |
700135840
|
[1] |
PLATE
|
HFI
WA - left (15 Inch)
|
| 11. |
700150892
|
[1] |
SUPPORT
|
HFI
WA - left
|
| 12. |
873745
|
[2] |
BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5
|
CAS
5/8-11 X 4-1/2 C Superseded by part number: 280183
|
| 13. |
704924
|
[2] |
NUT
|
CAS
5/8-11 HTLN GR/B Superseded by part number: 85700693
|
| 14. |
703512
|
[2] |
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
|
CAS
1/2-13 X 2-1/4 C Superseded by part number: 413-836, 413-836, 70924864
|
| 15. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 16. |
700715754
|
[1] |
JOINT
|
CAS
UNIVERSAL JOINT Superseded by part number: 700728184
|
| 17. |
7701634
|
[2] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
CAS
3/8-16 X 2 C Superseded by part number: 88436
|
| 18. |
700716093
|
[1] |
JACK
|
CAS
- assembly (Includes item 16) Superseded by part number: 87741929
|
| 19. |
863761
|
[2] |
PIN, GROOVED
|
CAS
3/16 X 7/8 GROOVE PIN Superseded by part number: 435-7614
|
| 20. |
700135377
|
[1] |
SUPPORT
|
HFI
- left Superseded by part number: 700159597
|
| 21. |
700135374
|
[1] |
ANGLE
|
HFI
- right
|
| 22. |
6869382
|
[2] |
SPACER
|
HFI
|
| 23. |
700135378
|
[1] |
SUPPORT
|
HFI
- right
|
| 24. |
700135868
|
[1] |
SUPPORT
|
HFI
WA - right
|
| 25. |
7701683
|
[8] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
5/8-11 X 3 C Superseded by part number: 87338
|
| 26. |
705061
|
[8] |
PLUG
|
NNA
5/8" Superseded by part number: 492-11062
|
| 27. |
704130
|
[8] |
NUT,5/8"-11, G5
|
CAS
5/8-11 H Superseded by part number: 280374
|
| 28. |
705582
|
[2] |
WASHER
|
CAS
5/8 HARDENED PLAIN WASHER Superseded by part number: 396-21066, 396-21066, NLS
|
| 29. |
700135360
|
[1] |
PLATE
|
HFI
WA - right (16 Inch)
|
| . . |
700135841
|
[1] |
PLATE
|
HFI
WA - right (15 Inch)
|
| 30. |
700132293
|
[2] |
TUBE,38.1 mm OD, 66 mm Length
|
HFI
- roller Superseded by part number: 700155971
|
| 31. |
6250351
|
[2] |
SPACER
|
HFI
|
| 32. |
702217
|
[2] |
SHIELD
|
NNA
1/2-13 X 4 C Superseded by part number: 413-864
|
| 33. |
704858
|
[2] |
LOCK NUT
|
CAS
1/2-13 HTLN GR/B Superseded by part number: 230-4118
|
| 34. |
700715760
|
[1] |
CRANK
|
CAS
- assembly (Includes items 19, 37, 38, 39 and 40)
|
| 35. |
700132317
|
[1] |
CRANK
|
CAS
ROD - crank Superseded by part number: 700715760
|
| 36. |
51200194
|
[1] |
RETAINER
|
CAS
RING - retaining
|
| 37. |
700715780
|
[1] |
HANDLE
|
CAS
Superseded by part number: 700715760
|
| 38. |
700132516
|
[1] |
TUBE
|
HFI
Superseded by part number: 700715760
|
