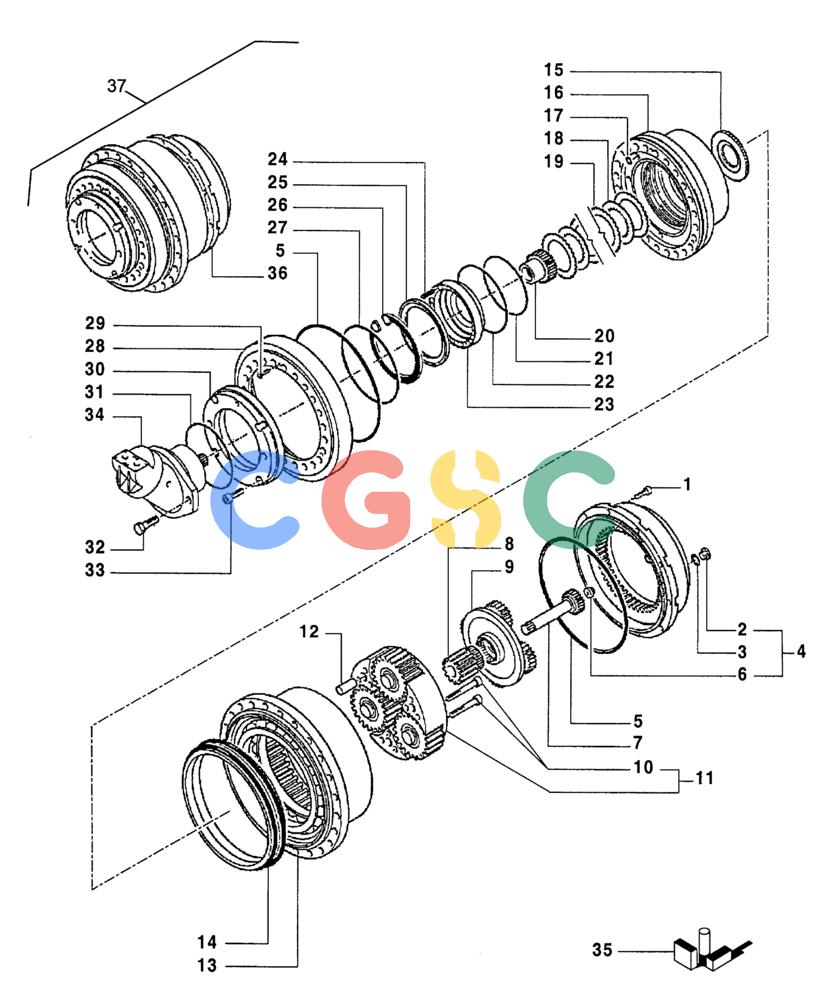

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (2.329[01B]) - TRAVEL REDUCTION UNITS DC80 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
129 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590781 | [10] | SCREW | MAC Superseded by part number: 615-12035 |
| 2. | 76592969 | [2] | PLUG | MAC |
| 3. | 76592970 | [2] | WASHER | MAC |
| 4. | 76592971 | [1] | COVER | MAC |
| 5. | 76592455 | [2] | O-RING | MAC Superseded by part number: 87562133 |
| 6. | 76592972 | [1] | DISC | MAC Superseded by part number: 47046048 |
| 7. | 76592456 | [1] | SHAFT | MAC |
| 8. | 76592457 | [1] | PLANETARY GEAR | MAC |
| 9. | 76592458 | [1] | PLANET CARRIER | MAC |
| 10. | 76592973 | [9] | SCREW | MAC |
| 11. | 76592459 | [1] | GEAR | MAC |
| 12. | 76592974 | [3] | PIN | MAC |
| 13. | 76592975 | [1] | BODY | MAC Superseded by part number: 76598195 |
| 14. | 76592460 | [1] | GASKET | MAC |
| 15. | CLUTCH | [1] | CLUTCH | NH Superseded by part number: 76592461 |
| 16. | 76592978 | [1] | SHAFT | MAC Superseded by part number: 71482204 |
| 17. | 76592977 | [1] | O-RING | MAC |
| 18. | DISC | [5] | DISC | FOR Superseded by part number: 76592462 |
| 19. | 76592463 | [6] | DISC | MAC |
| 21. | 76592464 | [1] | O-RING | MAC |
| 22. | 76592465 | [1] | O-RING | MAC |
| 23. | 76592979 | [1] | PISTON | MAC |
| 24. | 76592980 | [18] | SPRING | MAC |
| 25. | 76592981 | [1] | SPRING | MAC |
| 26. | 76592982 | [1] | RING | MAC |
| 27. | 76592466 | [1] | O-RING | MAC Superseded by part number: 71483163 |
| 28. | 76592983 | [1] | COVER | MAC |
| 29. | 76592984 | [3] | SCREW | MAC |
| 30. | 76592985 | [1] | FLANGE | MAC |
| 31. | 76606820 | [1] | O-RING | MAC |
| 32. | 76592986 | [2] | SCREW | MAC |
| 33. | 76592987 | [4] | SCREW | MAC |
| 34. | 76593034 | [2] | HYDRAULIC MOTOR | MAC- MOTOR ASSY. - SEE FIG. 2.329 (02) FOR PARTS |
| 35. | 76592468 | [1] | KIT | MAC Superseded by part number: 76592465, 76592464, 76592466, 76592460, 76592467, 76592455, 76592977 |
| 36. | 76598195 | [2] | GEAR REDUCTION UNIT | MACREDUCTION ASSY. - INCLUDES REFS. 1 - 33 |
| 37. | 76590797 | [2] | HYDRAULIC MOTOR | MACASSY. - INCLUDES REFS. 34 & 36 |
