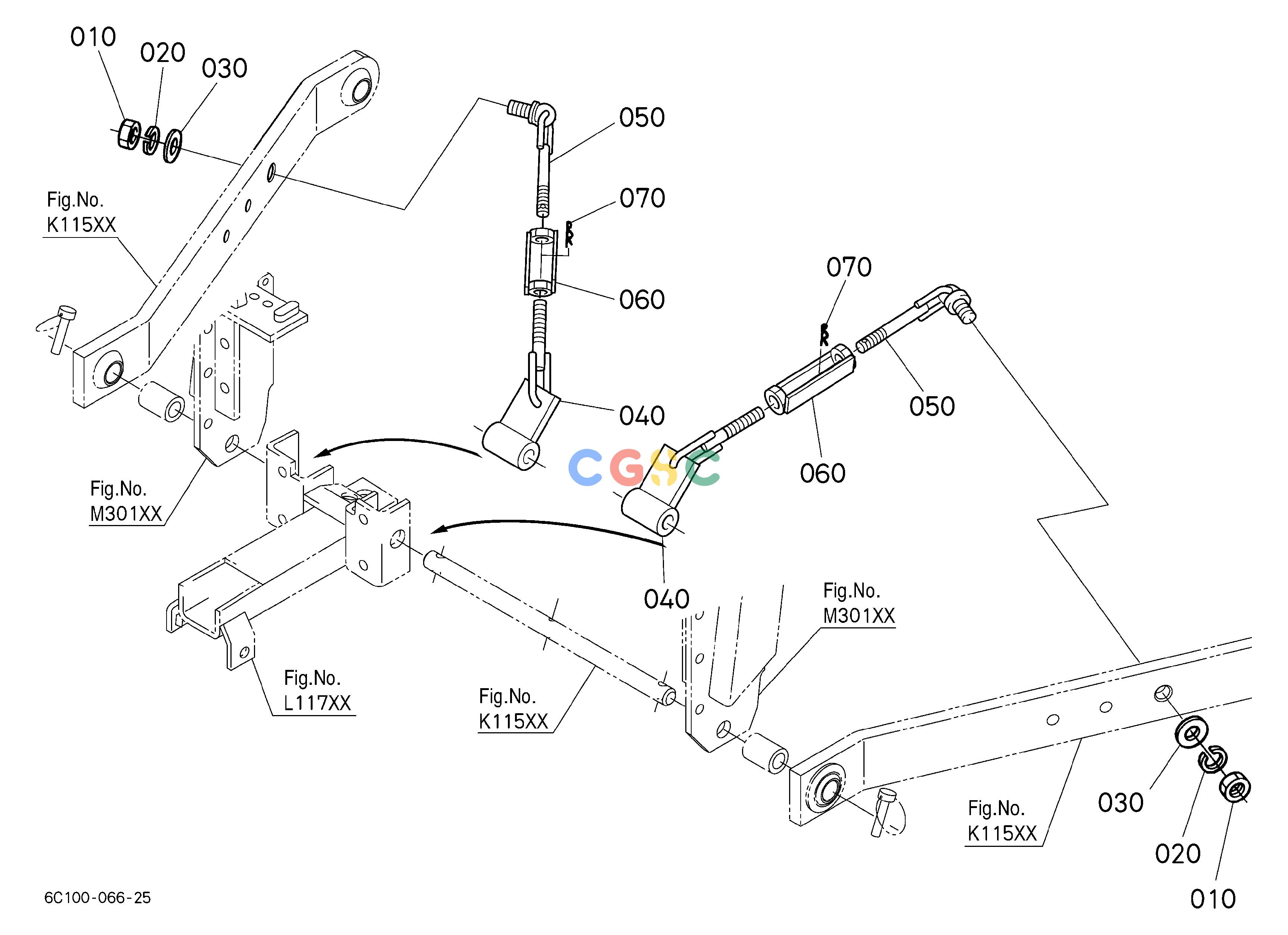

久保田零件查询K12500 CHECK CHAIN TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
917 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0217450160
|
[2] |
HEX.NUT
|
0.0484(lbs); 0.022
|
| 010. |
0217650160
|
[2] |
HEX.NUT
|
0.0462(lbs); 0.021
|
| 020. |
0451250160
|
[2] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
| 030. |
0401550160
|
[2] |
WASHER,PLAIN
|
0.1232(lbs); 0.056
|
| 040. |
6C04065294
|
[2] |
BRACKET,CHECK CHAIN
|
1.1880(lbs); 0.540
|
| 050. |
6C04065323
|
[2] |
BOLT,TURNBUCKLE
|
0.7700(lbs); 0.350
|
| 050. |
6C04065324
|
[2] |
BOLT,TURNBUCKLE
|
0.7700(lbs); 0.350
|
| 060. |
6C04065390
|
[2] |
TURNBUCKLE
|
0.4400(lbs); 0.200
|
| 070. |
0551551200
|
[2] |
PIN SNAP
|
0.0066(lbs); 0.003
|
