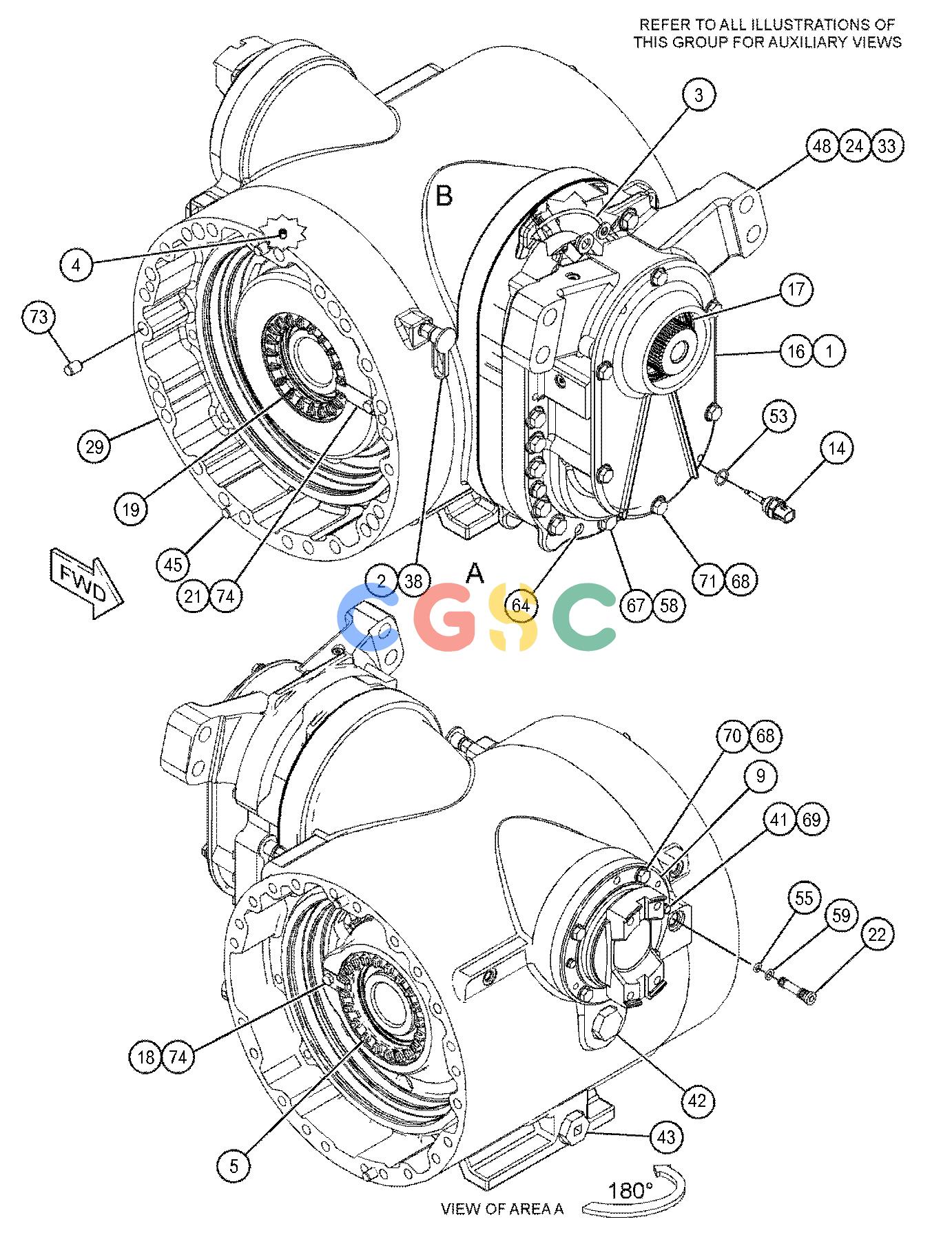

卡特零件查询（725C2） 493-2482: DIFFERENTIAL & BEVEL GEAR GP
广数供应链运营团队, 15 02月, 2025，浏览：
556 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2D-9572 | [1] | SEAL-O-RING | |
| 2. | 6V-0852 | [2] | CAP-DUST | |
| 3. | 6V-3263 | [1] | SEAL-O-RING | |
| 4. | 9G-9506 | [2] | PLUG | |
| 5. | 9U-3045 | [1] | NUT-BEARING | |
| 6. | 030-0060 | [1] | CUP-BEARING | |
| 7. | 138-1498 | [1] | SHAFT | |
| 8. | 138-3628 | [1] | SPACER(79X103X16.4-MM THK) | |
| 9. | 138-4117 | [1] | RETAINER-BEARING | |
| 10. | 138-4121 | [1] | CAGE-BEARING | |
| 11. | 152-5464 | [1] | GEAR(33-TEETH) | |
| 12. | 168-8410 | [1] | GEAR AS(33-TEETH) | |
| | 4K-0149 | [1] | PLUG-CUP | |
| | 147-6791 | [1] | GEAR | |
| 13. | 194-7819 | [1] | SPACER(76.5X87X4-MM THK) | |
| 14. | 256-6453 | [1] | SENSOR-TEMPERATURE(2-PIN) | |
| 15. | 486-5000 | [1] | NUT | |
| 16. | 290-4649 | [1] | RETAINER-SEAL | |
| 17. | 293-4503 | [2] | SEAL-LIP TYPE | |
| 18. | 297-3211 | [1] | LOCK-BEARING | |
| 19. | 304-3750 | [1] | NUT-ADJUSTING | |
| 20. | 308-6003 | [1] | YOKE AS | |
| | 132-0920 | [1] | GUARD | |
| 21. | 314-3412 | [1] | LOCK-BEARING | |
| 22. | 351-2548 | [1] | TUBE | |
| 23. | 486-5013 | [1] | GEAR SET-BEVEL | |
| 24. | 495-8245 | [1] | CASE AS | |
| | 385-1758 | [1] | CASE AS | |
| | 6V-5230M | [3] | BOLT(M10X1.5X60-MM) | |
| | 6V-5839 | [3] | WASHER(11X21X2.5-MM THK) | |
| 25. | 392-1740Y | [1] | DIFFERENTIAL GP | |
| 26. | 390-7009 | [1] | CAGE | |
| 27. | 397-8818 | [4] | SHIM(0.08-MM THK) | |
| 28. | 397-8819 | [5] | SHIM(0.12-MM THK) | |
| 29. | 488-3749 | [1] | HOUSING AS | |
| | 095-0673M | [4] | BOLT-SOCKET HEAD(M12X1.75X60-MM) | |
| 30. | 397-8822 | [1] | SHIM(0.92-MM THK) | |
| 31. | 417-0609 | [1] | SHROUD | |
| 32. | 417-0613 | [1] | SHROUD | |
| 33. | 393-7363 | [1] | SHIM-PACK | |
| | | | (INCLUDES 11 SHIMS) |
| 36. | 5L-4753 | [1] | RING-RETAINING | |
| 37. | 030-0061 | [1] | CONE-BEARING | |
| 38. | 110-6349 | [2] | FITTING AS(QUICK DISCONNECT) | |
| 39. | 141-8891 | [2] | CONE-BEARING | |
| 40. | 141-8892 | [2] | CUP-BEARING | |
| 41. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 42. | 164-4180 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 43. | 165-4929 | [1] | PLUG AS-MAGNETIC | |
| | 5P-4484 | [1] | PLUG-MAGNETIC | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 44. | 196-7243 | [1] | LOCKNUT AS(2.75X18-THD) | |
| | 198-0050 | [4] | SETSCREW(1/4-28X0.37-IN) | |
| 45. | 117-1801 | [4] | DOWEL | |
| 46. | 1J-2860 | [1] | CUP-BEARING | |
| 47. | 1J-4757 | [1] | CONE-BEARING | |
| 48. | 5P-2861 | [1] | SEAL-O-RING | |
| 49. | 287-8326 | [30] | BOLT(1/2-20X1.625-IN) | |
| 50. | 2M-0849 | [30] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 51. | 314-9342 | [1] | BEARING AS-TAPERED ROLLER | |
| 52. | 9D-1854 | [1] | SPACER-SPECIAL(12.7-MM THK) | |
| 53. | 3K-0360 | [1] | SEAL-O-RING | |
| 54. | 3L-9409 | [1] | CUP-BEARING | |
| 55. | 4J-2506 | [1] | SEAL-O-RING | |
| 56. | 5H-3252 | [2] | SEAL-O-RING | |
| 57. | 5L-2031 | [1] | CUP-BEARING | |
| 58. | 5P-8245 | [15] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 59. | 6F-5559 | [1] | SEAL-O-RING | |
| 60. | 6V-3950 | [1] | CONE-BEARING | |
| 61. | 6V-8337M | [3] | BOLT-SOCKET HEAD(M8X1.25X35-MM) | |
| 62. | 6Y-2539 | [1] | CONE-BEARING | |
| 63. | 6Y-2540 | [1] | CUP-BEARING | |
| 64. | 7M-1201 | [2] | DOWEL | |
| 65. | 8H-7801 | [1] | CONE-BEARING | |
| 66. | 8H-7803 | [1] | CUP-BEARING | |
| 67. | 8T-0106M | [15] | BOLT(M12X1.75X100-MM) | |
| 68. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 69. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 70. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 71. | 8T-4195M | [10] | BOLT(M10X1.5X30-MM) | |
| 72. | 8T-5091M | [3] | BOLT(M8X1.25X20-MM) | |
| 73. | 9C-6041 | [1] | DOWEL | |
| 74. | 6V-8210M | [2] | BOLT(M8X1.25X16-MM) | |
| 75. | 485-9742 | [1] | WASHER | |
| 76. | 485-9743 | [1] | WASHER-LOCK | |
| 77. | 9D-1853 | [2] | RETAINER | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
