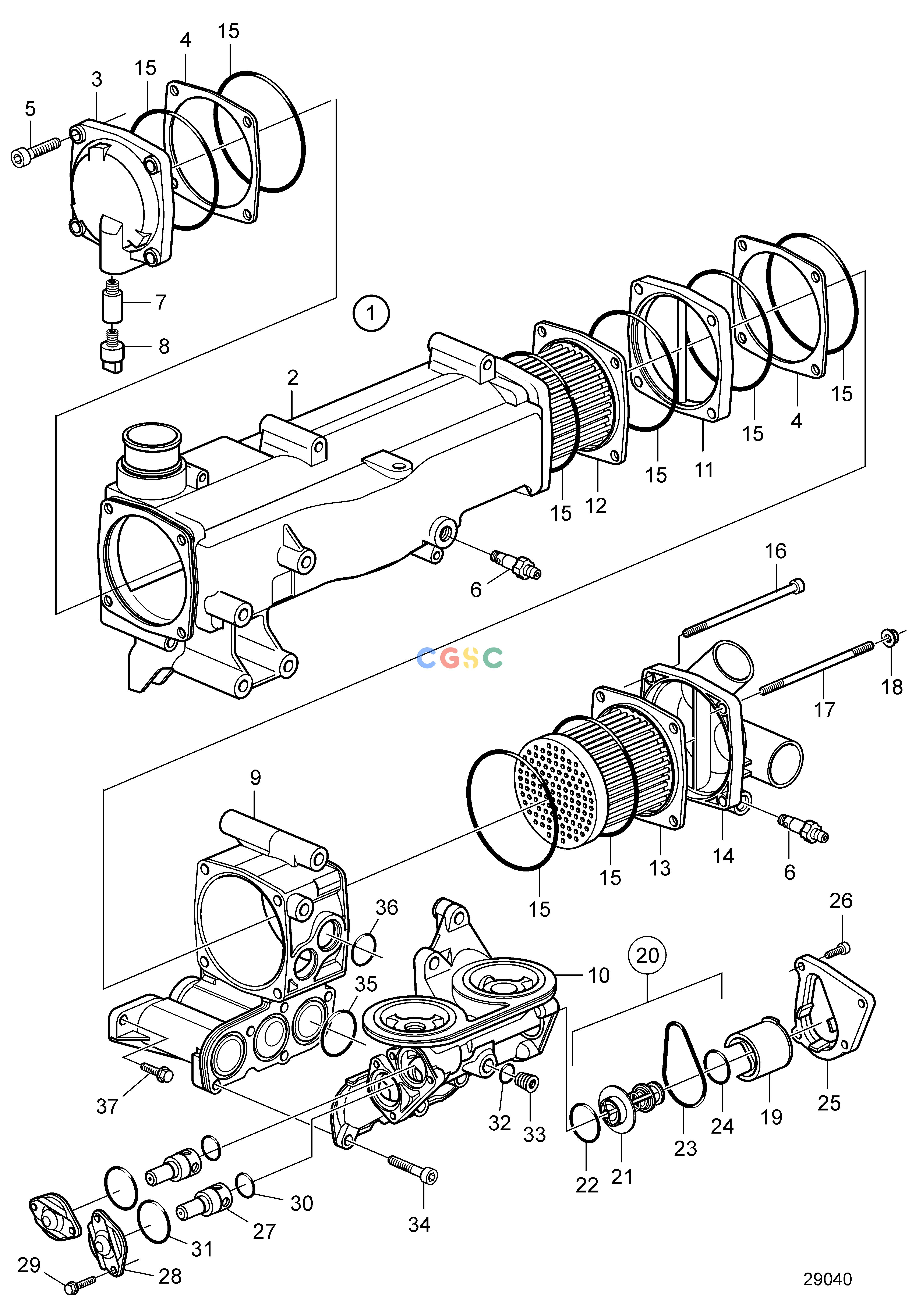

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Cooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
40005721
|
[1] |
Heat exchanger
|
Replaced by 22369742
|
| 1. |
22369742
|
[1] |
Heat exchanger
|
|
| 1. |
22866513
|
[1] |
Heat exchanger
|
SN-A407905
|
| 1. |
22437234
|
[1] |
Heat exchanger
|
SNA407906-
|
| 2. |
40005785
|
[1] |
Housing
|
|
| 2. |
|
|
|
SN-A407905
|
| 3. |
3583641
|
[1] |
End cover
|
SN-A407905
|
| 3. |
22441904
|
[1] |
End cover
|
SNA407906-
|
| 4. |
3583646
|
[2] |
Spacer
|
SN-A407905
|
| 4. |
|
|
|
SNA407906-
|
| 5. |
959223
|
[4] |
Hex. socket screw
|
|
| 6. |
3583822
|
[2] |
Draining nipple
|
|
| 7. |
838929
|
[1] |
Anode
|
SN-A407905
|
| 8. |
838928
|
[1] |
Plug
|
SN-A407905
|
| 9. |
40005783
|
[1] |
Housing
|
|
| 10. |
3584419
|
[1] |
Housing
|
|
| 11. |
3583642
|
[1] |
Spacer
|
|
| 12. |
40005786
|
[1] |
Tube
|
|
| 13. |
40005784
|
[1] |
Tube
|
|
| 14. |
22369744
|
[1] |
End cover
|
|
| 15. |
3583647
|
[8] |
O-ring
|
|
| 16. |
968893
|
[2] |
Flange screw
|
|
| 17. |
3583650
|
[2] |
Stud
|
|
| 18. |
945408
|
[2] |
Flange nut
|
|
| 19. |
3583829
|
[1] |
Retainer
|
|
| 20. |
3588437
|
[1] |
Kit
|
|
| 21. |
3583827
|
[1] |
Thermostat
|
|
| 22. |
3583830
|
[1] |
O-ring
|
|
| 23. |
3583831
|
[1] |
O-ring
|
|
| 24. |
3583832
|
[1] |
O-ring
|
|
| 25. |
3583828
|
[1] |
Cover
|
|
| 26. |
947542
|
[4] |
Flange screw
|
|
| 27. |
21068158
|
[2] |
Reduction valve
|
|
| 28. |
471648
|
[2] |
Cover
|
|
| 29. |
946544
|
[4] |
Flange screw
|
|
| 30. |
469846
|
[2] |
Sealing ring
|
|
| 31. |
982193
|
[2] |
O-ring
|
|
| 32. |
947282
|
[1] |
Gasket
|
|
| 33. |
960629
|
[1] |
Plug
|
|
| 34. |
959223
|
[5] |
Hex. socket screw
|
|
| 35. |
866690
|
[3] |
O-ring
|
|
| 36. |
3885174
|
[2] |
O-ring
|
|
| 37. |
945444
|
[3] |
Flange screw
|
|
