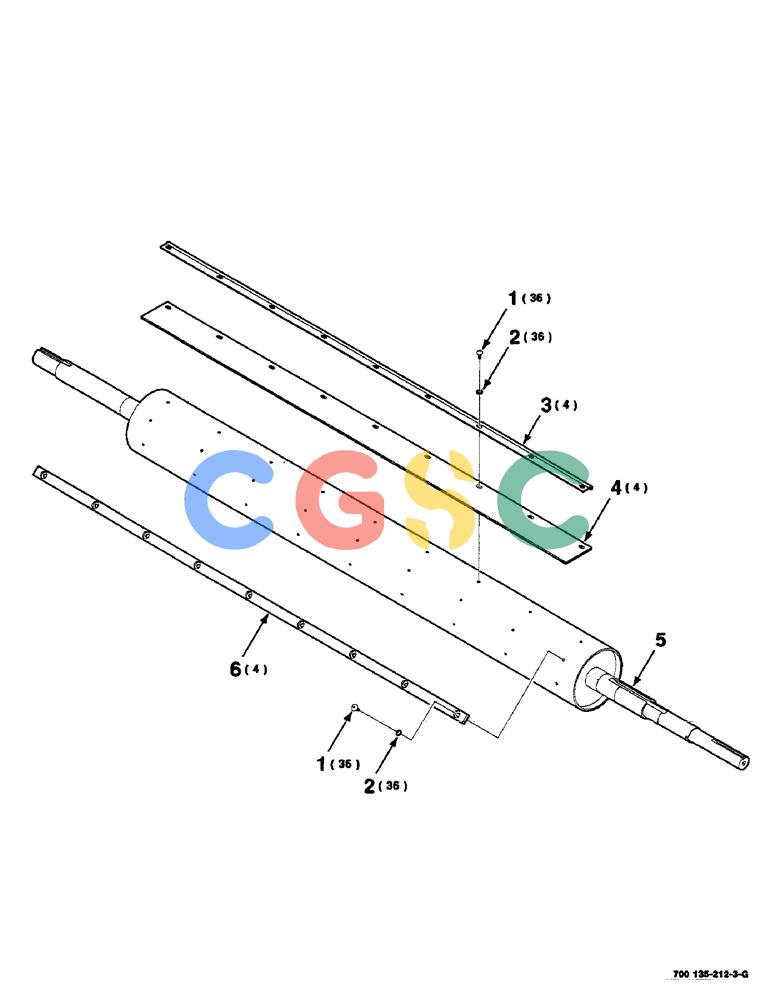

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (6-04) - ROLLER ASSEMBLY, FLAP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
343 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700716591
|
[72] |
SCREW
|
CAS
5/16-18 X 3/4 CRPHTCTS
|
| 2. |
700709141
|
[72] |
LOCK WASHER
|
CAS
5/16 INTERNAL TOOTH LOCK WASHER Superseded by part number: 280542
|
| 3. |
700150030
|
[4] |
ANGLE
|
HFI
Superseded by part number: 700132755, 164-40
|
| 4. |
700717714
|
[4] |
FLAP
|
CAS
- rubber
|
| 5. |
700150023
|
[1] |
ROLLER
|
HFI
WA Superseded by part number: 61-43812, 700132755, 700717714, 700153788
|
| 6. |
700150031
|
[4] |
BAR
|
HFI
- support (Optional)
|
