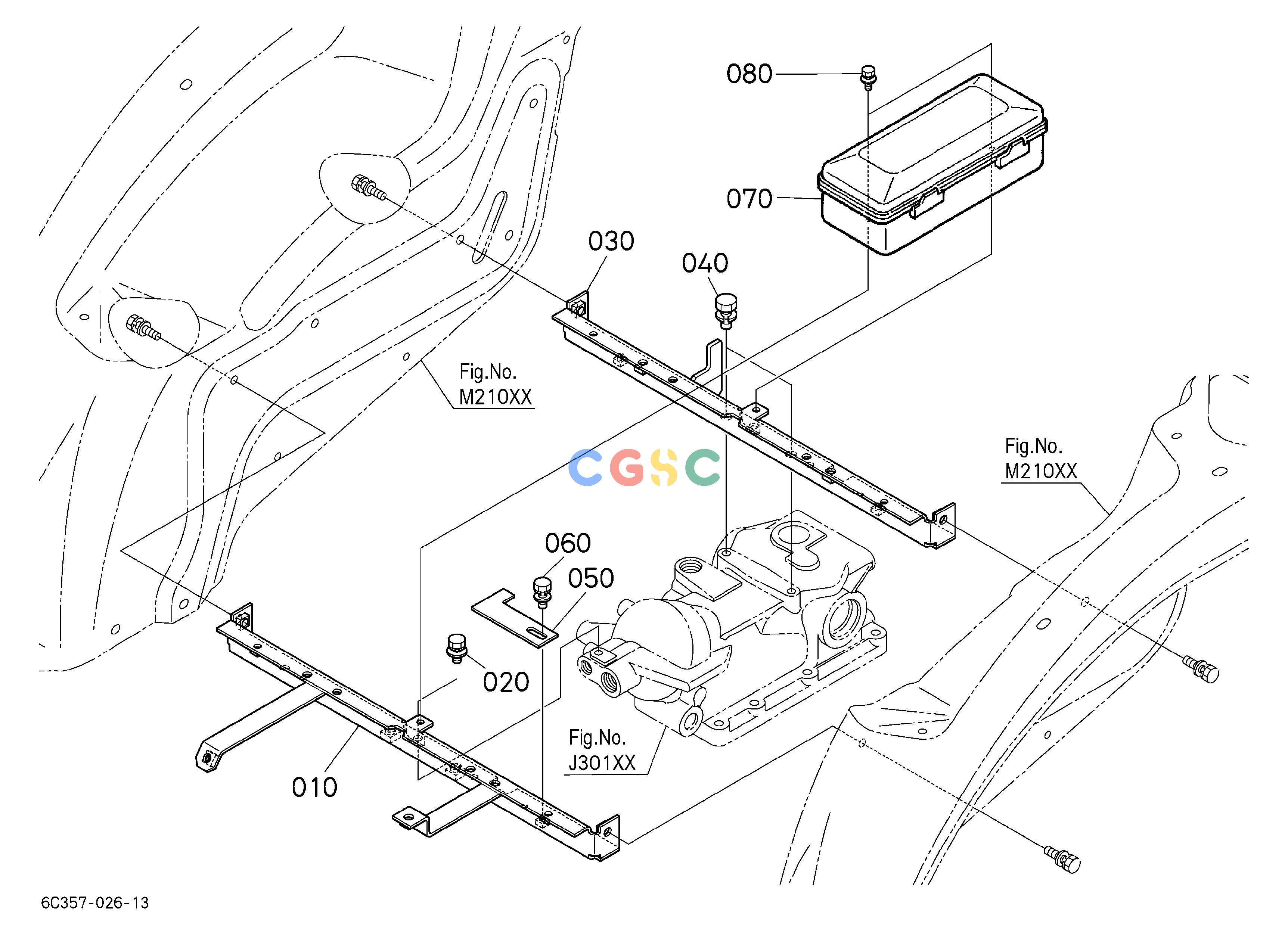

久保田零件查询M21200 FENDER STAY ## NOTE:ORDER BY REF No.010 NEW PART and Fig.No.M21500 REF.No.010 NEW PART. HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
743 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C31051382
|
[1] |
STAY,FRONT
|
0.0000(lbs); 0.000
|
| 010. |
6C31051383
|
[1] |
STAY,FRONT
|
2.6400(lbs); 1.200
|
| 020. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 030. |
6C31051392
|
[1] |
STAY,REAR
|
3.3000(lbs); 1.500
|
| 040. |
0112351020
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
6C30051410
|
[1] |
PLATE
|
0.1276(lbs); 0.058
|
| 060. |
0112550820
|
[1] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 070. |
6C04052790
|
[1] |
CASE,TOOLS
|
0.5060(lbs); 0.230
|
| 080. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 080. |
0102550620
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
