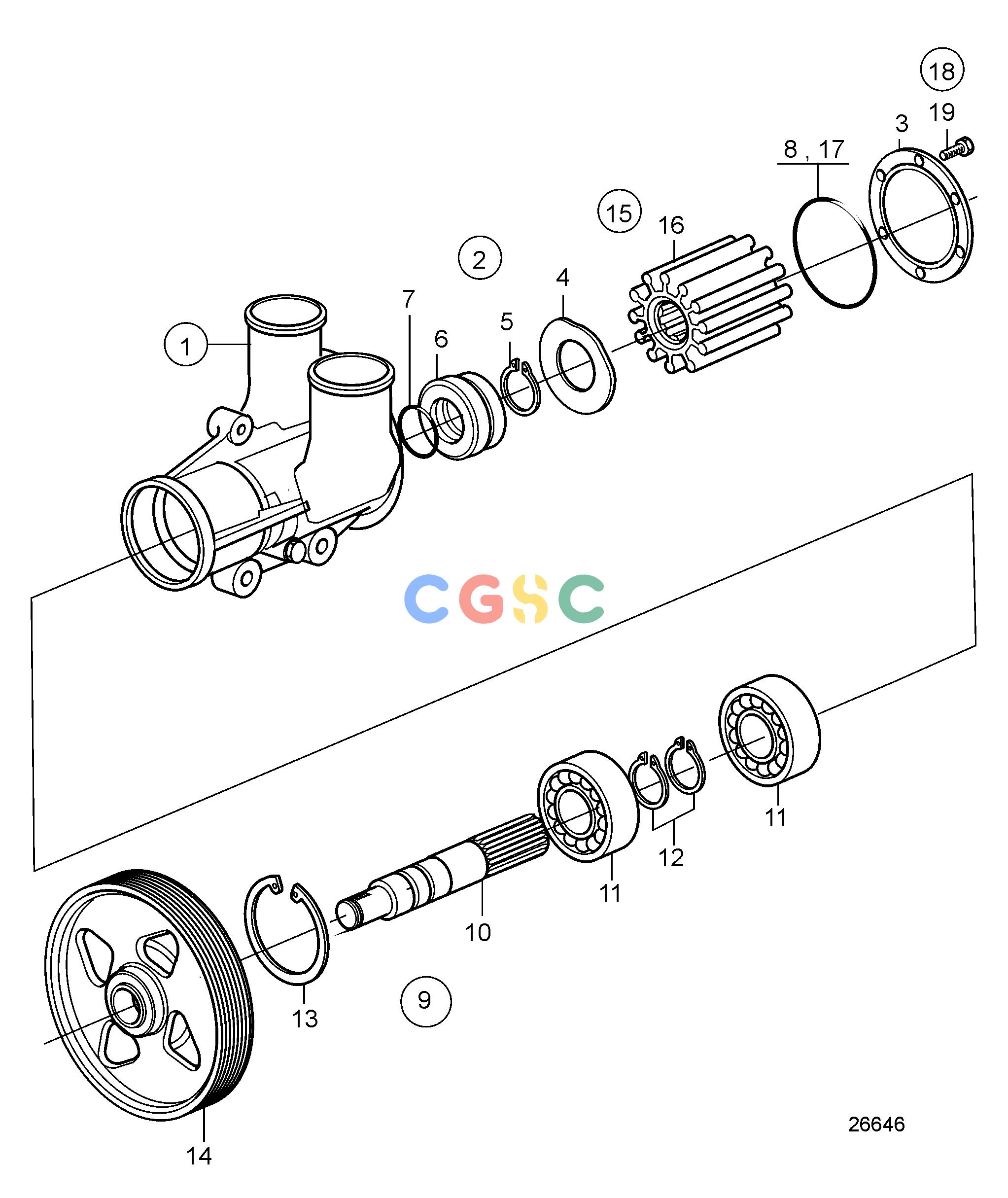

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Cooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
721 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21419376
|
[1] |
Sea water pump
|
|
| 2. |
21951404
|
[1] |
Wear kit
|
|
| 3. |
3581617
|
[1] |
Cover
|
|
| 4. |
|
|
|
|
| 5. |
943468
|
[1] |
Snap ring
|
|
| 6. |
864649
|
[1] |
Seal
|
|
| 7. |
864648
|
[1] |
O-ring
|
|
| 8. |
3581618
|
[1] |
O-ring
|
|
| 9. |
21951465
|
[1] |
Shaft kit
|
|
| 10. |
21422635
|
[1] |
Shaft
|
|
| 11. |
21422639
|
[2] |
Ball bearing
|
|
| 12. |
21422640
|
[2] |
Retaining ring
|
|
| 13. |
21422641
|
[1] |
Retaining ring
|
|
| 14. |
|
|
|
|
| 15. |
876771
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 15. |
3887761
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 15. |
21958592
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 15. |
22000061
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 15. |
21951358
|
[1] |
Impeller kit
|
|
| 16. |
|
|
|
|
| 17. |
3581618
|
[1] |
O-ring
|
|
| 18. |
21951334
|
[1] |
Screw kit
|
|
| 19. |
21346724
|
[6] |
Hexagon screw
|
Use screw kit 21951334
|
