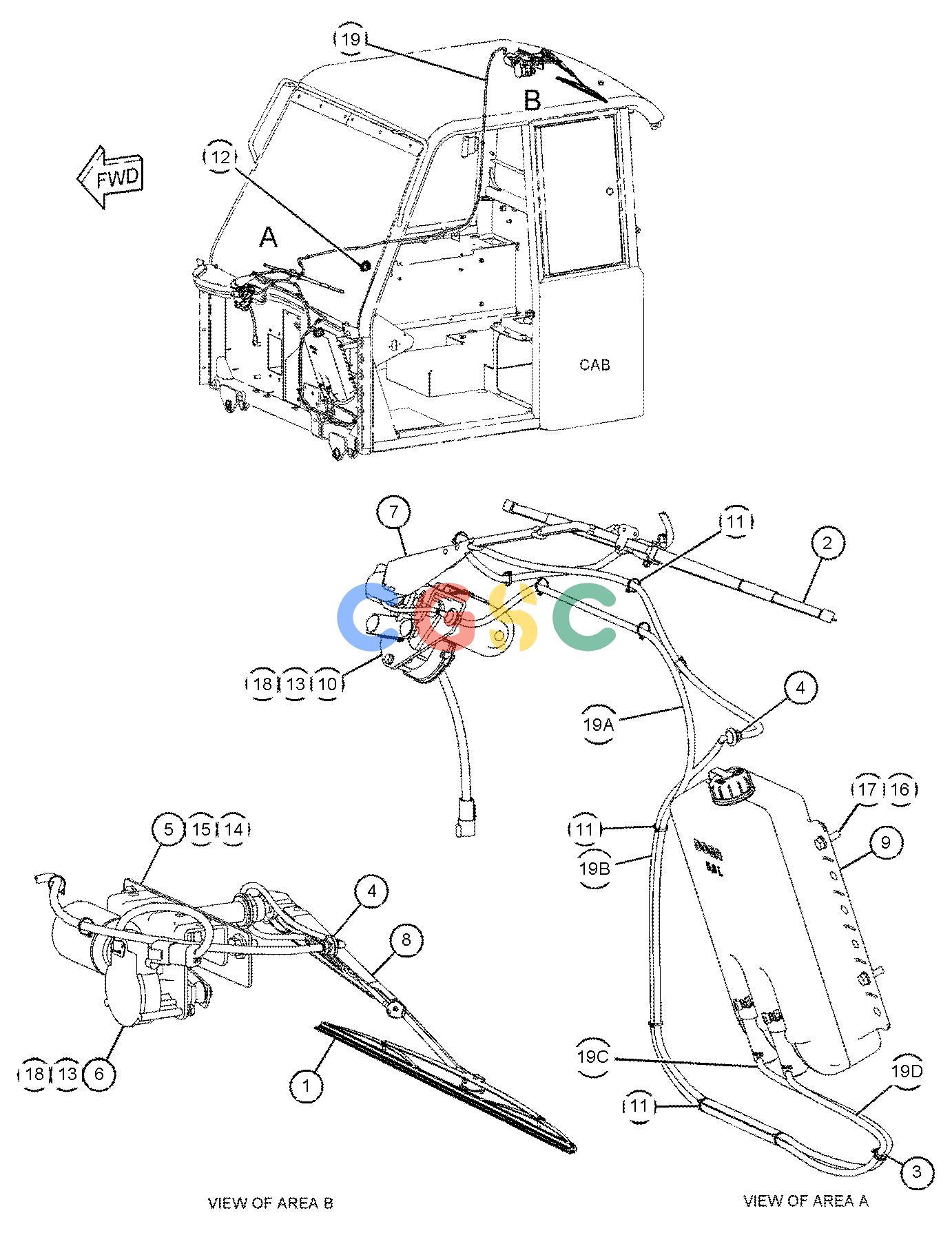

卡特零件查询（725C2） 383-6696: WIPER & WASHER GP-WINDOW
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5C-8811 | [1] | BLADE AS-WIPER(500-MM)(REAR) | |
| 2. | 6V-7419 | [1] | BLADE AS-WIPER(700-MM)(FRONT) | |
| 3. | 7Y-3474 | [2] | VALVE AS-CHECK(WINDOW WASHER) | |
| 4. | 8T-5400 | [3] | CONNECTOR | |
| 5. | 168-3392 | [1] | PLATE | |
| 6. | 168-8926Y | [1] | MOTOR GP-WINDOW WIPER(REAR) | |
| 7. | 168-8927 | [1] | ARM AS-WINDOW WIPER(FRONT) | |
| | 136-3188 | [3] | CLIP | |
| | 136-3196 | [1] | NOZZLE AS-WASHER | |
| | 194-5171E | | HOSE(70-CM) | |
| 8. | 168-8928 | [1] | ARM AS-WINDOW WIPER(REAR) | |
| | 194-5171E | | HOSE(55-CM) | |
| | 305-9192 | [1] | NOZZLE AS-WASHER | |
| 9. | 380-8464 | [1] | TANK GP-WINDOW WASHER | |
| | 388-9379 | [1] | CAP-VENTED | |
| | 416-0021 | [2] | PUMP AS-WASHER(24-VOLT) | |
| 10. | 399-1437Y | [1] | MOTOR GP-WINDOW WIPER | |
| 11. | 1S-9593B | [22] | STRAP-CABLE | |
| 12. | 271-2827 | [1] | SWITCH AS-ROCKER(REAR WASHER, WIPER) | |
| 13. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 14. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 15. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 16. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 17. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 18. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 19. | 144-0195E | | HOSE(396-CM) | |
| 19A. | 144-0195E | | HOSE(150.5-CM) | |
| 19B. | 144-0195E | | HOSE(100-CM) | |
| 19C. | 144-0195E | | HOSE(24-CM) | |
| 19D. | 144-0195E | | HOSE(20.5-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
