斗山零件查询TOOLS E57W Doosan parts catalog online_斗山Doosan_工程机械

斗山零件查询TOOLS E57W Doosan parts catalog online

广数供应链运营团队, 15 02月, 2025，浏览： 879 次

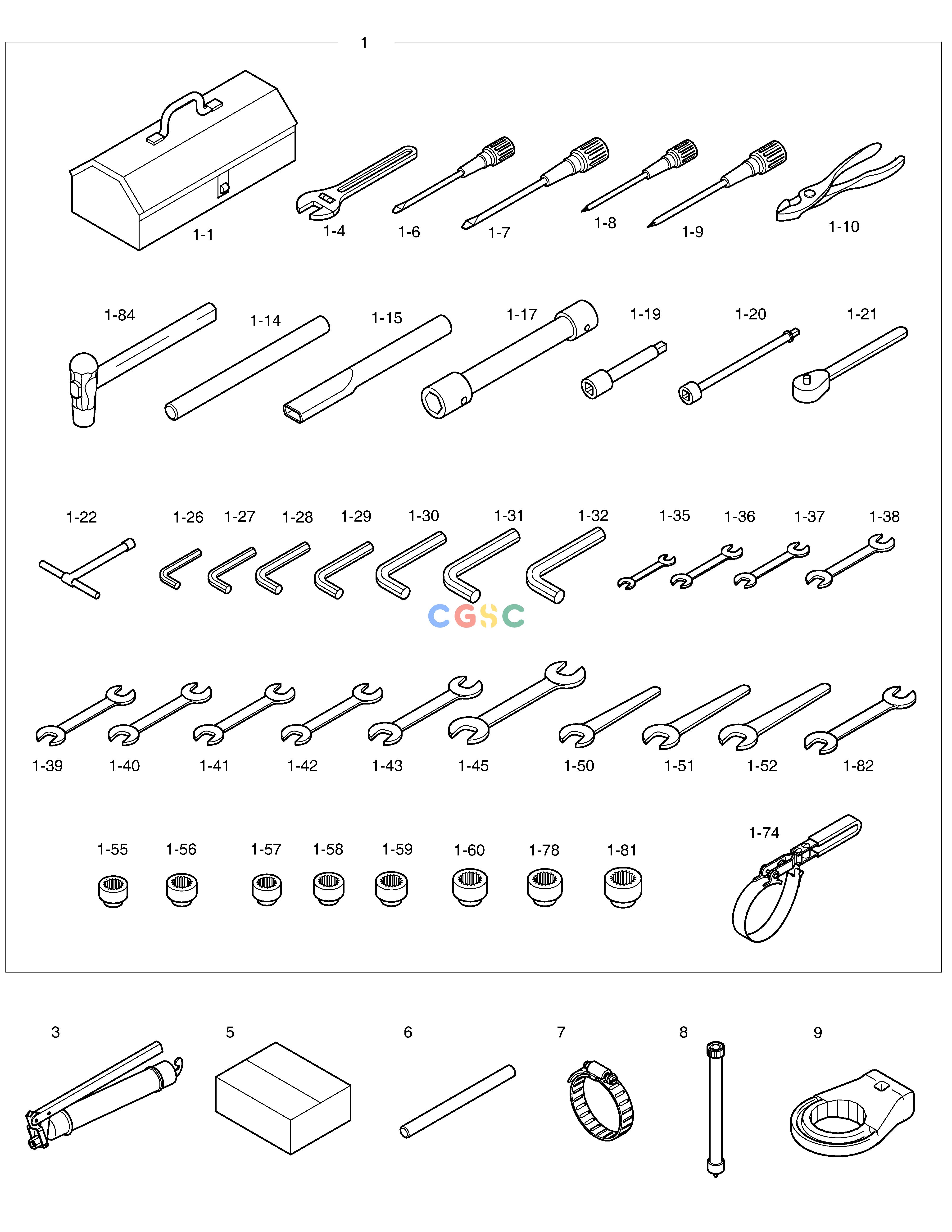

Pos.	Part No	Qty	Parts name
-.	850329-00212	[-]
1.	2199-1063F46A	[1]
1-1.	2199-9043	[1]	. BOX;TOOL
1-10.	T7500004	[1]	. PILER,COMBI
1-14.	2199-1004	[1]	. BAR
1-15.	2199-1005	[1]	. PIPE
1-17.	2199-9032	[1]	WRENCH 27/30
1-19.	T6690012	[1]	. BAR;EXTENSION
1-20.	T6690013	[1]	. BAR;EXTENSION
1-21.	T6750003	[1]	. HANDLE;RATCHET
1-22.	2199-9009	[1]	. CLIP,DRIVER
1-26.	T6550005	[1]	. L-WRENCH
1-27.	T6550006	[1]	. L-WRENCH
1-28.	T6550007	[1]	. L-WRENCH 6
1-29.	T6550009	[1]	. L-WRENCH 8
1-30.	T6550011	[1]	. L-WRENCH 10
1-31.	T6550013	[1]	. L-WRENCH 12
1-32.	T6550015	[1]	L-WRENCH 14
1-35.	T6510062	[1]	SPANNER
1-36.	T6510066	[1]	. SPANNER 10x13
1-37.	T6510070	[1]	SPANNER
1-38.	T6510072	[1]	. SPANNER
1-39.	T6510075	[1]	SPANNER 19x22
1-4.	T6580016	[1]	WRENCH ADJUST
1-40.	T6510079	[1]	. SPANNER 22x24
1-41.	T6510081	[1]	. SPANNER 24X27
1-42.	T6510085	[1]	. SPANNER 27X30
1-43.	T6510087	[1]	SPANNER 30X32
1-45.	T6510091	[1]	. SPANNER 36X41
1-50.	T6510023	[1]	SPANNER 32
1-51.	T6510025	[1]	SPANNER 36
1-52.	T6510027	[1]	. SPANNER 41
1-55.	T6600183	[1]	. SOCKET M6
1-56.	T6600189	[1]	. SOCKET M8
1-57.	T6600197	[1]	. SOCKET;WRENCH
1-58.	T6600201	[1]	. SOCKET;WRENCH
1-59.	T6600211	[1]	. SOCKET;WRENCH
1-6.	T7050003	[1]	. DRIVER(-)
1-60.	T6600223	[1]	. SOCKET;WRENCH
1-7.	T7050013	[1]	. DRIVER
1-74.	199-00075	[1]	. WRENCH;FILTER
1-78.	T6600217	[1]	SOCKET;WRENCH
1-8.	T7050021	[1]	. DRIVER
1-81.	T6600207	[1]	SOCKET;WRENCH
1-82.	T6510069	[1]	SPANNER
1-84.	850315-00029	[1]
1-9.	T7050022	[1]	. DRIVER
3.	2199-9008	[1]	GREASE GUN
5.	2199-9010	[1]	BOX;CORRUGATED PAPER
6.	2199-1019	[1]	HANDLE
7.	S8450023	[1]	CLAMP
8.	184-00120	[1]	HOSE;OIL CHANGE
9.	850332-00009	[1]	WRENCH,FILTER
