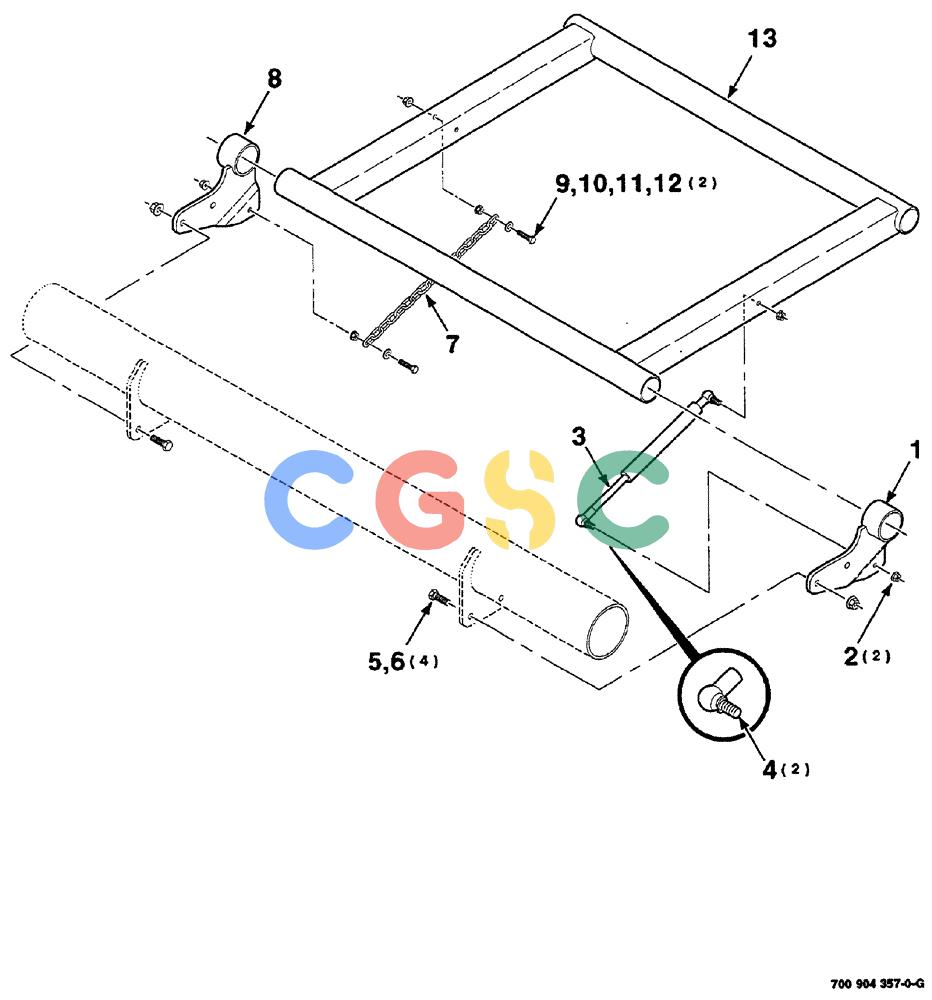

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (09-012) - BALE RAMP KIT (TO BE ORDERED THRU WHOLEGOODS ONLY) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50921
|
[1] |
KIT bale ramp complete
|
|
| 1. |
700135920
|
[1] |
SUPPORT
|
HFI
WA left
|
| 2. |
700711876
|
[2] |
LOCK NUT
|
CAS
hex flange top lock, M10 x 1.5, class 9
|
| 3. |
107898
|
[1] |
GAS STRUT
|
CAS
spring, (Includes: Ref. 4)
|
| 4. |
700718303
|
[2] |
JOINT
|
CAS
ball, 14-28
|
| 5. |
413-824
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 6. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 7. |
1662543
|
[1] |
CHAIN (AG)
|
CAS
|
| 8. |
700135924
|
[1] |
SUPPORT
|
HFI
WA right
|
| 9. |
873083
|
[2] |
SCREW
|
CAS
SCREW full thread hex cap, 3/8-16 x 1-1/2
|
| 10. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened plain 3/8 Superseded by part number: 86632588
|
| 11. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 12. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 13. |
700135926
|
[1] |
RAMP
|
HFI
WA
|
