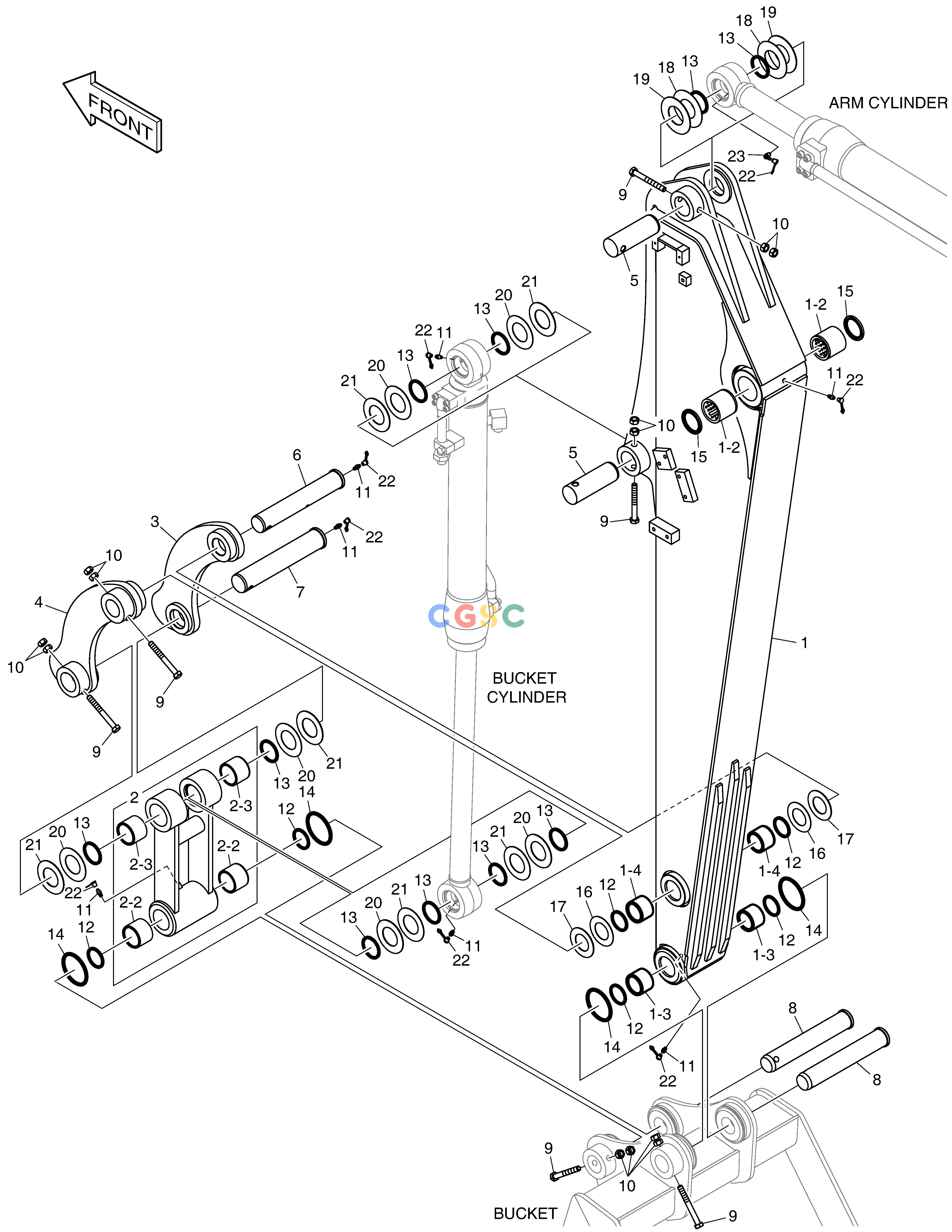

斗山零件查询ARM - 1.9m E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230201-01027
|
[-] |
|
|
| 1. |
230204-00348G-H
|
[1] |
|
|
| 1-2. |
131004-00193A
|
[2] |
|
|
| 1-3. |
131008-00157
|
[2] |
|
|
| 1-4. |
131008-00149
|
[2] |
|
|
| 10. |
S4012733
|
[12] |
NUT
|
|
| 11. |
S6710041
|
[7] |
NIPPLE,GREASE
|
|
| 12. |
DS5502011
|
[6] |
SEAL,DUST
|
|
| 13. |
DS5502012
|
[10] |
SEAL,DUST
|
|
| 14. |
180-00077D1
|
[4] |
O-RING
|
|
| 15. |
DS5502001
|
[2] |
SEAL,DUST
|
|
| 16. |
DS7752081
|
[2] |
SHIM
|
|
| 17. |
DS7752082
|
[2] |
SHIM
|
|
| 18. |
DS7752083
|
[2] |
SHIM
|
|
| 19. |
DS7752084
|
[2] |
SHIM
|
|
| 2. |
101541-00140A-L
|
[1] |
|
|
| 2-2. |
131008-00113
|
[2] |
|
|
| 2-3. |
131008-00114
|
[2] |
|
|
| 20. |
DS7752087
|
[6] |
SHIM
|
|
| 21. |
DS7752088
|
[6] |
SHIM
|
|
| 22. |
160-00020
|
[8] |
CAP
|
|
| 23. |
S6710152
|
[1] |
NIPPLE;GREASE
|
|
| 3. |
101540-00114A-L
|
[1] |
|
|
| 4. |
101540-00115A-L
|
[1] |
|
|
| 5. |
120501-02588
|
[2] |
|
|
| 6. |
120501-02617A
|
[1] |
|
|
| 7. |
120501-02618A
|
[1] |
|
|
| 8. |
120501-02619
|
[2] |
|
|
| 9. |
S0561866
|
[6] |
BOLT
|
|
