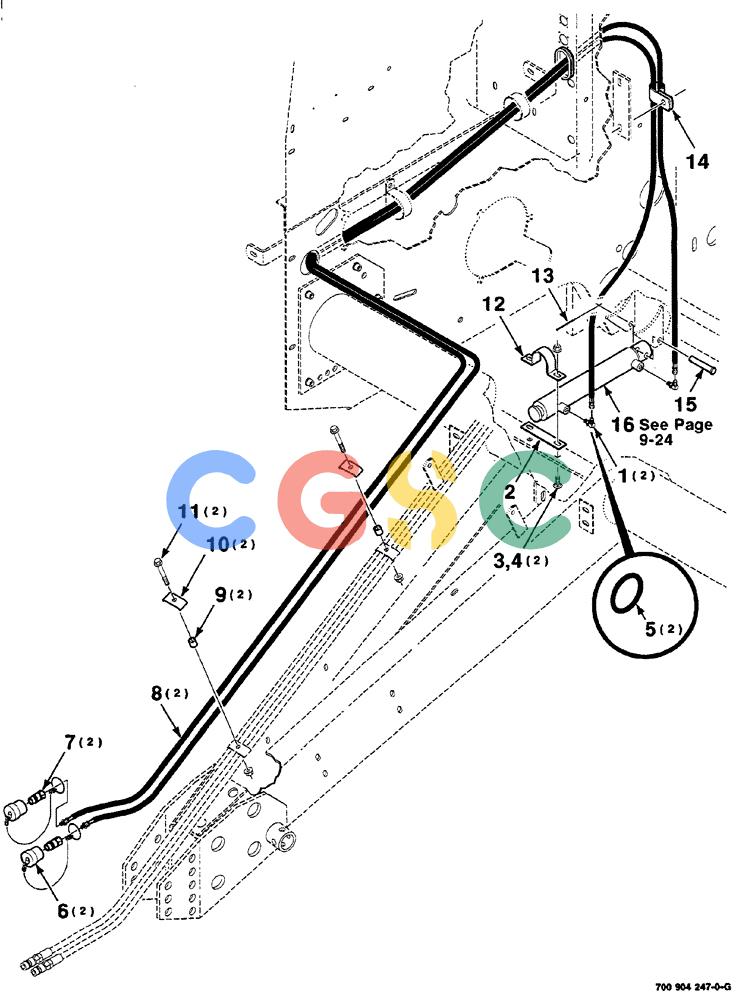

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (09-022) - HYDRAULIC PICKUP LIFT KIT (TO BE ORDERED THRU WHOLEGOODS ONLY) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
413 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50920
|
[1] |
KIT hydraulic pickup lift, complete
|
|
| 1. |
218-5103
|
[2] |
90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
|
CAS
90° (Includes: Ref. 5) Superseded by part number: 216773
|
| 2. |
700150179
|
[1] |
SPACER
|
HFI
|
| 3. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 4. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 5. |
237-6004
|
[2] |
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
|
CAS
Superseded by part number: 165202, 72186131
|
| 6. |
700718082
|
[2] |
CAP
|
CAS
dust
|
| 7. |
1-7141
|
[2] |
FITTING
|
CAS
COUPLER quick disconnect Superseded by part number: 1272770C2
|
| 8. |
700716328
|
[2] |
HYDRAULIC HOSE,0.25" ID x 216.54", SAE J516, SAE J343
|
CAS
hydraulic
|
| 9. |
296913
|
[2] |
SPACER
|
HFI
|
| 10. |
700126495
|
[2] |
CLAMP
|
HFI
|
| 11. |
7702079
|
[2] |
SCREW
|
CAS
hex flange, 3/8-16 x 2-1/2 GR. 8
|
| 12. |
700150178
|
[1] |
CLAMP
|
HFI
|
| 13. |
432-1020
|
[1] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
Superseded by part number: 86523851
|
| 14. |
515-23254
|
[1] |
CLAMP,1", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 9827902, 72187281
|
| 15. |
063875
|
[1] |
CLEVIS PIN
|
CAS
1/2 x 2-1/2
|
| 16. |
700716327
|
[1] |
CYLINDER
|
CAS
ASSEMBLY hydraulic
|
