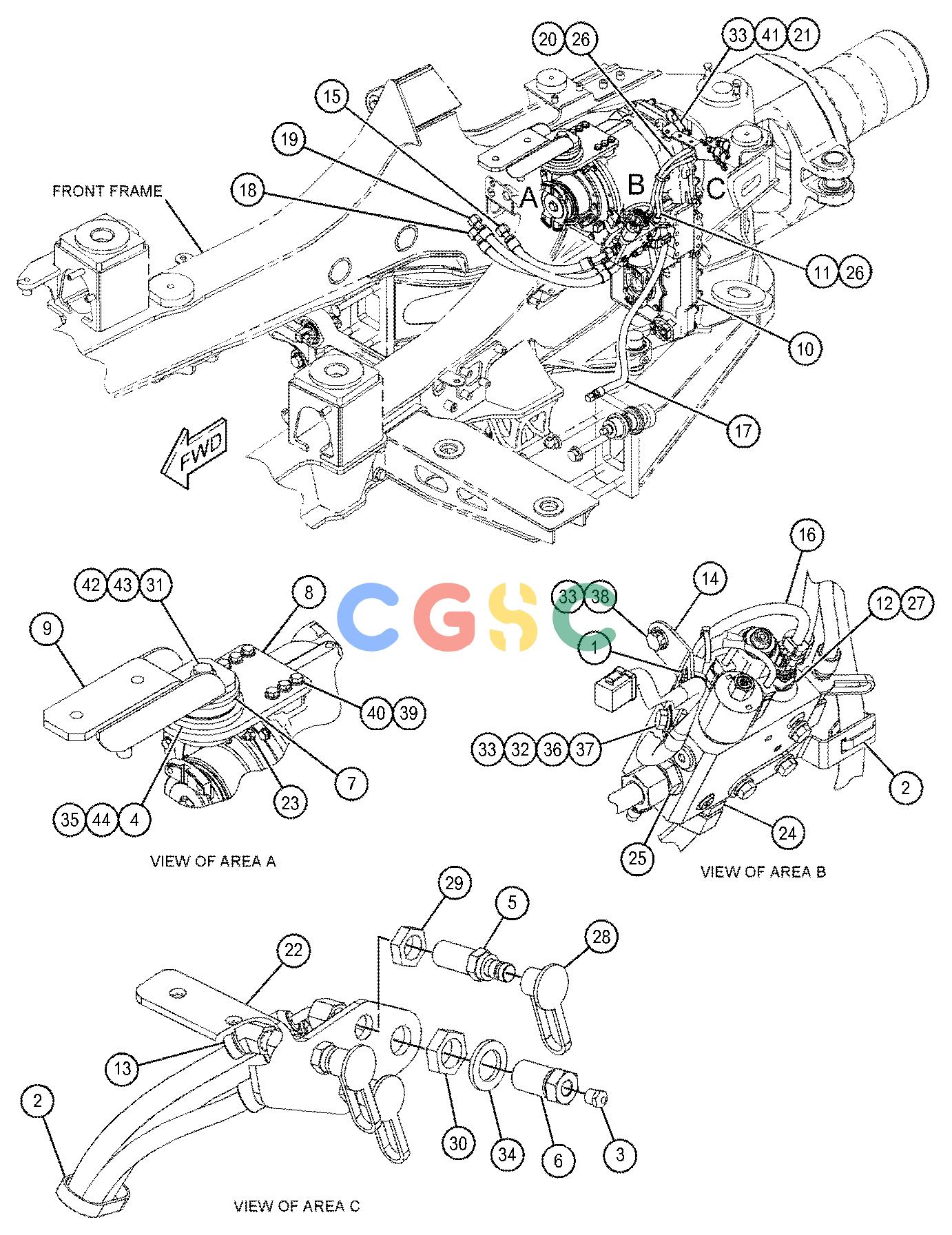

卡特零件查询（725C2） 499-5228: GEAR & CASE GP-TRANSFER
广数供应链运营团队, 15 02月, 2025，浏览：
573 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 6U-0455 | [2] | STRAP | |
| 3. | 6U-1989 | [1] | VALVE-RELIEF | |
| 4. | 9W-9920 | [1] | MOUNTING AS-VIBRATION ISOLATOR | |
| 5. | 121-0530 | [3] | FITTING AS-HYDRAULIC(QUICK DISCONNECT) | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 6. | 169-7395 | [1] | ADAPTER AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 156-6129 | [1] | ADAPTER | |
| 7. | 173-8712 | [1] | WASHER-SPECIAL | |
| 8. | 176-3358 | [1] | BRACKET AS-TOP | |
| 9. | 250-1724 | [1] | BRACKET AS | |
| 10. | 338-2557Y | [1] | GEAR & CASE GP-TRANSFER | |
| 11. | 344-5204I | [1] | HOSE AS | |
| 12. | 344-7391 | [1] | SENSOR-PRESSURE | |
| 13. | 360-3572 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 14. | 392-3530 | [1] | BRACKET | |
| 15. | 393-5455I | [1] | HOSE AS | |
| 16. | 423-7678Y | [1] | HARNESS AS-FRONT(OUTPUT TRANSFER GEAR) | |
| 17. | 433-4203I | [1] | HOSE AS | |
| 18. | 433-5391I | [1] | HOSE AS | |
| 19. | 434-0562I | [1] | HOSE AS | |
| 20. | 444-9858I | [1] | HOSE AS | |
| 21. | 445-0321 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 22. | 473-9389 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 23. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 24. | 148-8324 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 25. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 26. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 27. | 3J-1907 | [1] | SEAL-O-RING | |
| 28. | 6V-0852 | [3] | CAP-DUST | |
| 29. | 6V-9168 | [3] | NUT(11/16-16-THD) | |
| 30. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 31. | 8C-8478M | [1] | BOLT(M20X2.5X140-MM) | |
| 32. | 8M-2770 | [1] | CLIP(LOOP) | |
| 33. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 34. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 35. | 8T-4131M | [1] | NUT(M20X2.5-THD) | |
| 36. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 37. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 38. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 39. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 40. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| 41. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 42. | 8T-5439 | [2] | WASHER-HARD(21.5X45X6-MM THK) | |
| 43. | 9W-6582 | [1] | SLEEVE | |
| 44. | 9W-6584 | [1] | WASHER(20.5X114X10-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
