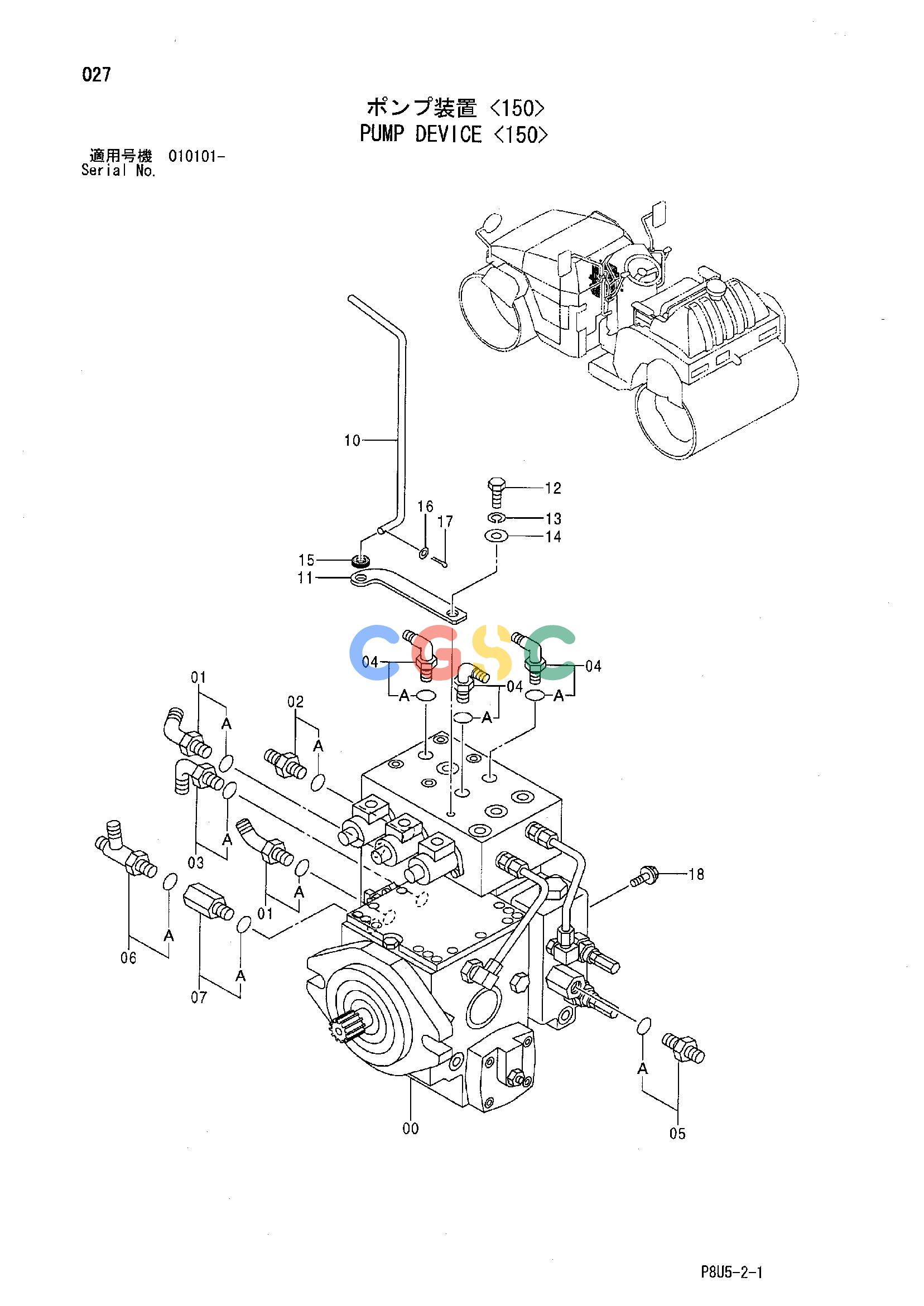

日立零件查询（CC150C-2）PUMP DEVICE <150> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425458 | [1] | PUMP;PISTON | |
| 01. | 425544 | [2] | ELBOW;S | |
| 01A. | 430623 | [1] | O-RING | |
| 02. | 425543 | [1] | ADAPTER;S | |
| 02A. | 430623 | [1] | O-RING | |
| 03. | 425545 | [1] | ELBOW;S | |
| 03A. | 430623 | [1] | O-RING | |
| 04. | 424047 | [3] | ELBOW;S | |
| 04A. | 438402 | [1] | O-RING | |
| 05. | 424077 | [1] | ADAPTER;S | |
| 05A. | 430623 | [1] | O-RING | |
| 06. | 424090 | [1] | TEE;S | |
| 06A. | 430623 | [1] | O-RING | |
| 07. | 425518 | [1] | REDUCER | |
| 07A. | 430623 | [1] | O-RING | |
| 10. | 426025 | [1] | LEVER | |
| 11. | 425897 | [1] | PLATE | |
| 12. | 500048 | [1] | BOLT | |
| 13. | 947887 | [1] | WASHER;SPRING | |
| 14. | 947324 | [1] | WASHER;PLANE | |
| 15. | 425828 | [1] | BUSHING;RUBBER | |
| 16. | 947322 | [1] | WASHER;PLANE | |
| 17. | 425839 | [1] | PIN;SPLIT | |
| 18. | 500048 | [2] | BOLT;SEMS | |
