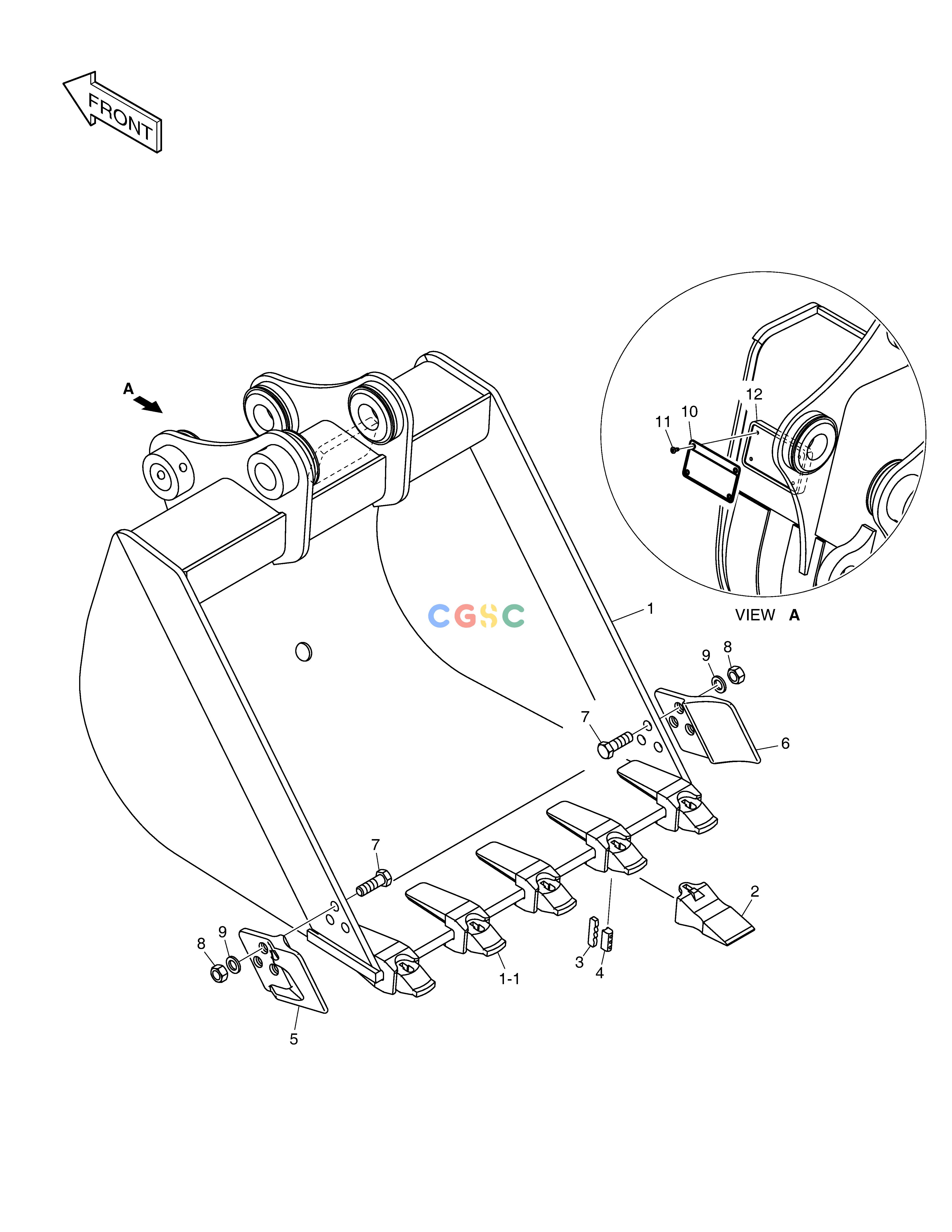

斗山零件查询BUCKET ASS´Y - 0.19m³ E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-01668C
|
[1] |
|
230104-01771A
|
| -. |
230104-01771A
|
[1] |
|
|
| 1. |
230104-01669C
|
[1] |
|
|
| 1-1. |
2713-9050A
|
[5] |
ADAPTER
|
|
| 10. |
950209-04415A
|
[1] |
|
|
| 11. |
DS0501007
|
[4] |
|
|
| 12. |
110913-00289A
|
[1] |
|
|
| 2. |
2713-9051A
|
[5] |
POINT;TOOTH
|
|
| 3. |
2705-9005
|
[5] |
PIN;LOCKING
|
|
| 4. |
2705-9006
|
[5] |
RUBBER;LOCKING
|
|
| 5. |
2713-6051
|
[1] |
CUTTER;SIDE(L)
|
|
| 6. |
2713-6050
|
[1] |
CUTTER;SIDE(R)
|
|
| 7. |
S0565261
|
[6] |
BOLT M16X2.0X50
|
|
| 8. |
S4012933
|
[6] |
NUT
|
|
| 9. |
K1014251
|
[6] |
WASHER;HARDEN
|
|
