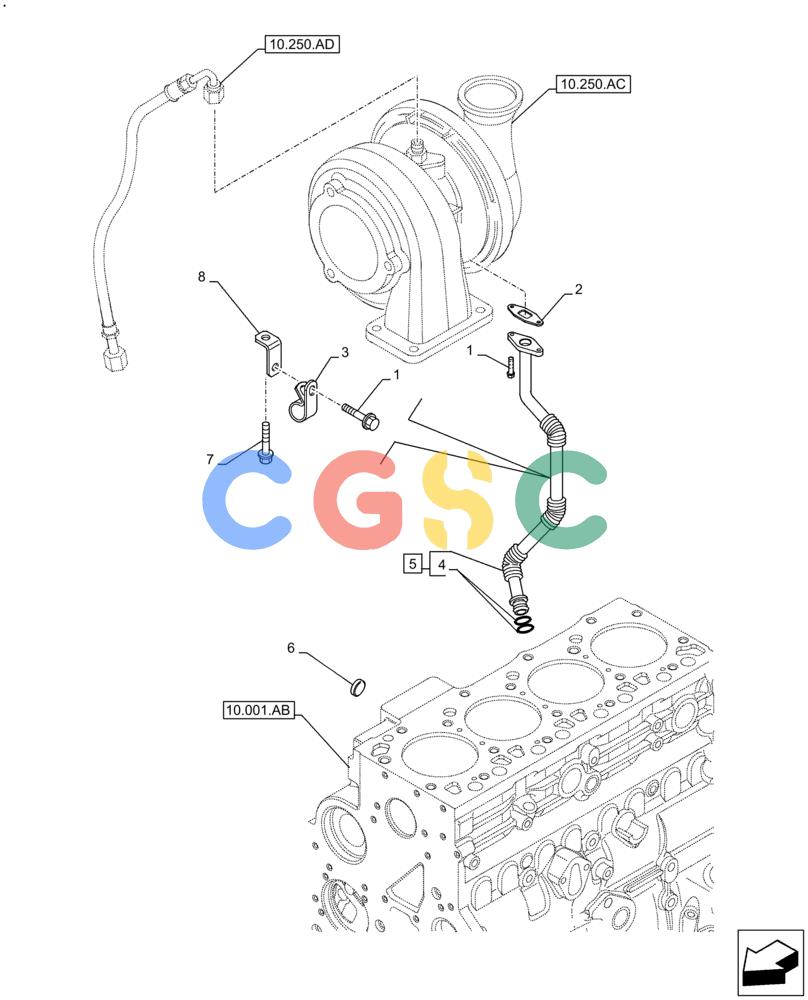

神钢零件查询(F4HFE413Y B001) - ENGINE 5801910277 47446991 GRAPE HARVESTER 7030/7030L/8030L T4B (5/14-12/15) (10.250.AE) - TURBOCHARGER OIL RETURN LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
381 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852101 | [3] | FLANGE BOLT,Hex, M6 x 16mm | TOR Superseded by part number: 18137825 |
| 2. | 4899467 | [1] | GASKET | TOR |
| 3. | 2852500 | [1] | CLAMP | TOR Superseded by part number: |
| 4. | NSS | [2] | NOT SOLD SEPARAT | CONO-RING, Incl in 5 |
| 5. | 47712362 | [1] | Assy, Incl 4 | TORAssy, Incl 4 Superseded by part number: |
| 6. | 4895089 | [1] | PLUG,0.886" L | TOR |
| 7. | 16586224 | [1] | SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8 | TOR Superseded by part number: 16586225 |
| 7. | 2852100 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TOR Superseded by part number: 16586225 |
