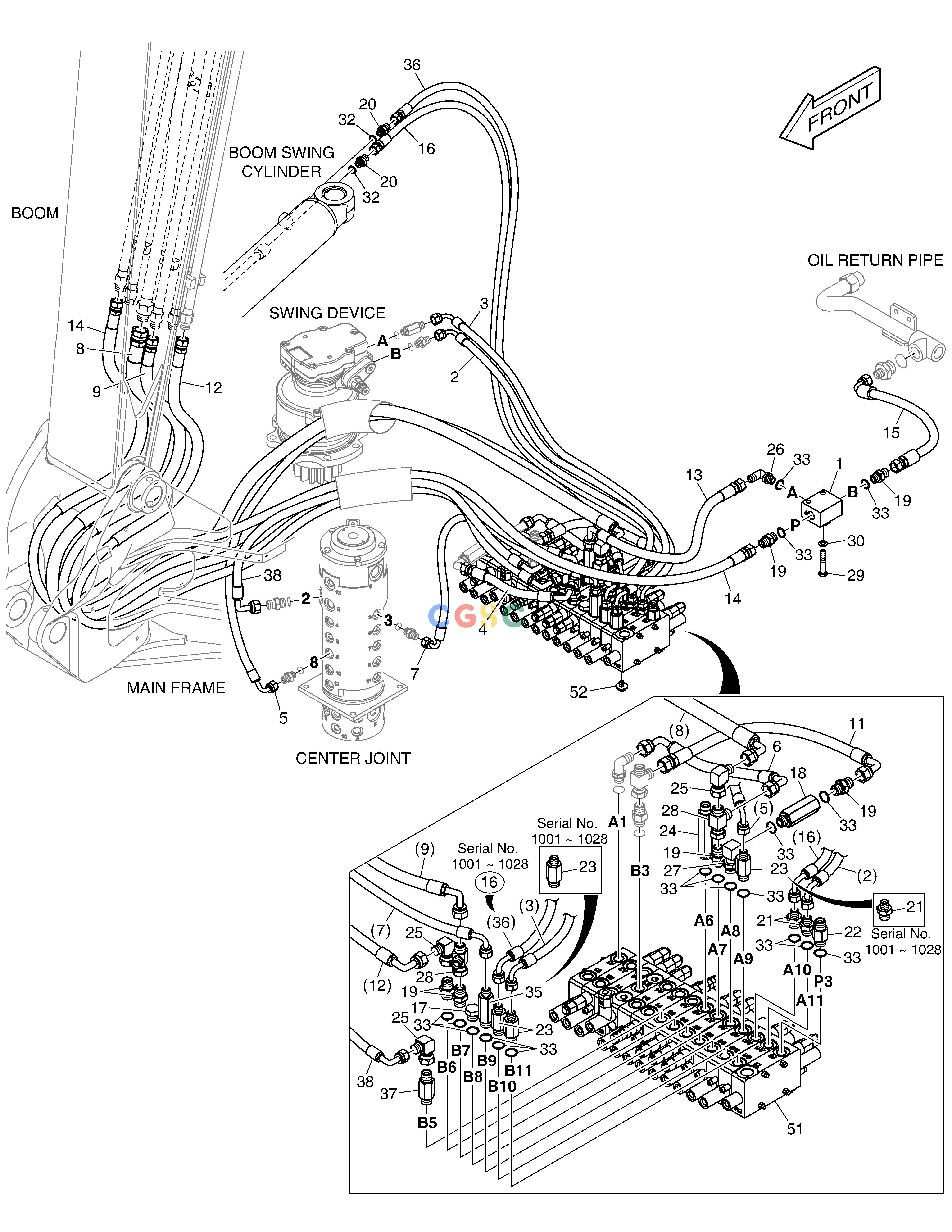

斗山零件查询MAIN PIPING - TWO WAY E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09721
|
[-] |
|
|
| 1. |
420-00380
|
[1] |
VALVE;SWITCH
|
|
| 11. |
DS20551478
|
[1] |
|
|
| 12. |
DS20551488
|
[1] |
|
|
| 12. |
DS20551358
|
[1] |
|
|
| 13. |
DS20551359
|
[1] |
|
|
| 14. |
DS20531308
|
[1] |
|
|
| 14. |
DS20531244
|
[1] |
|
|
| 15. |
DS2055643
|
[1] |
HOSE PF1/2-410L
|
|
| 16. |
DS20551360
|
[1] |
|
|
| 16. |
DS20551360
|
[2] |
|
|
| 17. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 18. |
K1057312
|
[1] |
VALVE,CHECK
|
|
| 19. |
2181-1126D6
|
[6] |
ADAPTER
|
|
| 2. |
DS2059650
|
[1] |
|
|
| 2. |
DS2059646
|
[1] |
|
|
| 20. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 21. |
2181-1126D32
|
[3] |
ADAPTER PFO1/2-PF3/8
|
|
| 21. |
2181-1126D23
|
[2] |
ADAPTER
|
|
| 22. |
2181-1126D33
|
[1] |
ADAPTER
|
|
| 23. |
2181-1126D73
|
[3] |
ADAPTER
|
|
| 23. |
DS2213219
|
[3] |
|
|
| 24. |
DS2213167
|
[1] |
ADAPTER
|
|
| 25. |
181-00709D2
|
[2] |
ELBOW
|
|
| 25. |
181-00709D2
|
[3] |
ELBOW
|
|
| 26. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 27. |
2181-2295D15
|
[1] |
ELBOW
|
|
| 28. |
181-00837D5
|
[2] |
TEE;UNION
|
|
| 29. |
S0558866
|
[2] |
BOLT
|
|
| 3. |
DS2059647
|
[1] |
|
|
| 30. |
120804-00076
|
[2] |
WASHER
|
|
| 32. |
S8000141
|
[2] |
O-RING
|
|
| 33. |
S8000181
|
[18] |
O-RING
|
|
| 35. |
DS2213220
|
[1] |
|
|
| 36. |
DS20551355
|
[1] |
|
|
| 37. |
DS2213174
|
[1] |
ADAPTER
|
|
| 38. |
DS2059661
|
[1] |
|
|
| 4. |
DS20551499
|
[1] |
|
|
| 4. |
DS20551316
|
[1] |
|
|
| 5. |
DS2059662
|
[1] |
|
|
| 5. |
DS2059664
|
[1] |
|
|
| 51. |
410105-00847B
|
[1] |
|
|
| 52. |
DS0025075
|
[4] |
|
|
| 6. |
DS2059649
|
[1] |
|
|
| 6. |
DS2059695
|
[1] |
|
|
| 7. |
DS2059665
|
[1] |
|
|
| 7. |
DS2059649
|
[1] |
|
|
| 8. |
DS20551502
|
[1] |
|
|
| 8. |
DS2054571
|
[1] |
|
|
| 9. |
DS20551489
|
[1] |
|
|
| 9. |
DS20551358
|
[1] |
|
|
