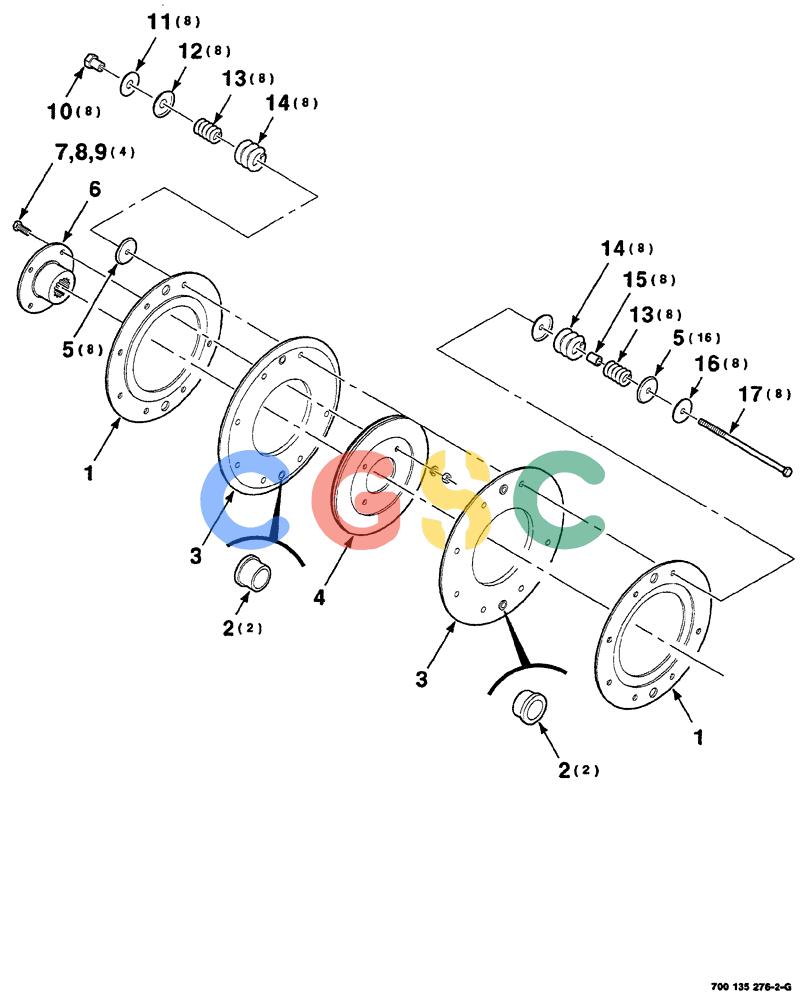

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (02-020) - CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700127888
|
[2] |
DISC
|
HFI
compression
|
| 2. |
700713280
|
[4] |
BUSHING
|
CAS
shouldered
|
| 3. |
700127884
|
[2] |
DISC
|
HFI
ASSEMBLY (Includes: Ref. 2)
|
| 4. |
700711087
|
[1] |
DISC
|
CAS
friction
|
| 5. |
700150204
|
[24] |
RETAINER
|
HFI
|
| 6. |
700150205
|
[1] |
HUB
|
HFI
WA
|
| 7. |
413-616
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 8. |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 9. |
425-106
|
[4] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 10. |
700150207
|
[8] |
SPECIAL NUT
|
HFI
shoulder, 3/8-16
|
| 11. |
495-21069
|
[8] |
WASHER,5/8"
|
CAS
wide plain, 5/8 Superseded by part number: 80299
|
| 12. |
700150209
|
[8] |
RETAINER
|
HFI
|
| 13. |
700717208
|
[16] |
SPRING
|
CAS
compression
|
| 14. |
700717209
|
[16] |
SPRING
|
CAS
compression
|
| 15. |
700129257
|
[8] |
SPACER
|
HFI
|
| 16. |
51200237
|
[8] |
WASHER
|
CAS
special
|
| 17. |
700717711
|
[8] |
BOLT
|
CAS
SCREW hex cap, special, 3/8-16 x 5
|
