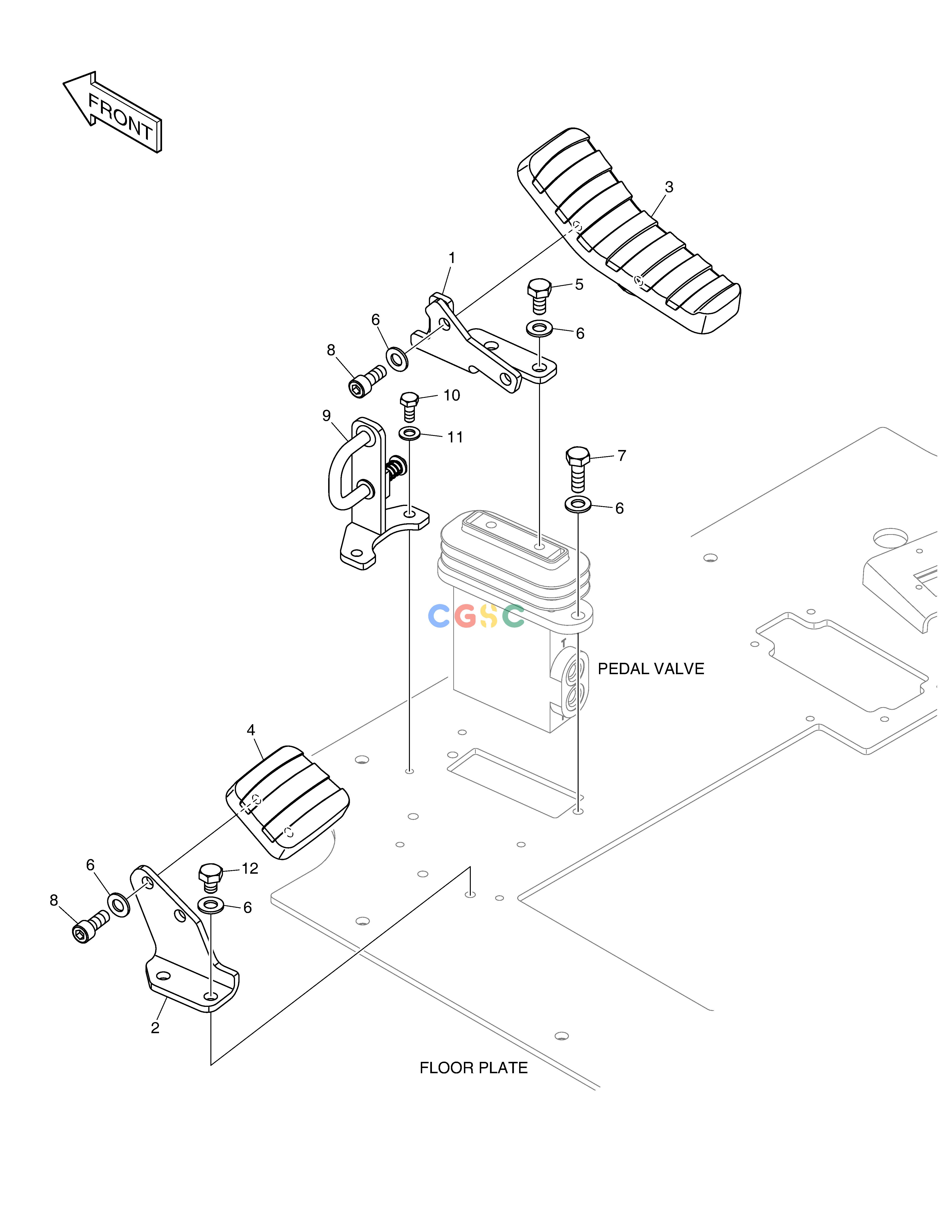

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 101101-00266E | [-] | ||
| 1. | 110435-00044A | [1] | ||
| 10. | S0508766 | [2] | BOLT | |
| 11. | S5010516 | [2] | WASHER | |
| 12. | S0511553 | [2] | BOLT M10X1.5X14 | |
| 2. | 220107-00048A | [1] | ||
| 3. | 220105-00103A | [1] | PEDAL | |
| 4. | 220107-00036B | [1] | REST,FOOT | |
| 5. | 2120-2166D4 | [2] | BOLT | |
| 6. | 2114-1898D15 | [10] | WASHER | |
| 7. | 2120-2166D1 | [2] | BOLT | |
| 8. | S2212066 | [4] | BOLT | |
| 9. | 250201-03024 | [1] |
