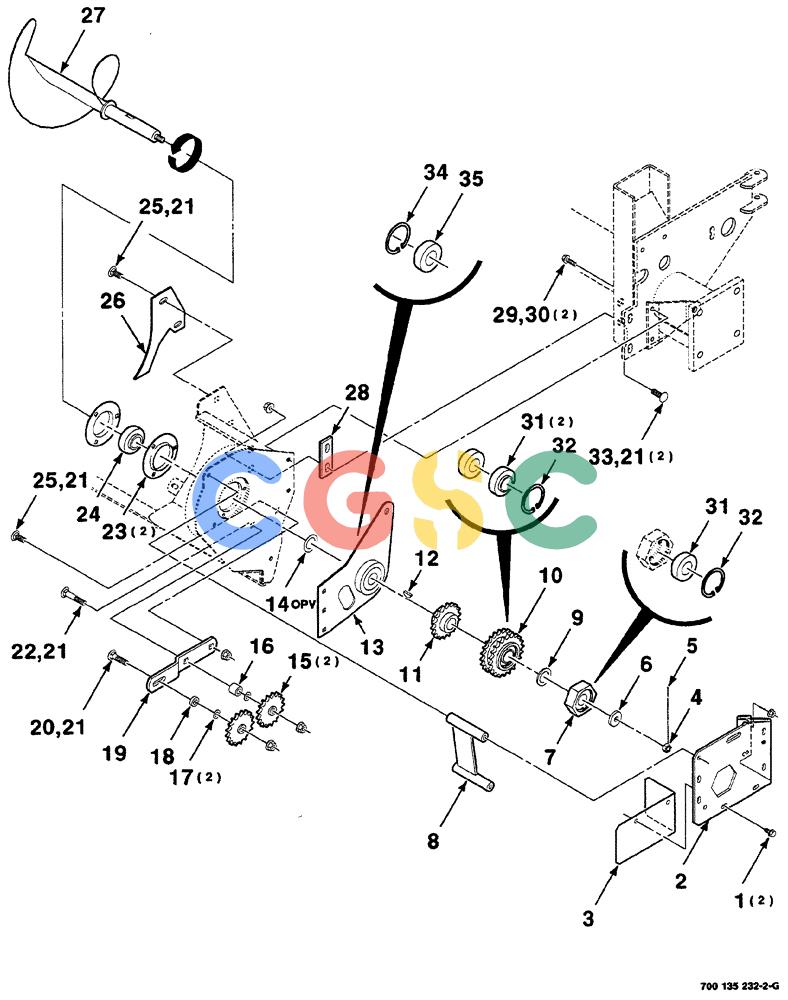

| 1. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 2. |
700150070
|
[1] |
SUPPORT
|
HFI
WA left
|
| 3. |
700135740
|
[1] |
SHIELD
|
HFI
WA left
|
| 4. |
425-138
|
[1] |
SLOTTED NUT,1/2"-20, G8
|
CAS
|
| 5. |
432-816
|
[1] |
COTTER PIN,1/8" x 1"
|
CAS
Superseded by part number: 80755
|
| 6. |
6181994
|
[1] |
WASHER
|
CAS
special
|
| 7. |
700150087
|
[1] |
HUB
|
HFI
ASSEMBLY
|
| 8. |
700150079
|
[1] |
SUPPORT
|
HFI
WA left
|
| 9. |
52324
|
[1] |
BUSHING
|
CAS
narrow rim machinery, 1-1/4 x 10 gauge Superseded by part number: 052324
|
| 10. |
700150083
|
[1] |
SPROCKET ASSY.
|
HFI
22-22 tooth
|
| 11. |
700150100
|
[1] |
SPROCKET ASSY.
|
HFI
WA 18 tooth
|
| 12. |
126-124
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1", HT
|
CAS
Superseded by part number: 47471
|
| 13. |
700150092
|
[1] |
SUPPORT
|
HFI
ASSEMBLY, left (Includes: Ref. 34 & 35)
|
| 14. |
495-81205
|
[1] |
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
|
CAS
BUSHING narrow rim machinery, 1-1/4 x 18 gauge
|
| 15. |
700716888
|
[2] |
SPROCKET ASSY.
|
CAS
idler, 17tooth
|
| 16. |
700150104
|
[1] |
SPACER
|
HFI
|
| 17. |
95-81100
|
[2] |
WASHER,33/64" x 7/8" x .049"
|
CAS
BUSHING narrow rim machinery, 1/2 x 18 gauge Superseded by part number: 86639334
|
| 18. |
6582696
|
[1] |
SPACER
|
CAS
|
| 19. |
700150076
|
[1] |
SUPPORT
|
HFI
|
| 20. |
433-832
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
|
CAS
BOLT round head square neck, 1/2-13 x 2 Superseded by part number: 280185
|
| 21. |
231-5348
|
[6] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 22. |
591514R1
|
[1] |
CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5
|
IH
BOLT round head square neck, 1/2-13 x 2-3/4 Superseded by part number: 88955
|
| 23. |
617863R1
|
[2] |
FLANGED BEARING
|
IH
|
| 24. |
565672R92
|
[1] |
SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"
|
IH
COLLAR less Superseded by part number: 84330041
|
| 25. |
433-820
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 26. |
700135748
|
[1] |
PLATE
|
HFI
|
| 27. |
700150089
|
[1] |
AUGER
|
HFI
WA left
|
| 28. |
700135747
|
[1] |
PLATE
|
HFI
|
| 29. |
121-237
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
hex flange, 3/8-16 x 1-1/4 GR. 8 Superseded by part number: 87327172
|
| 30. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 31. |
586649R92
|
[3] |
BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W
|
IH
cylindrical Superseded by part number: 47577194
|
| 32. |
100-21244
|
[2] |
SNAP RING,2.44", Int, #244
|
CAS
Superseded by part number: 32324
|
| 33. |
433-824
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
Superseded by part number: 280420, 72187237
|
| 34. |
740415
|
[1] |
RING, SNAP
|
IH
RING SNAP retaining Superseded by part number: 70-6083T1
|
| 35. |
587015R92
|
[1] |
BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W
|
IH
cylindrical
|
