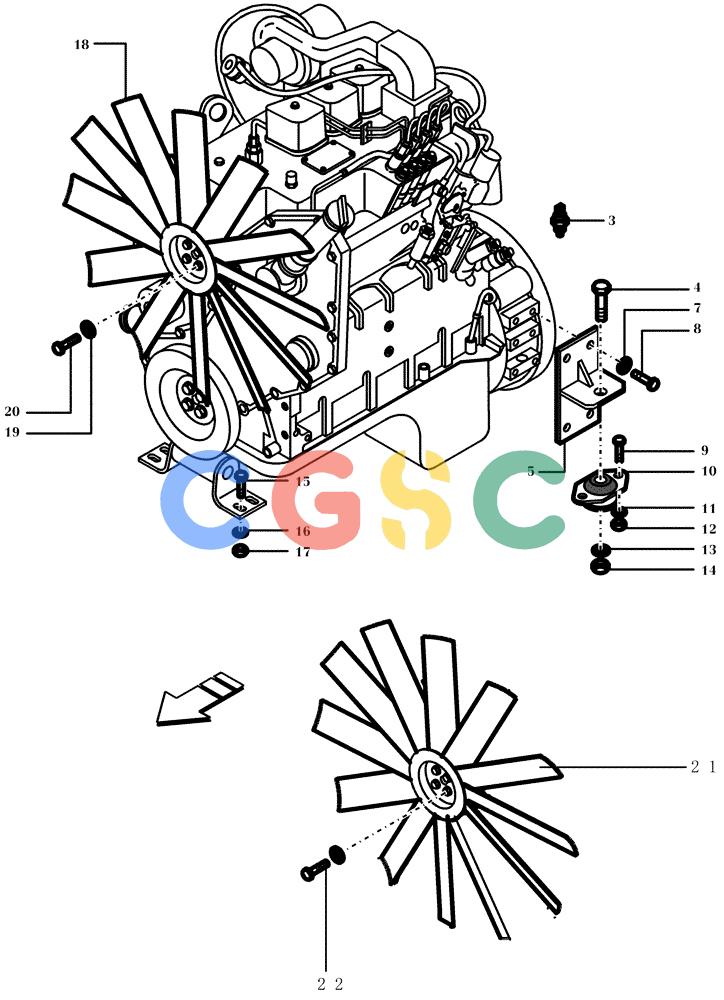

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (0.500[02]) - SUSPENSION - ENGINE DC70 - DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
458 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 76590823 | [1] | SENSOR | MACDC80, DC100 |
| 4. | 76590783 | [2] | SCREW | MAC Superseded by part number: 86562594 |
| 5. | 76590825 | [2] | SUPPORT | MACDC70, DC80 |
| 5. | 76605928 | [2] | ENGINE MOUNT | MACSUPPORT-DC100 |
| 6. | 76590728 | [8] | WASHER | MAC Superseded by part number: 895-11012 |
| 7. | 10517074 | [8] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | TTF Superseded by part number: 412123 |
| 8. | 76590781 | [8] | SCREW | MAC Superseded by part number: 615-12035 |
| 9. | 76590714 | [4] | SCREW | MAC Superseded by part number: 9515003 |
| 10. | 76590830 | [2] | INSULATOR BLOCK | MACDampener |
| 11. | 76590713 | [8] | WASHER | MAC Superseded by part number: 14496621 |
| 12. | 76590715 | [4] | NUT | MACSELF-LOCKING |
| 13. | 76590745 | [4] | WASHER | MAC Superseded by part number: 8206393 |
| 14. | 76590744 | [4] | NUT | MACSELF-LOCKING Superseded by part number: 12577521 |
| 15. | 76592865 | [4] | SCREW | MAC Superseded by part number: 8900127036 |
| 16. | 76590716 | [4] | WASHER | MAC |
| 18. | 76592866 | [1] | BLOWER | MAC12 BLADES - STD FOR DC70 |
| 18. | 75128809 | [1] | FAN | NH9 BLADES - STD. FOR DC 80; OPTIONAL FOR DC70 |
| 18. | 76605929 | [1] | BLOWER | MAC- DC100 Superseded by part number: 75128809 |
| 19. | 76598283 | [4] | LOCK WASHER | MAC Superseded by part number: 11198374 |
| 20. | 76592867 | [4] | SCREW | MAC Superseded by part number: 83931335 |
| 21. | 75131071 | [1] | FAN | NHOPTIONAL REVERSIBLE FAN |
| 22. | 73171494 | [4] | 12 PT SCREW | BEROPTIONAL BOLTS USED ONLY ON REVERSIBLE FAN Superseded by part number: 974642 |
