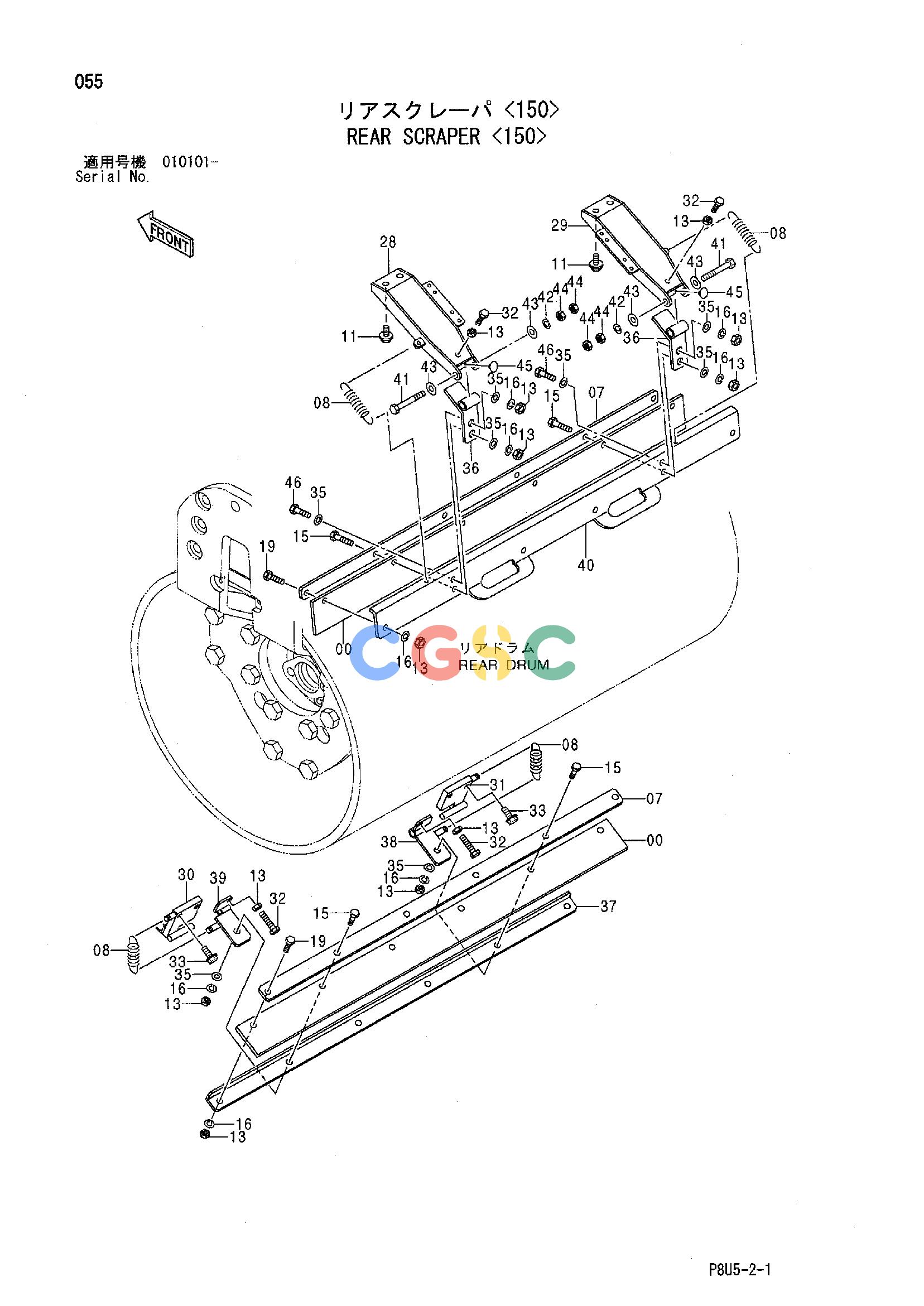

日立零件查询（CC150C-2）REAR SCRAPER <150> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
637 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425431 | [2] | BLADE | |
| 07. | 425567 | [2] | PLATE | |
| 08. | 425434 | [4] | SPRING | |
| 11. | 500029 | [4] | BOLT;SEMS | |
| 13. | 570006 | [18] | NUT | |
| 15. | 500161 | [4] | BOLT | |
| 16. | 947887 | [14] | WASHER;SPRING | |
| 19. | 500030 | [8] | BOLT | |
| 28. | 426065 | [1] | BRACKET | |
| 29. | 426066 | [1] | BRACKET | |
| 30. | 426078 | [1] | BRACKET | |
| 31. | 426079 | [1] | BRACKET | |
| 32. | 425842 | [4] | BOLT | |
| 33. | 500031 | [4] | BOLT;SEMS | |
| 35. | 947324 | [8] | WASHER;PLANE | |
| 36. | 426087 | [2] | BRACKET | |
| 37. | 425567 | [1] | BRACKET | |
| 38. | 426080 | [1] | BRACKET | |
| 39. | 426081 | [1] | BRACKET | |
| 40. | 426006 | [1] | BRACKET | |
| 41. | 500122 | [2] | BOLT | |
| 42. | 947888 | [2] | WASHER;SPRING | |
| 43. | 947325 | [4] | WASHER;PLANE | |
| 44. | 570007 | [4] | NUT | |
| 45. | 425118 | [2] | RUBBER;CUSHION | |
| 46. | 500029 | [2] | BOLT | |
