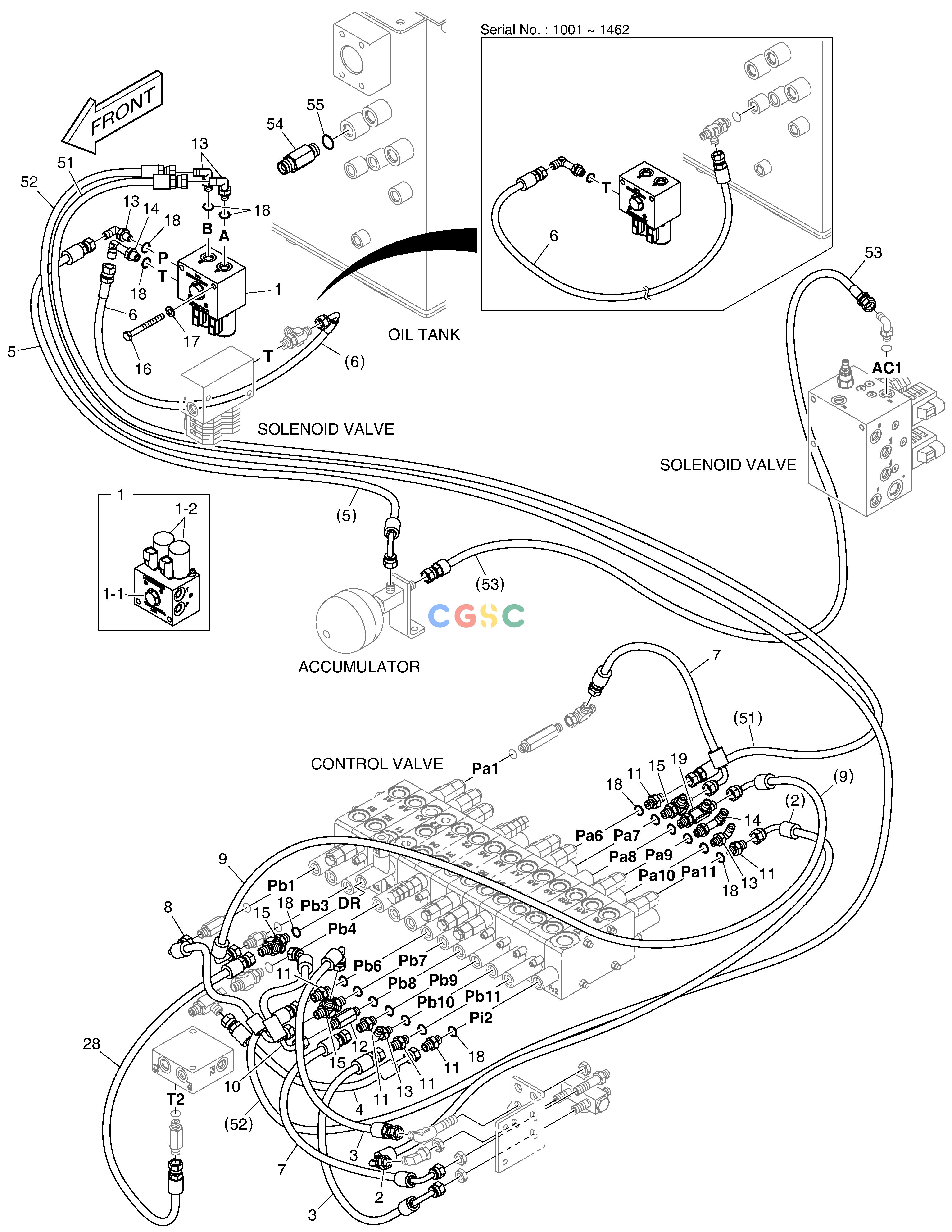

斗山零件查询PILOT PIPING - TWO WAY(1) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09727
|
[-] |
|
|
| 1. |
410116-00202A
|
[1] |
|
|
| 1-1. |
101507-00168
|
[1] |
|
|
| 1-2. |
410116-01205
|
[2] |
|
|
| 10. |
DS2090053
|
[1] |
|
|
| 11. |
2181-1126D14
|
[6] |
ADAPTER
|
|
| 12. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 13. |
2181-1702D4
|
[5] |
ELBOW
|
|
| 14. |
DS2281082
|
[2] |
ELBOW
|
|
| 15. |
2181-1951D1
|
[3] |
TEE
|
|
| 16. |
S0556866
|
[2] |
BOLT
|
|
| 17. |
S5000516
|
[2] |
|
|
| 18. |
S8000111
|
[18] |
O-RING
|
|
| 19. |
DS2371083
|
[1] |
|
|
| 2. |
DS2091185
|
[1] |
|
|
| 28. |
DS2094060
|
[1] |
HOSE
|
|
| 3. |
DS2093208
|
[2] |
HOSE
|
|
| 4. |
DS2092017
|
[1] |
HOSE
|
|
| 5. |
DS2093043
|
[1] |
HOSE
|
|
| 51. |
DS2094425
|
[1] |
|
|
| 52. |
DS2094085
|
[1] |
HOSE
|
|
| 53. |
DS2094320
|
[1] |
HOSE
|
|
| 54. |
DS2213174
|
[1] |
ADAPTER
|
|
| 55. |
S8000181
|
[1] |
O-RING
|
|
| 6. |
DS2094027
|
[1] |
HOSE
|
|
| 6. |
DS2093013
|
[1] |
HOSE
|
|
| 7. |
DS2093254
|
[2] |
HOSE
|
|
| 8. |
DS2091154
|
[1] |
HOSE
|
|
| 9. |
DS2091339
|
[1] |
|
|
