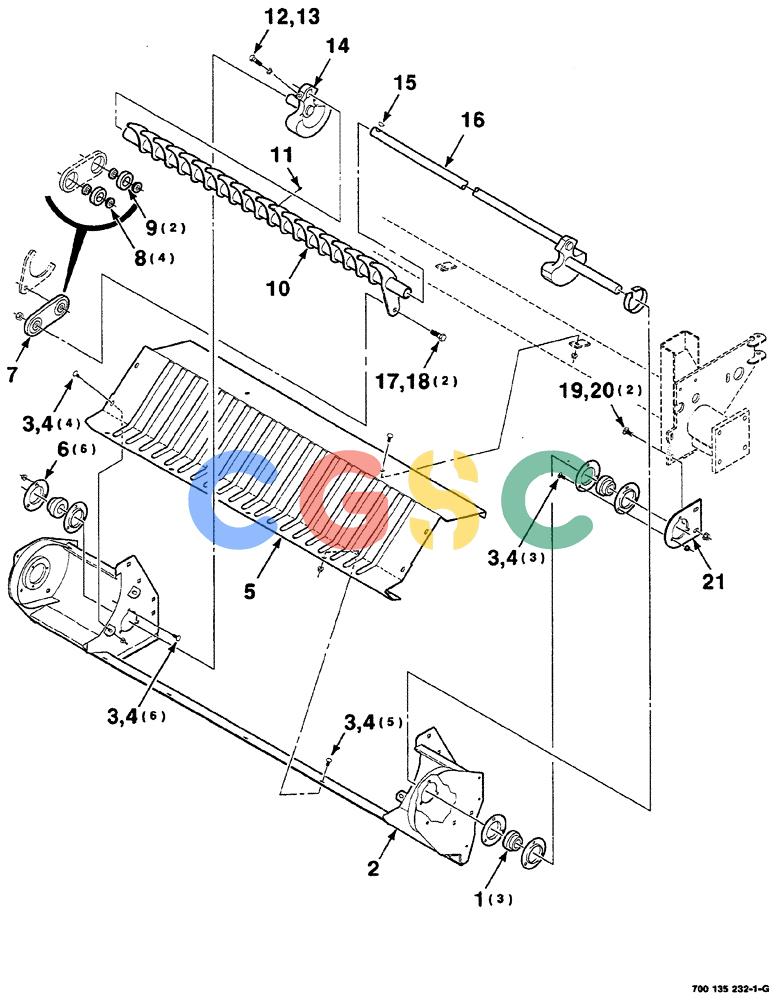

| 1. |
700708091
|
[3] |
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
|
CAS
spherical Superseded by part number: 47577188, 47066
|
| 2. |
700135712
|
[1] |
FRAME
|
HFI
WA stuffer
|
| 3. |
434-616
|
[18] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 4. |
232-5316
|
[18] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 5. |
700135710
|
[1] |
GRATE
|
HFI
|
| 6. |
617863R1
|
[6] |
FLANGED BEARING
|
IH
|
| 7. |
700132212
|
[1] |
LINK
|
HFI
ASSEMBLY (Includes: Ref. 8 and 9)
|
| 8. |
700124038
|
[4] |
BUSHING,16.27mm ID x 34.92mm OD x 10mm L
|
CAS
BEARING
|
| 9. |
CAS
|
[2] |
cylindrical
|
|
| 10. |
700135732
|
[1] |
SHAFT ASSY.
|
HFI
stuffer WA Superseded by part number: 700155676
|
| 11. |
86636814
|
[1] |
LUBE NIPPLE,1/4"-28 x .52" lg
|
GI
Superseded by part number: 88775
|
| 12. |
413-828
|
[1] |
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707516, 72187217
|
| 13. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 14. |
700132088
|
[1] |
CRANK
|
HFI
WA idler, right
|
| 15. |
126-124
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1", HT
|
CAS
Superseded by part number: 47471
|
| 16. |
700135729
|
[1] |
CRANK
|
HFI
WA drive, left Superseded by part number: 700155672
|
| 17. |
413-1032
|
[2] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
Superseded by part number: 86505999
|
| 18. |
230-41110
|
[2] |
LOCK NUT,5/8"-11, GA
|
CAS
hex top lock, 5/8-11 GR/B Superseded by part number: 85700693
|
| 19. |
433-820
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 20. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 21. |
700135946
|
[1] |
PLATE
|
HFI
Superseded by part number: 700155699
|
