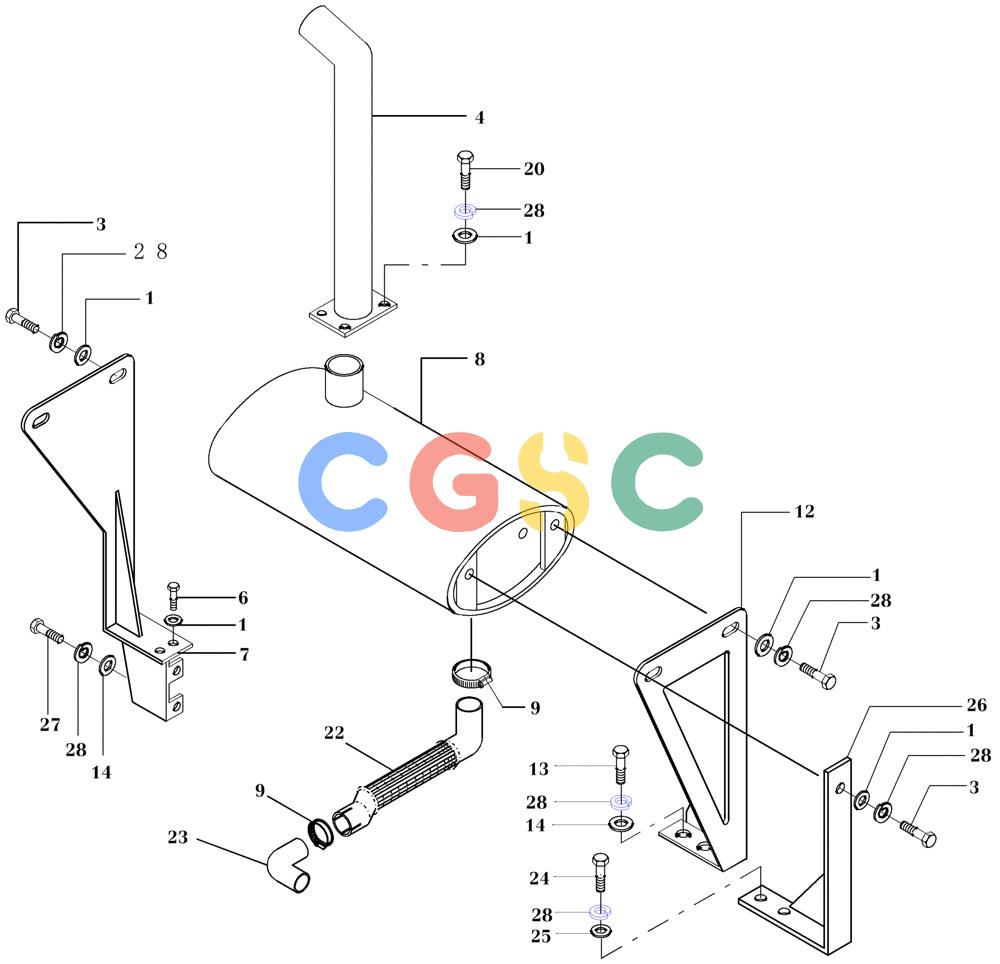

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (0.530[01D]) - MUFFLER - DC80 STD. S/N 13141056 & UP; LGP S/N 13145016 & UP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
235 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590716 | [10] | WASHER | MAC |
| 3. | 76590946 | [5] | SCREW | LEC |
| 4. | 76595986 | [1] | EXHAUST SYSTEM PIPE | MACTUBE, EXHAUST |
| 6. | 76606982 | [2] | SCREW | MAC Superseded by part number: 9515003 |
| 7. | 76598213 | [1] | SUPPORT | MAC |
| 8. | 76598726 | [1] | MUFFLER | MAC |
| 9. | 76595987 | [2] | CLAMP | MAC |
| 12. | 76598238 | [1] | SUPPORT | MAC |
| 13. | 76590733 | [2] | SCREW | MAC Superseded by part number: 11112424 |
| 14. | 76590728 | [2] | WASHER | MAC Superseded by part number: 895-11012 |
| 20. | 76590719 | [4] | SCREW | MAC Superseded by part number: 9706704 |
| 22. | 76598512 | [1] | FLEXIBLE HOSE | MACTUBE, FLEX |
| 23. | 76598214 | [1] | FLEXIBLE HOSE | MACSLEEVE Superseded by part number: 76605856 |
| 24. | 76592877 | [2] | SCREW | MAC Superseded by part number: 412215 |
| 25. | 76590847 | [2] | WASHER | MAC Superseded by part number: 10519624 |
| 26. | 76601100 | [1] | SUPPORT | MAC |
| 27. | 76607070 | [2] | SCREW | MAC Superseded by part number: 43252 |
| 28. | 76590721 | [2] | LOCK WASHER | MACWASHER, LOCK |
| 29. | 76591021 | [2] | LOCK WASHER | MACWASHER, LOCK |
