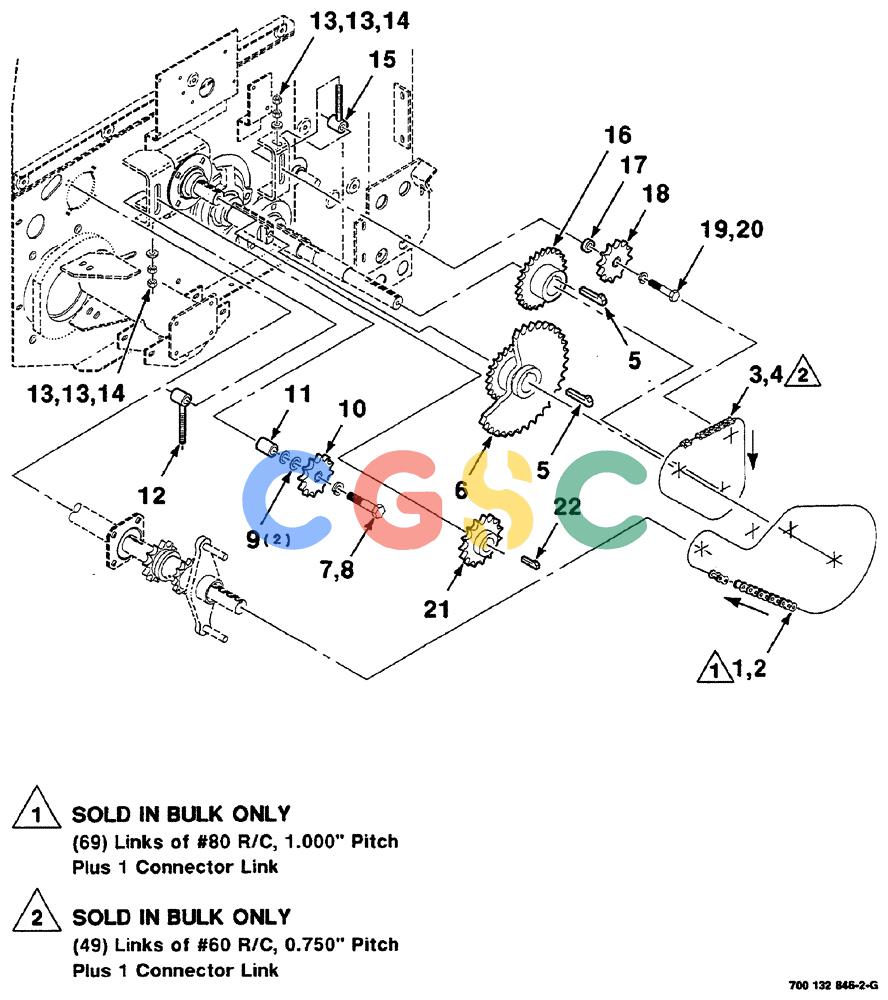

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (02-038) - ROLLER DRIVE ASSEMBLY (LOWER) S.N. CFH0156400 AND LATER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
654437R91
|
[1] |
CHAIN (AG)
|
IH
roller, #80 (10 foot bulk)
|
| 2. |
241-1418
|
[1] |
SPRING CLIP
|
CAS
LINK connector, #80 R/C
|
| 3. |
611362R91
|
[1] |
CHAIN (AG)
|
IH
roller, #60 (10 foot bulk) Superseded by part number: 611362R91X
|
| 4. |
241-1316
|
[1] |
LINK,19.05mm Pitch
|
CAS
connector, #60 R/C
|
| 5. |
61747
|
[2] |
KEY
|
CAS
gib, 1/2 x 2-1/2
|
| 6. |
700150109
|
[1] |
SPROCKET ASSY.
|
HFI
WA double, 23 and 36 tooth
|
| 7. |
413-1272
|
[1] |
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
|
CAS
SCREW hex cap, 3/4-10 x 4-1/2 Superseded by part number: 88007
|
| 8. |
492-11075
|
[1] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 9. |
95-81182
|
[2] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
BUSHING narrow rim machinery, 3/4 x 14 gauge
|
| 10. |
747931
|
[1] |
DECAL
|
CAS
idler, 12 tooth Superseded by part number: 51200277, 51200277, NLS
|
| 11. |
700132976
|
[1] |
SPACER
|
HFI
|
| 12. |
700150105
|
[1] |
SPECIAL BOLT
|
HFI
DRAW WA
|
| 13. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 14. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened plain, 1/2
|
| 15. |
700135548
|
[1] |
SPECIAL BOLT
|
HFI
DRAW WA
|
| 16. |
700150114
|
[1] |
SPROCKET ASSY.
|
HFI
WA 25 tooth
|
| 17. |
700110610
|
[1] |
SPACER
|
CAS
|
| 18. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
idler, 15 tooth
|
| 19. |
413-1048
|
[1] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 20. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 21. |
700132988
|
[1] |
SPROCKET ASSY.
|
HFI
WA 15 tooth
|
| 22. |
Q3947
|
[1] |
KEY,Gib, 3/8" Sq x 1 1/2"
|
IH
|
