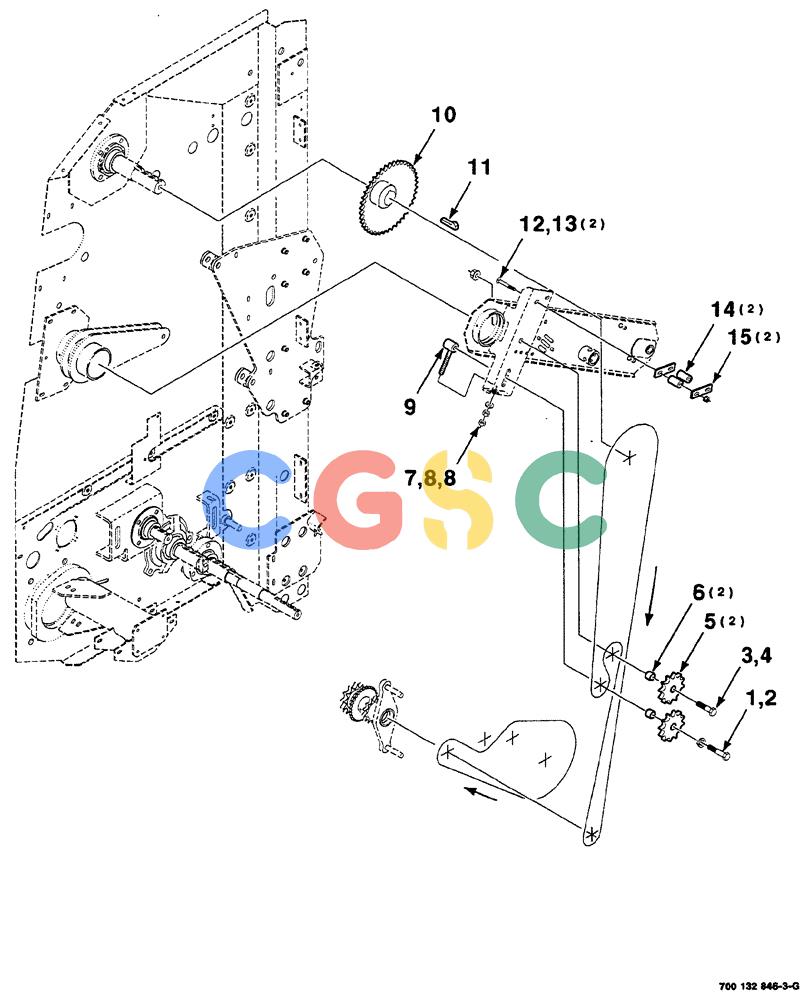

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (02-042) - ROLLER DRIVE ASSEMBLY (UPPER) S.N. CFH0156400 AND LATER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
753 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-1048
|
[1] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 2. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 3. |
413-1040
|
[1] |
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 280233
|
| 4. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
Superseded by part number: 84180923
|
| 5. |
541857R92
|
[2] |
SPROCKET,15T
|
IH
IDLER-ASM, 60P15T
|
| 6. |
6619274
|
[2] |
BUSHING
|
HFI
SPACER
|
| 7. |
705541
|
[1] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened plain, 1/2
|
| 8. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 9. |
700135548
|
[1] |
SPECIAL BOLT
|
HFI
DRAW WA
|
| 10. |
700135033
|
[1] |
SPROCKET ASSY.
|
HFI
WA 60B42
|
| 11. |
861088
|
[1] |
BUCKET TOOTH KEY
|
IH
gib, 1/2 x 2
|
| 12. |
433-648
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5
|
CAS
BOLT round head square neck, 3/8-16 x 3 Superseded by part number: 280806
|
| 13. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 14. |
700716908
|
[2] |
GUIDE
|
CAS
CHAIN
|
| 15. |
700716907
|
[2] |
PLATE
|
CAS
guide
|
