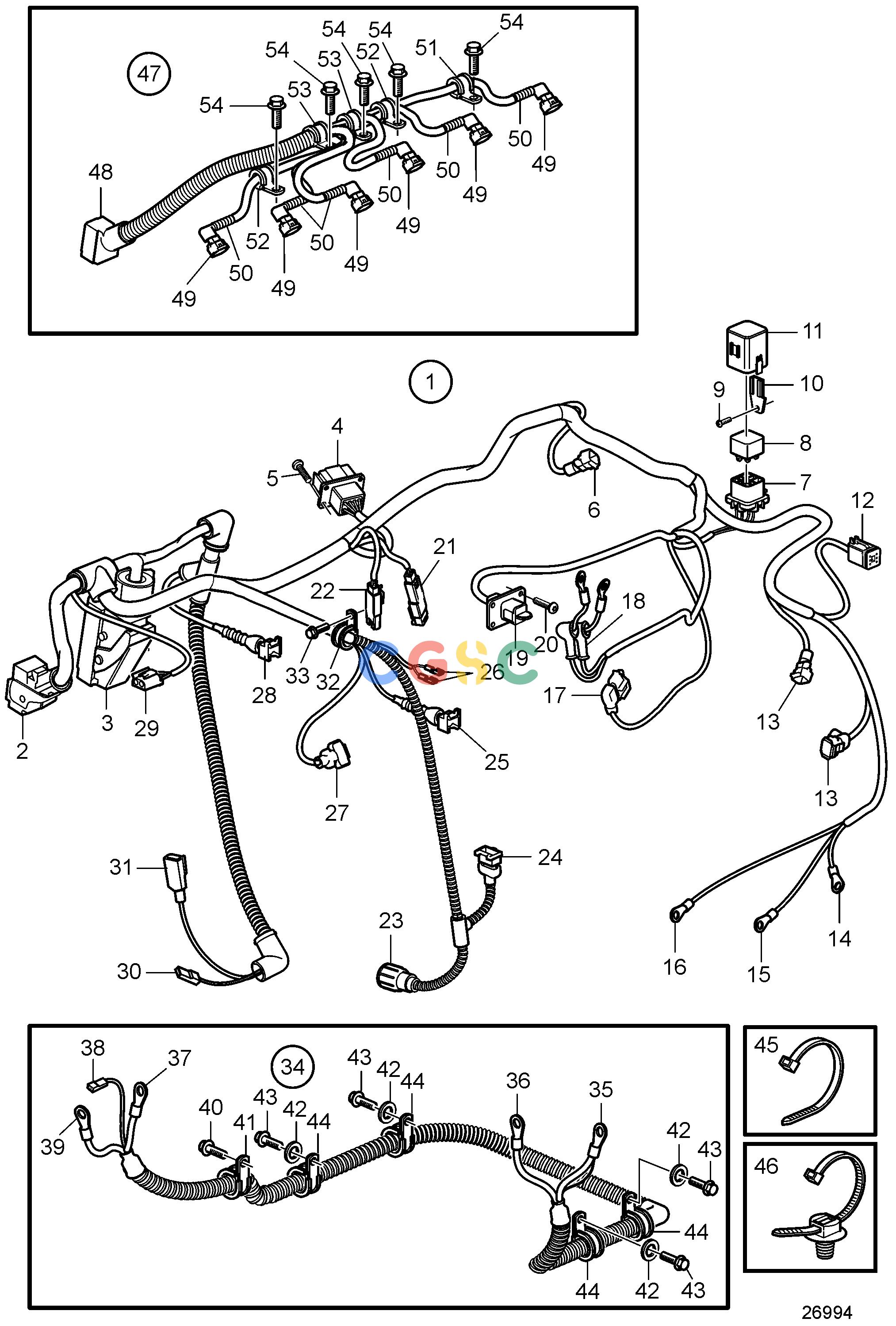

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Electrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21857956
|
[1] |
Wiring harness
|
|
| 2. |
874565
|
[1] |
Coupling piece, 36-pole
|
EDC-unit
|
| 3. |
874564
|
[1] |
Coupling piece, 89-pole
|
EDC-unit
|
| 4. |
874432
|
[1] |
Tab housing
|
|
| 5. |
968476
|
[4] |
Flange screw
|
|
| 6. |
874368
|
[1] |
Receptacle housing
|
|
| 7. |
3587172
|
[1] |
Relay socket
|
|
| 8. |
21400091
|
[1] |
Relay
|
12V
|
| 8. |
3171420
|
[1] |
Relay
|
24V
|
| 9. |
968476
|
[1] |
Flange screw
|
|
| 10. |
21492847
|
[1] |
Relay bracket
|
|
| 11. |
21494263
|
[1] |
Relay box
|
|
| 12. |
874957
|
[1] |
Housing
|
|
| 13. |
874368
|
[2] |
Receptacle housing, pressure/temp
|
2-pole
|
| 14. |
978969
|
[1] |
Cable terminal
|
|
| 15. |
978970
|
[1] |
Cable terminal
|
|
| 16. |
970790
|
[1] |
Cable terminal
|
|
| 17. |
874456
|
[1] |
Receptacle housing
|
|
| 18. |
829200
|
[2] |
Protective cap
|
|
| 19. |
992330
|
[1] |
Housing
|
|
| 20. |
968476
|
[4] |
Flange screw
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
3589939
|
[1] |
Connector
|
Replaced Part, Se Section 41414
|
| 24. |
977929
|
[1] |
Housing
|
|
| 25. |
976256
|
[1] |
Housing, alternator
|
|
| 26. |
949597
|
[2] |
Housing
|
|
| 27. |
874455
|
[2] |
Receptacle housing
|
|
| 28. |
976256
|
[1] |
Housing
|
|
| 29. |
970753
|
[1] |
Housing
|
|
| 30. |
949597
|
[1] |
Housing
|
|
| 31. |
1624477
|
[1] |
Housing
|
|
| 32. |
952629
|
[1] |
Clamp, temperature
|
|
| 33. |
946501
|
[1] |
Flange screw
|
|
| 34. |
21736443
|
[1] |
Wiring harness
|
|
| 35. |
978966
|
[1] |
Cable terminal
|
|
| 36. |
940336
|
[1] |
Cable terminal
|
|
| 37. |
976478
|
[1] |
Cable terminal
|
|
| 38. |
949597
|
[1] |
Housing
|
|
| 39. |
976477
|
[1] |
Cable terminal
|
|
| 40. |
946501
|
[1] |
Flange screw
|
|
| 41. |
952634
|
[1] |
Clamp, alternator
|
|
| 42. |
955894
|
[4] |
Washer
|
|
| 43. |
946440
|
[4] |
Flange screw, alternator
|
|
| 44. |
945081
|
[4] |
Clamp, starter motor
|
|
| 45. |
948211
|
[1] |
Cable tie, starter motor
|
|
| 46. |
980881
|
[1] |
Cable tie, starter motor
|
|
| 47. |
3809879
|
[1] |
Wiring harness
|
|
| 48. |
874569
|
[1] |
Retainer
|
|
| 49. |
874368
|
[4] |
Receptacle housing
|
|
| 50. |
3809871
|
[4] |
Adapter
|
|
| 51. |
952624
|
[1] |
Clamp
|
|
| 52. |
952627
|
[1] |
Clamp
|
|
| 52. |
952632
|
[1] |
Clamp
|
|
| 53. |
952629
|
[2] |
Clamp
|
|
| 54. |
946501
|
[5] |
Flange screw
|
|
