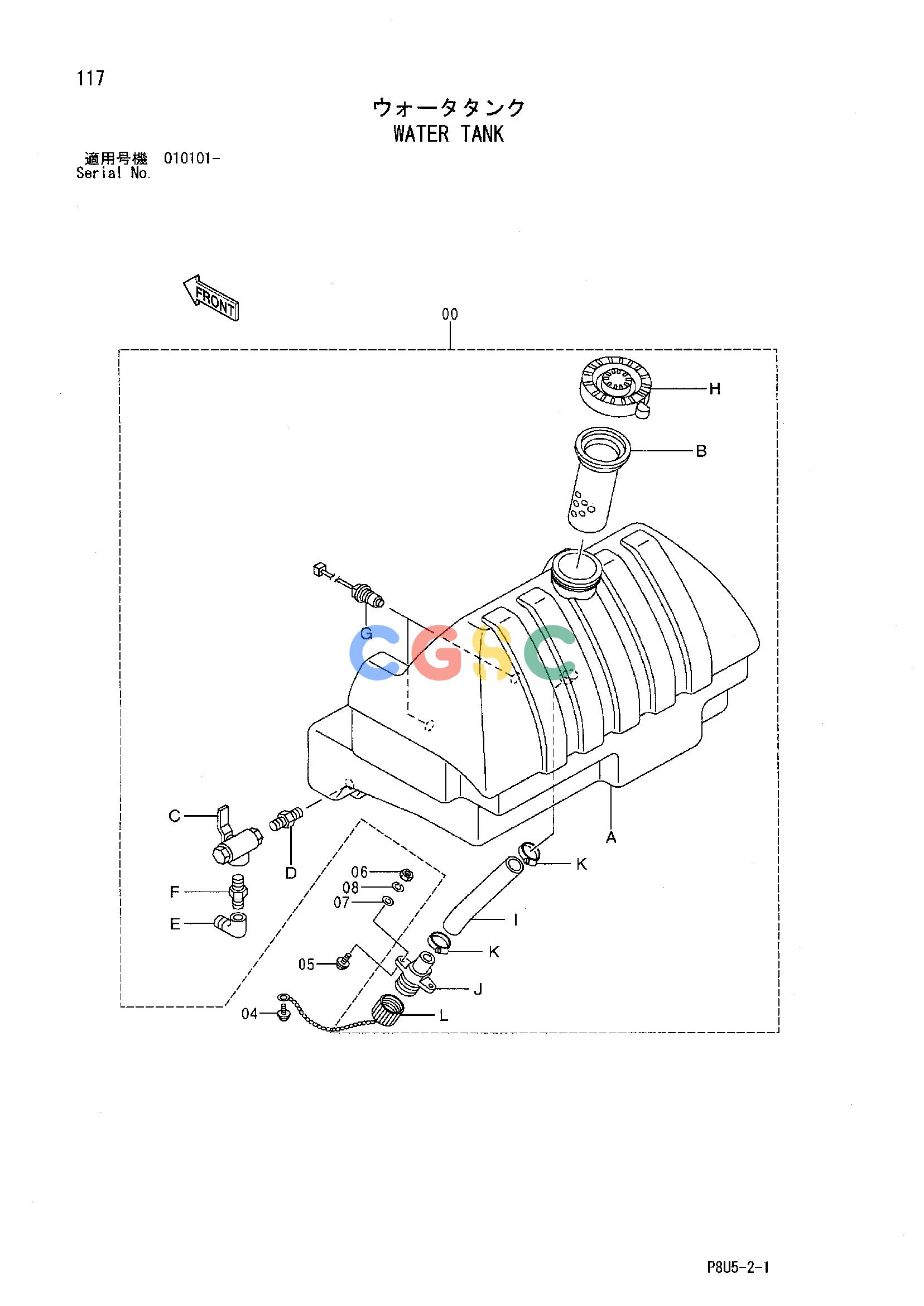

日立零件查询（CC150C-2）WATER TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426043 | [1] | TANK;WATER | |
| 00A. | ++++++ | [1] | TANK;WATER | |
| 00B. | 425179 | [1] | STRAINER | |
| 00C. | 438471 | [1] | VALVE;BALL | |
| 00D. | 947418 | [1] | ADAPTER | |
| 00E. | 438582 | [1] | FITTING;HOSE | |
| 00F. | 947406 | [1] | REDUCER | |
| 00G. | 425486 | [2] | SWITCH;LEVEL | |
| 00H. | 425180 | [1] | CAP | |
| 00I. | 424349 | [1] | HOSE;WATER | |
| 00J. | 426048 | [1] | SOCKET | |
| 00K. | 448186 | [2] | CLAMP;HOSE | |
| 00L. | 425286 | [1] | CAP | |
| 04. | 500048 | [1] | BOLT;SEMS | |
| 05. | 947613 | [2] | BOLT;SEMS | |
| 06. | 570004 | [2] | NUT | |
| 07. | 947322 | [2] | WASHER;PLANE | |
| 08. | 947886 | [2] | WASHER;SPRING | |
