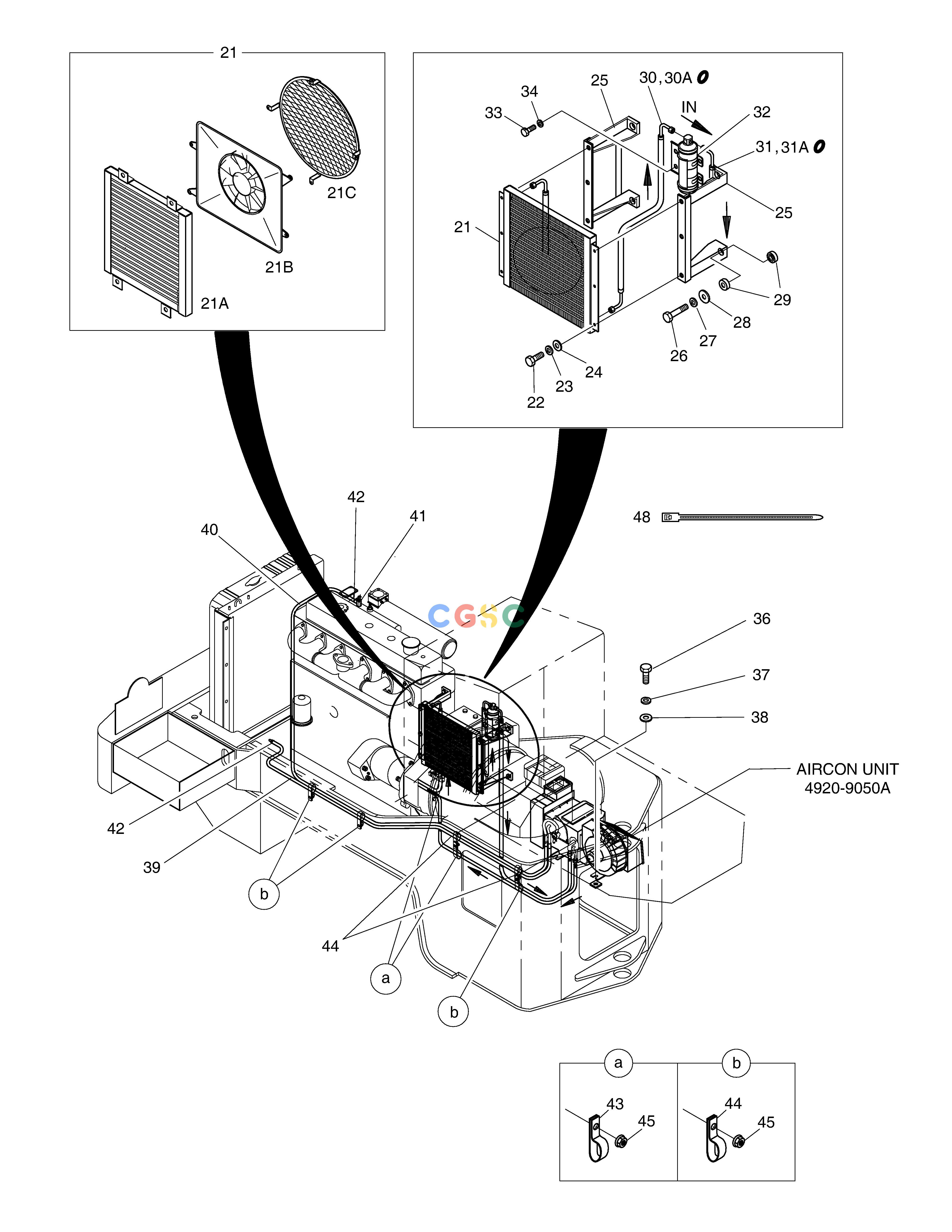

斗山零件查询AIRCONDITIONER(2) MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
754 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
920-00014
|
[-] |
COOLER & HEATER ASS'Y
|
|
| 21. |
2520-6004
|
[1] |
CONDENSER ASS'Y
|
|
| 21A. |
2520-6005
|
[1] |
CONDENSER CORE ASS'Y
|
|
| 21B. |
2538-6018
|
[1] |
FAN MOTOR ASS'Y
|
|
| 21C. |
2520-6006
|
[1] |
NET;CONDENSER
|
|
| 22. |
S0512053
|
[6] |
BOLT
|
|
| 23. |
S5102603
|
[6] |
. WASHER
|
|
| 24. |
S5010613
|
[6] |
WASHER
|
|
| 25. |
195-00140
|
[2] |
BRACKET;CONDENSER
|
|
| 26. |
S0558553
|
[4] |
BOLT;HEX.
|
|
| 27. |
S5102603
|
[4] |
. WASHER
|
|
| 28. |
2114-1058D1
|
[4] |
WASHER
|
|
| 29. |
2512-1077
|
[8] |
RUBBER;CUSHION
|
|
| 30. |
2185-1697D1
|
[1] |
HOSE;LIQUID(1) 610L
|
|
| 30A. |
2180-6090
|
[2] |
O-RING
|
|
| 31. |
4185-1775D4
|
[1] |
HOSE;LIQUID(2) 2100L
|
|
| 31A. |
2180-6090
|
[2] |
O-RING
|
|
| 32. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
|
| 33. |
S0508653
|
[2] |
BOLT
|
|
| 34. |
S5102503
|
[2] |
. WASHER
|
|
| 36. |
S0509053
|
[6] |
. BOLT
|
|
| 37. |
S5102503
|
[6] |
. WASHER
|
|
| 38. |
2114-1058D29
|
[6] |
WASHER
|
|
| 39. |
2185-1308D7
|
[1] |
HOSE;RUBBER
|
|
| 40. |
2185-1308D8
|
[1] |
HOSE 4300L
|
|
| 41. |
2186-9005
|
[1] |
COCK
|
|
| 42. |
S8450016
|
[4] |
. CLAMP
|
|
| 43. |
2124-1509D3
|
[2] |
CLIP D24/M8
|
|
| 44. |
2124-1509D6
|
[5] |
CLIP D42/M8
|
|
| 45. |
2121-1305
|
[5] |
NUT
|
|
| 48. |
2124-1622D3
|
[10] |
CLIP;BAND 280L
|
|
