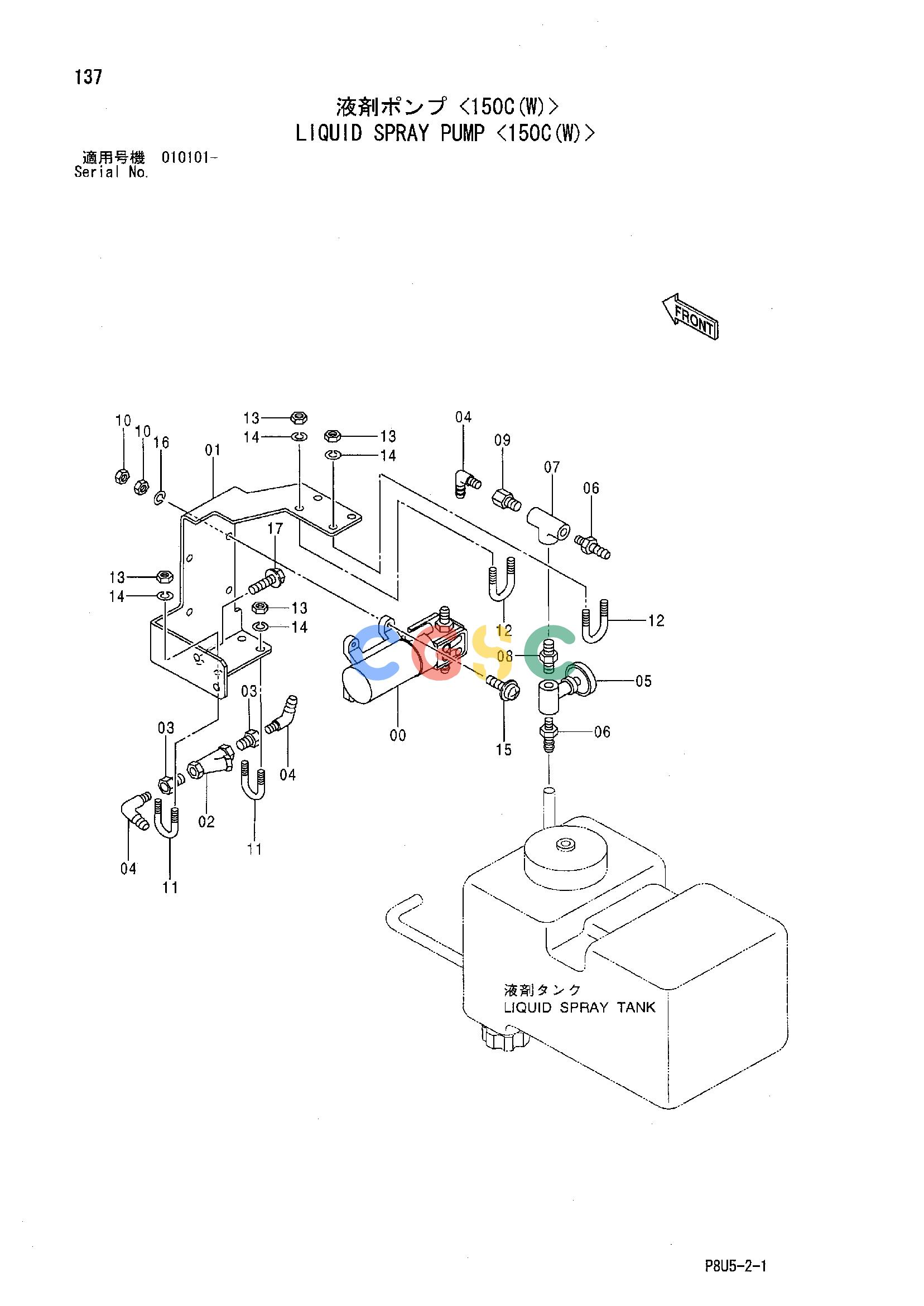

日立零件查询（CC150C-2）LIQUID SPRAY PUMP <150C(W)> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
449 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426011 | [1] | PUMP;DIAPHRAGM | |
| 01. | 426005 | [1] | BRACKET | |
| 02. | 438341 | [1] | STRAINER | |
| 03. | 435089 | [2] | BUSHING | |
| 04. | 424260 | [3] | FITTING;HOSE | |
| 05. | 438347 | [1] | NEEDLE;VALVE | |
| 06. | 439684 | [2] | FITTING;HOSE | |
| 07. | 947709 | [1] | TEE | |
| 08. | 947998 | [1] | ADAPTER | |
| 09. | 424036 | [1] | ADAPTER | |
| 10. | 947852 | [8] | NUT | |
| 11. | 947595 | [2] | BOLT;U | |
| 12. | 424435 | [2] | BOLT;U | |
| 13. | 947853 | [8] | NUT | |
| 14. | 947886 | [8] | WASHER;SPRING | |
| 15. | 947821 | [4] | SCREW | |
| 16. | 947885 | [4] | WASHER;SPRING | |
| 17. | 500043 | [2] | BOLT;SEMS | |
