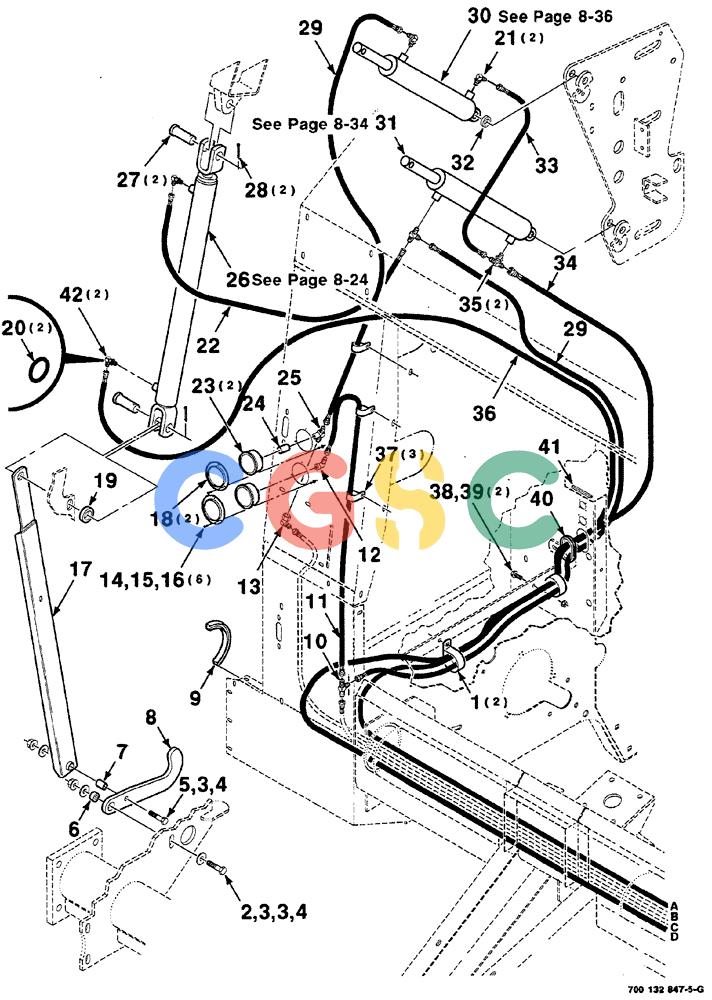

| 1. |
7041015
|
[2] |
CLAMP
|
CAS
|
| 2. |
413-832
|
[1] |
BOLT,Hex, 1/2" - 13 x 2", Gr 5
|
CAS
Superseded by part number: 9706716
|
| 3. |
700711557
|
[3] |
WASHER
|
CAS
hardened wide plain, 1/2
|
| 4. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 5. |
413-836
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 87975
|
| 6. |
700132512
|
[1] |
BUSHING
|
HFI
|
| 7. |
700132513
|
[1] |
BUSHING
|
HFI
|
| 8. |
700132511
|
[1] |
LATCH
|
HFI
|
| 9. |
700726027
|
[1] |
STRIP
|
HFI
TRIM
|
| 10. |
218-593
|
[1] |
TEE,9/16"-18, 37 Degree
|
CAS
union Superseded by part number: 72187026, 76355
|
| 11. |
700718469
|
[1] |
HYDRAULIC HOSE,0.25" ID x 55.12", SAE J516, SAE J343
|
CAS
hydraulic
|
| 12. |
218-513
|
[1] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF
|
CAS
Superseded by part number: 9402903
|
| 13. |
218-5172
|
[1] |
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC
|
CAS
Superseded by part number: 86512959
|
| 14. |
440-1068
|
[6] |
SCREW,Cross Pan Hd, #6-32 x 1/2"
|
CAS
GR. 60M Superseded by part number: 281007
|
| 15. |
492-11006
|
[6] |
LOCK WASHER,#6
|
CAS
Superseded by part number: 87276
|
| 16. |
225-14106
|
[6] |
NUT,#6-32
|
CAS
Superseded by part number: 88458, 87779111
|
| 17. |
700147502
|
[1] |
LINK
|
HFI
STRAP WA
|
| 18. |
700709292
|
[2] |
FLANGE
|
CAS
gauge, clamp Superseded by part number: 700722353
|
| 19. |
700120629
|
[1] |
SPACER
|
HFI
|
| 20. |
738468
|
[2] |
O-RING
|
IH
|
| 21. |
218-5105
|
[2] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
(Includes Ref. 20) Superseded by part number: 76344, 72186128
|
| 22. |
700716085
|
[1] |
HOSE
|
CAS
hydraulic
|
| 23. |
700709290
|
[2] |
GAUGE
|
CAS
pressure Superseded by part number: 700722353
|
| 24. |
8047003
|
[1] |
COUPLING
|
CAS
hydraulic
|
| 25. |
218-553
|
[1] |
TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br
|
CAS
TEE male run Superseded by part number: 86513032
|
| 26. |
700717929
|
[1] |
CYLINDER
|
CAS
ASSEMBLY hydraulic
|
| 27. |
700710292
|
[2] |
PIN
|
CAS
clevis, special
|
| 28. |
432-1624
|
[2] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Superseded by part number: 80753
|
| 29. |
700719683
|
[2] |
HYDRAULIC HOSE,0.38" ID x 44.29", SAE 100R17, SAE J517
|
HFI
hydraulic
|
| 30. |
700714707
|
[1] |
CYLINDER
|
CAS
ASSEMBLY hydraulic
|
| 31. |
700719621
|
[1] |
CYLINDER
|
HFI
ASSEMBLY hydraulic
|
| 32. |
700135550
|
[1] |
SPACER
|
HFI
|
| 33. |
8042715
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 787.00 mm, SAE 100R1,SAE J517,SAE J343,SAE J516
|
CAS
|
| 34. |
700719681
|
[1] |
HYDRAULIC HOSE,0.38" ID x 177.17", SAE 100R17, SAE J517
|
HFI
hydraulic
|
| 35. |
218-5243
|
[2] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Male (Includes: Ref. 20) Superseded by part number: 86513020
|
| 36. |
700716086
|
[1] |
HOSE
|
CAS
hydraulic
|
| 37. |
515-23254
|
[3] |
CLAMP,1", Insul, 3/8" Bolt
|
CAS
Line Superseded by part number: 9827902, 72187281
|
| 38. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 39. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 40. |
8027427
|
[1] |
GROMMET
|
CAS
|
| 41. |
700153662
|
[1] |
GROMMET
|
HFI
|
| 42. |
218-5106
|
[2] |
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
|
CAS
(Includes Ref. 20) Superseded by part number: 72186176, 128830
|
