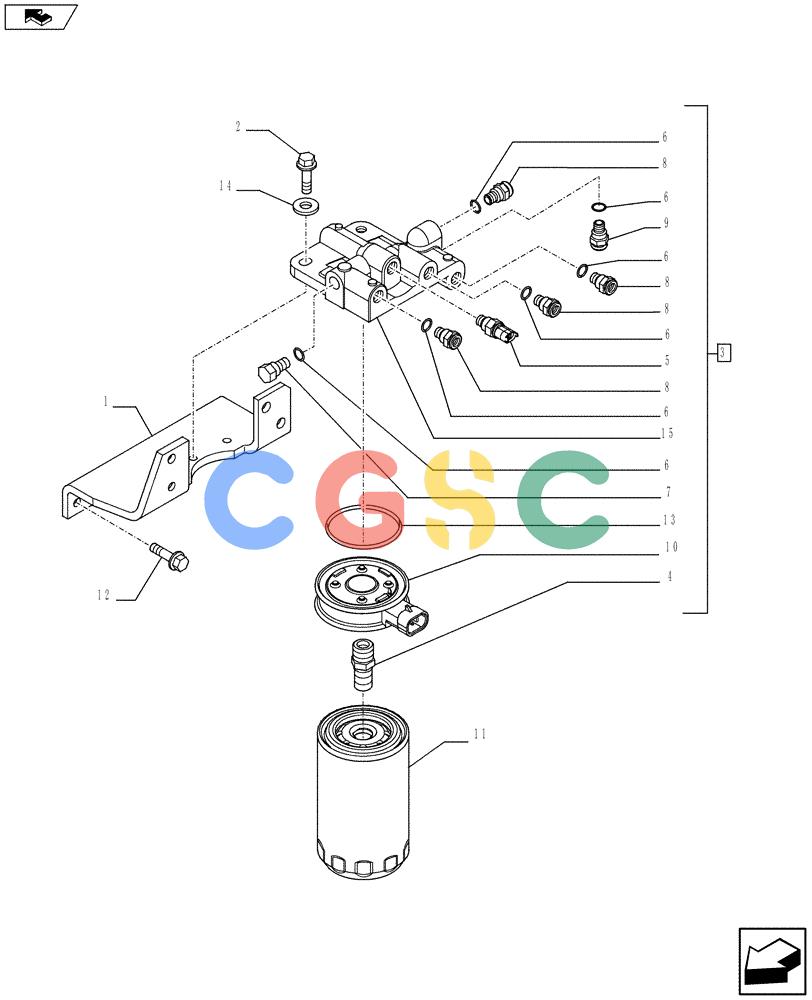

神钢零件查询(F4HFE6131 A005) - ENGINE 5801425077 - 84387924 (1/11-) (10.206.01) - FUEL FILTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
143 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 2830733 | [2] | SCREW | TORM8 x 25 |
| 3. | 2852436 | [1] | FILTER HEAD | TORASSY Superseded by part number: 504033395 |
| 4. | 4898758 | [1] | ADAPTER | TOR |
| 5. | 4897224 | [1] | SENSOR | TORTemperature |
| 6. | 4894721 | [6] | SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk | TOR |
| 7. | 4893464 | [1] | PLUG | TOR |
| 8. | 4890964 | [4] | FITTING,M12 x 1.5 | TOR |
| 9. | 4896543 | [1] | FITTING | TOR |
| 10. | 4897838 | [1] | HEATER | TOR |
| 11. | 87803197 | [1] | FUEL FILTER | BASCase Brand Superseded by part number: 84412164 |
| 13. | 4898876 | [1] | O-RING,63.1mm ID x 3.53mm Width | TOR |
| 14. | 12647104 | [2] | WASHER,8.15mm ID x 20mm OD x 3mm Thk | BAS |
