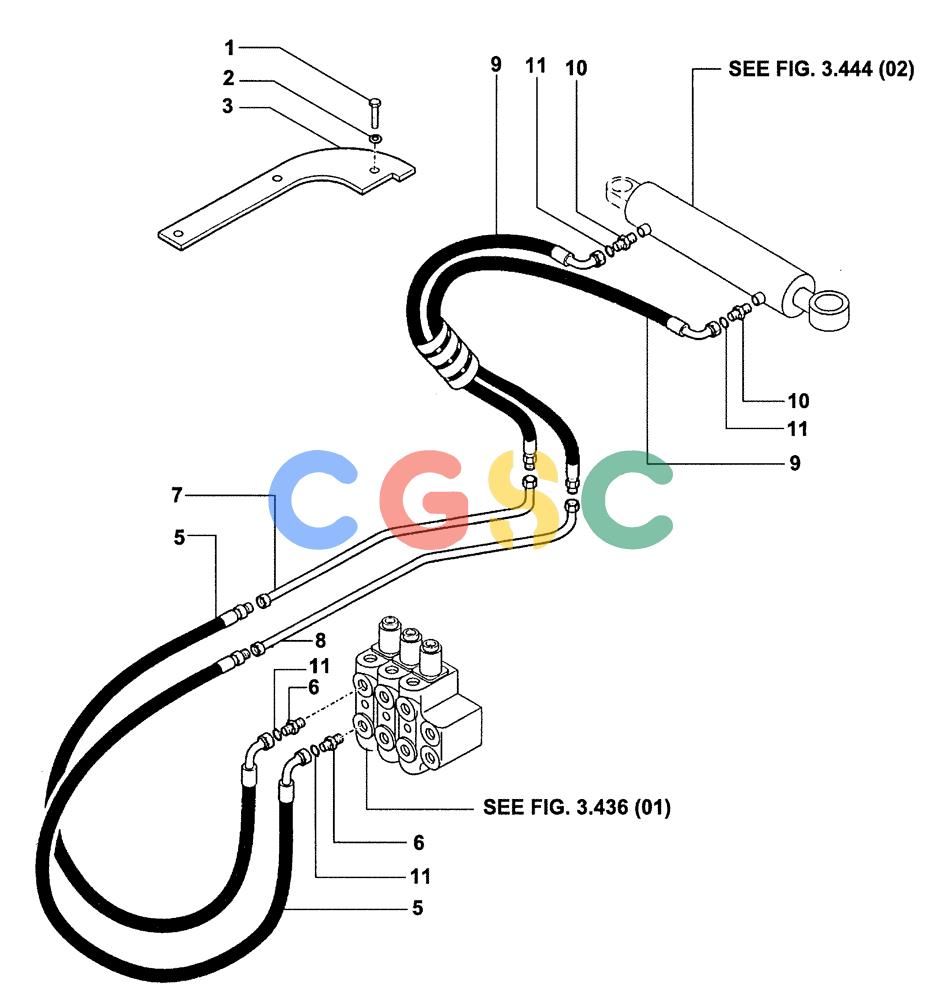

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.444[01C]) - CONTROL VALVE DISTRIBUTEUR - TILT (DC80 STD S/N 13141055 & DOWN; LGP S/N 13145015 & DOWN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
123 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590928 | [3] | SCREW | MAC Superseded by part number: 16043824 |
| 2. | 76598290 | [3] | LOCK WASHER | MAC Superseded by part number: 11194079 |
| 3. | 76598426 | [1] | SHIELD | MAC |
| 5. | 76591212 | [2] | HOSE | MAC |
| 6. | 76591181 | [2] | HYD CONNECTOR | MAC |
| 7. | 76598428 | [1] | RIGID TUBE | MAC |
| 8. | 76598427 | [1] | RIGID TUBE | MAC |
| 9. | 76591170 | [2] | HOSE | MAC |
| 10. | 76590982 | [2] | HYD CONNECTOR | MAC |
| 11. | 76596045 | [4] | SEAL | MACO-R |
