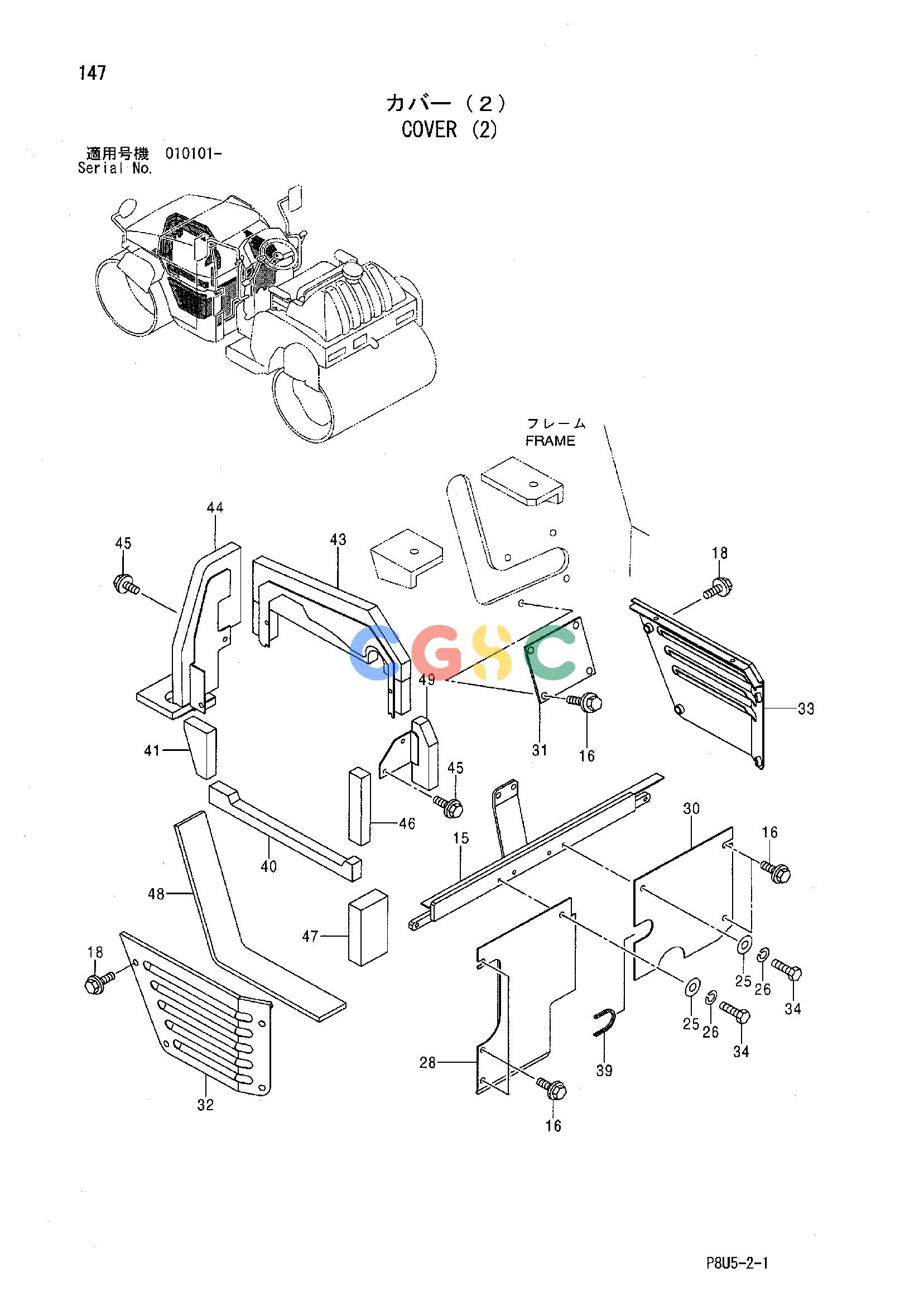

日立零件查询（CC150C-2）COVER (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
425 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 15. | 426071 | [1] | BRACKET | |
| 16. | 500029 | [9] | BOLT;SEMS | |
| 18. | 500028 | [8] | BOLT;SEMS | |
| 25. | 947324 | [2] | WASHER;PLANE | |
| 26. | 947887 | [2] | WASHER;SPRING | |
| 28. | 426062 | [1] | COVER | |
| 30. | 425794 | [1] | COVER | |
| 31. | 425659 | [1] | COVER | |
| 32. | 425742 | [1] | COVER | |
| 33. | 426009 | [1] | COVER | |
| 34. | 500048 | [2] | BOLT | |
| 39. | 425634 | [1] | SEAL;RUBBER | |
| 40. | 425703 | [1] | RUBBER | |
| 41. | 425704 | [1] | RUBBER | |
| 43. | 426070 | [1] | COVER | |
| 44. | 426063 | [1] | COVER | |
| 45. | 947619 | [2] | BOLT;SEMS | |
| 46. | 425706 | [1] | RUBBER | |
| 47. | 426016 | [1] | RUBBER | |
| 48. | 426017 | [1] | RUBBER | |
| 49. | 425791 | [1] | COVER | |
