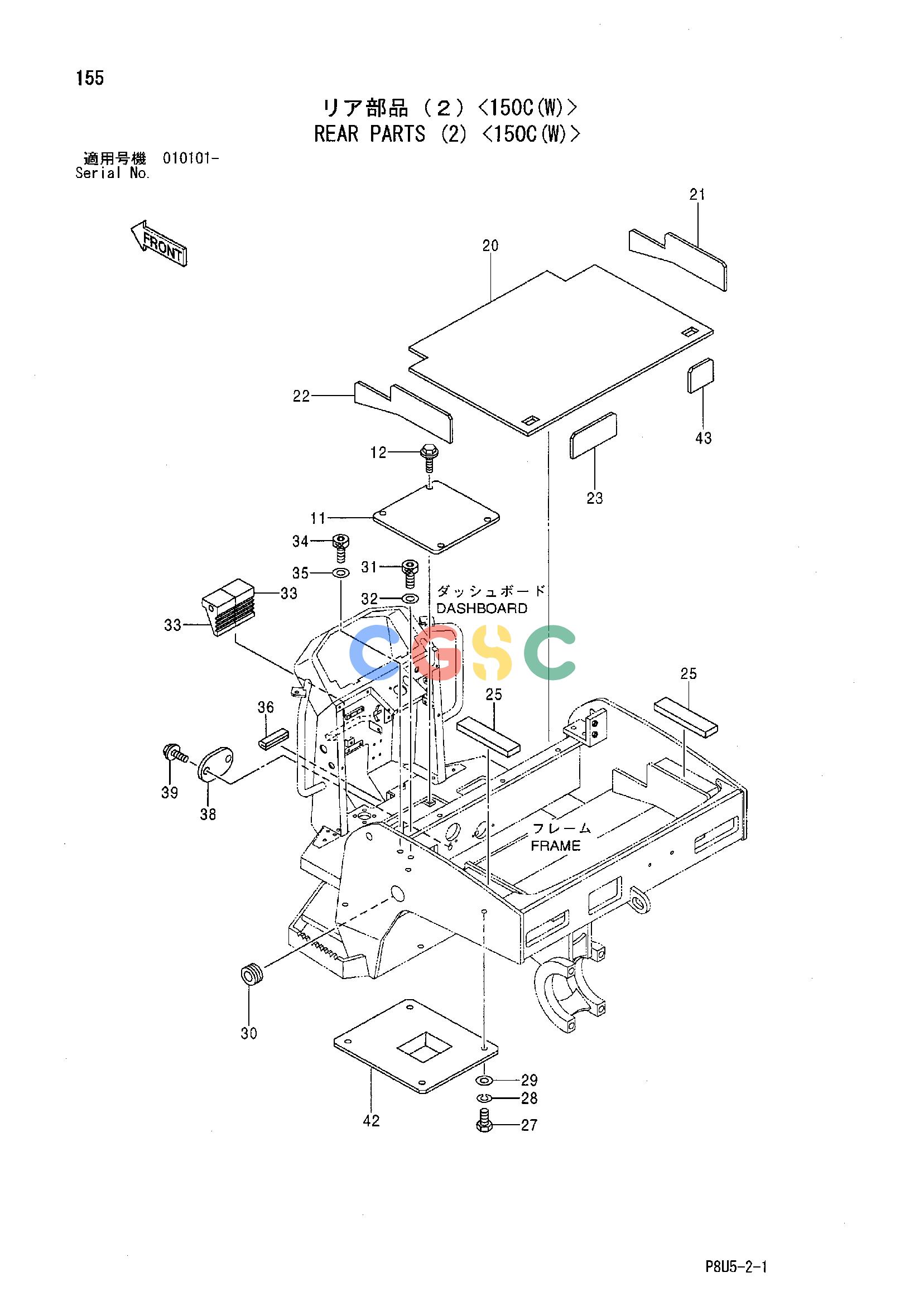

日立零件查询（CC150C-2）REAR PARTS (2) <150C(W)> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
133 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11. | 425626 | [1] | PLATE | |
| 12. | 500030 | [4] | BOLT;SEMS | |
| 20. | 426040 | [1] | RUBBER | |
| 21. | 426041 | [1] | RUBBER | |
| 22. | 426042 | [1] | RUBBER | |
| 23. | 425681 | [1] | RUBBER | |
| 25. | 426045 | [2] | SEAT;RUBBER | |
| 27. | 500028 | [4] | BOLT | |
| 28. | 947887 | [4] | WASHER;SPRING | |
| 29. | 947324 | [4] | WASHER;PLANE | |
| 30. | 424110 | [1] | BUSHING;RUBBER | |
| 31. | 425555 | [1] | BOLT;SOCKET | |
| 32. | 446281 | [1] | WASHER | |
| 33. | 438557 | [2] | SPOPPER | |
| 34. | 425556 | [1] | BOLT;SOCKET | |
| 35. | 424195 | [1] | WASHER | |
| 36. | 425634 | [1] | SEAL;RUBBER | |
| 38. | 425696 | [1] | COVER | |
| 39. | 500048 | [2] | BOLT;SEMS | |
| 42. | 425787 | [1] | COVER | |
| 43. | 426047 | [1] | RUBBER | |
