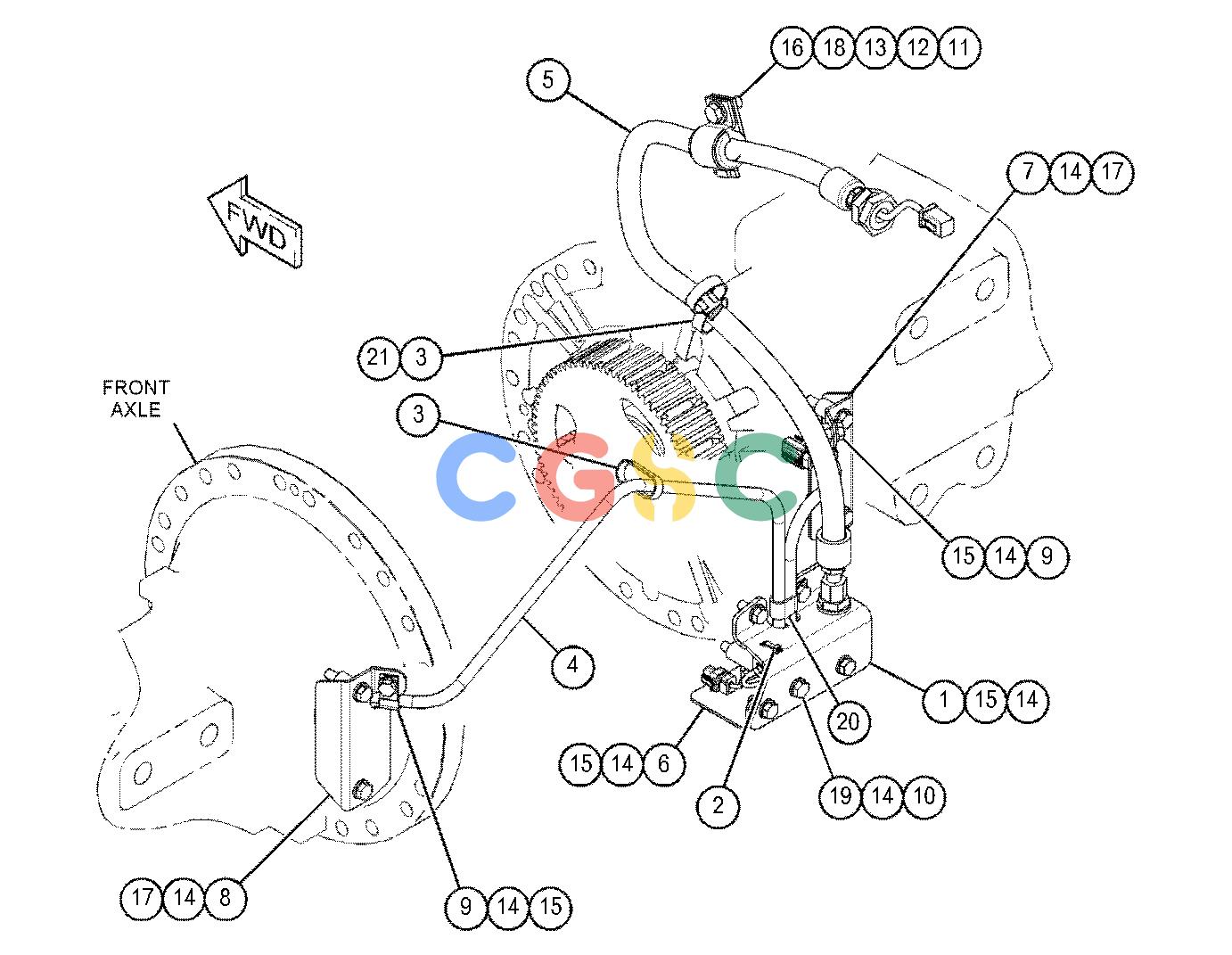

卡特零件查询（725C2） 465-2465: WIRING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 467-3121 | [1] | PLATE | |
| 2. | 3S-2093 | [1] | STRAP-CABLE | |
| 3. | 6U-0455 | [3] | STRAP | |
| 4. | 465-2466Y | [1] | HARNESS AS-SENSOR(FRONT WHEEL SPEED) | |
| 5. | 467-7079Y | [1] | HARNESS AS-SENSOR(TRANSMISSION) | |
| 6. | 487-9859 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 7. | 488-9991 | [1] | PLATE AS | |
| | 2V-9923 | [2] | SPACER(0.5X0.75X1.06-IN THK) | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 8. | 488-9993 | [1] | PLATE AS | |
| | 2V-9923 | [2] | SPACER(0.5X0.75X1.06-IN THK) | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 9. | 263-6342 | [2] | CLIP | |
| 10. | 448-7021 | [1] | SPACER(11.3X19.05X90-MM THK) | |
| 11. | 5P-7464 | [1] | CLIP(SLOT) | |
| 12. | 5P-7465 | [1] | CLIP(TAB) | |
| 13. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 14. | 8T-4121 | [11] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 16. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 17. | 8T-4185M | [4] | BOLT(M10X1.5X50-MM) | |
| 18. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-6685M | [1] | BOLT(M10X1.5X110-MM) | |
| 20. | 9M-4995 | [1] | CLIP | |
| 21. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
