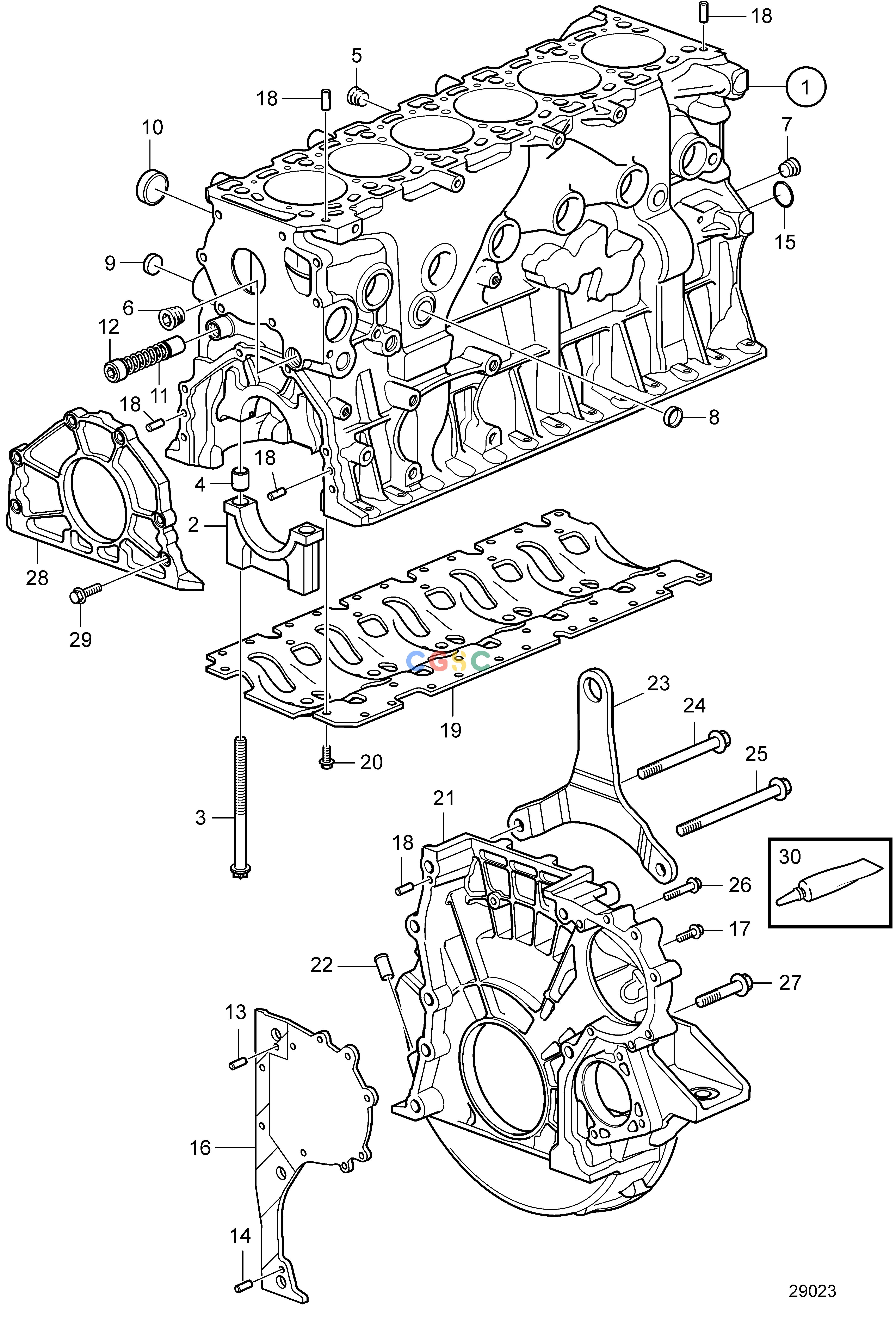

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-EngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
167 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
21384457
|
[14] |
Flange screw
|
|
| 4. |
3584214
|
[14] |
Guide sleeve
|
|
| 5. |
968061
|
[1] |
Plug
|
|
| 6. |
968063
|
[2] |
Plug
|
|
| 7. |
979947
|
[2] |
Plug
|
|
| 8. |
3583447
|
[2] |
Expansion plug
|
|
| 9. |
24426721
|
[6] |
Expansion plug
|
|
| 10. |
24426722
|
[14] |
Expansion plug
|
|
| 11. |
3583079
|
[1] |
Piston cooling valve
|
|
| 12. |
982121
|
[1] |
Plug
|
|
| 13. |
950562
|
[1] |
Pin
|
|
| 14. |
950566
|
[1] |
Pin
|
|
| 15. |
3843507
|
[1] |
O-ring
|
|
| 16. |
3582847
|
[1] |
Plate
|
|
| 17. |
946173
|
[2] |
Flange screw
|
|
| 18. |
950564
|
[5] |
Pin
|
|
| 19. |
3593991
|
[1] |
Frame reinforcement
|
|
| 20. |
985374
|
[34] |
Flange screw
|
|
| 21. |
40005732
|
[1] |
Flywheel housing
|
Replaced by 22635095
|
| 21. |
22635095
|
[1] |
Flywheel housing
|
|
| 22. |
3583622
|
[1] |
Hose connection
|
|
| 23. |
|
|
|
|
| 24. |
984867
|
[1] |
Flange screw
|
|
| 25. |
966368
|
[2] |
Flange screw
|
|
| 26. |
994441
|
[3] |
Flange screw
|
|
| 27. |
984859
|
[5] |
Flange screw
|
|
| 28. |
3582750
|
[1] |
Cap
|
|
| 29. |
946671
|
[6] |
Flange screw
|
|
| 30. |
1161771
|
[1] |
Sealing compound
|
|
