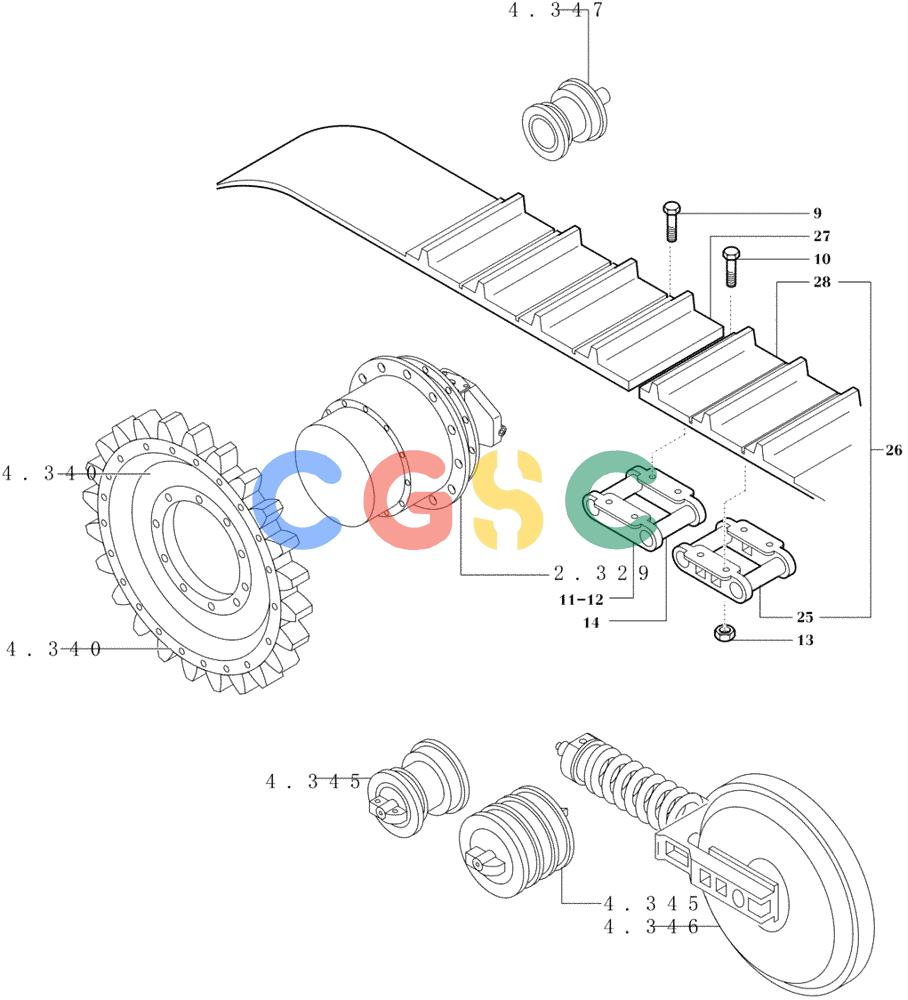

纽荷兰零件查询(DC80) - CRAWLER DOZER (N.A. VERSION) (4/99-) (9.349[01]) - TRACK CHAIN (L=508 MM) DC80 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
919 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 9. | 76590784 | [4] | SCREW | MAC |
| 10. | 76590785 | [152] | SCREW | MAC |
| 11. | 76590786 | [1] | CONNECTING LINK | MAC |
| 12. | 76590787 | [1] | TRACK LINK | MAC |
| 13. | 76590788 | [152] | NUT | MAC |
| 14. | 76593261 | [1] | KIT | MAC |
| 25. | CHAIN | [1] | CHAIN | FOR Superseded by part number: 76590799 |
| 26. | 76590800 | [2] | CHAIN | MAC |
| 27. | 76590801 | [1] | TRACK SHOE | MAC |
| 28. | 76590802 | [38] | TRACK SHOE | MAC |
