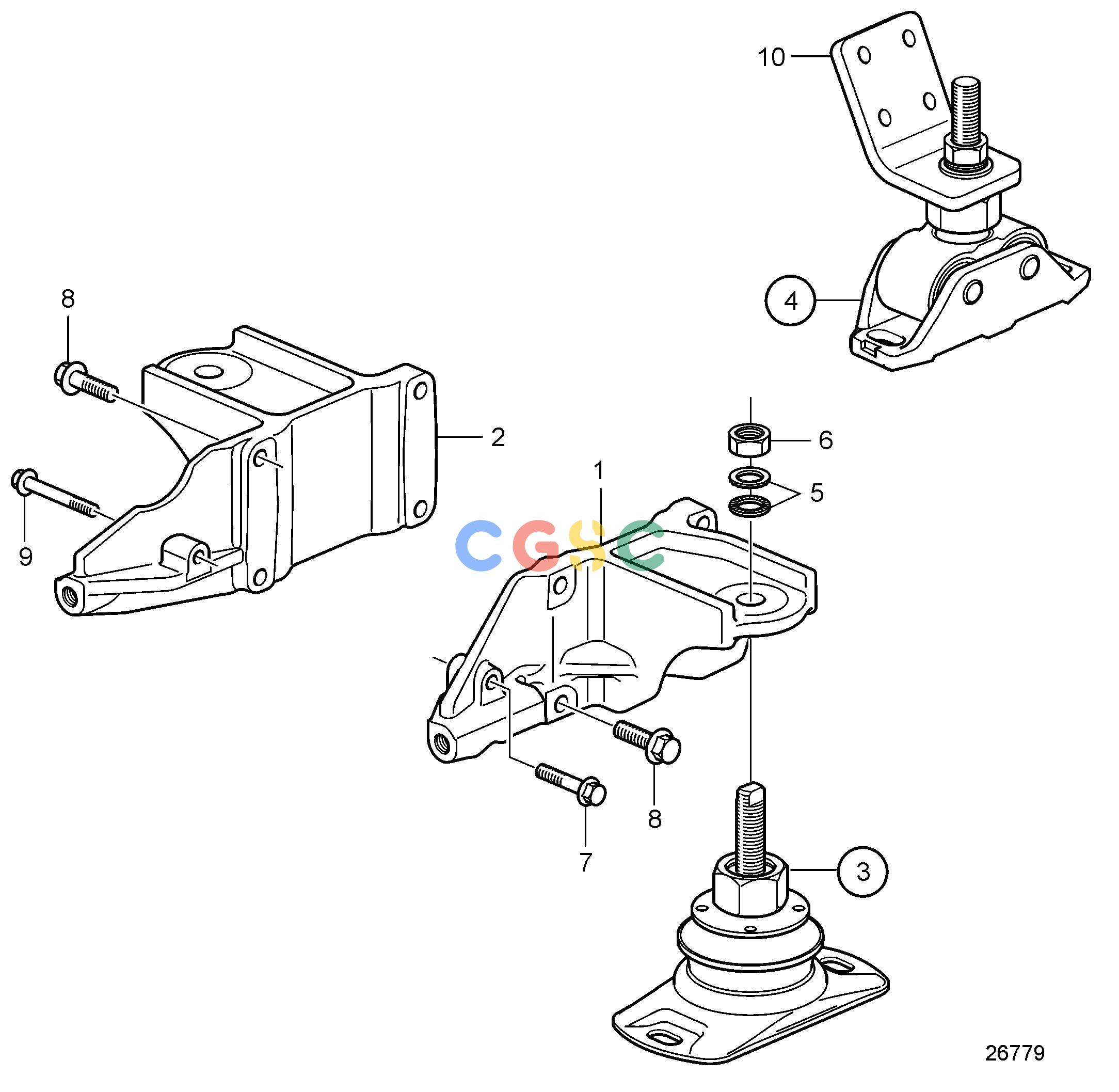

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-EngineEngine Suspension for V-driveEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583516
|
[1] |
Engine bracket
|
|
| 2. |
3807719
|
[1] |
Engine bracket
|
S.B, Front
|
| 3. |
21203504
|
[2] |
Rubber cushion
|
|
| 4. |
3886942
|
[2] |
Rubber cushion
|
V-drive
|
| 5. |
847766
|
[1] |
Lock washer
|
|
| 6. |
955786
|
[1] |
Hexagon nut
|
|
| 7. |
965186
|
[1] |
Flange screw
|
L=50mm
|
| 8. |
965192
|
[8] |
Flange screw
|
L=40mm
|
| 9. |
965188
|
[1] |
Flange screw
|
L=70mm
|
| 10. |
3583620
|
[2] |
Engine bracket
|
Rear
|
